Info | |
---|---|
order code |
20000526
|
Product Name |

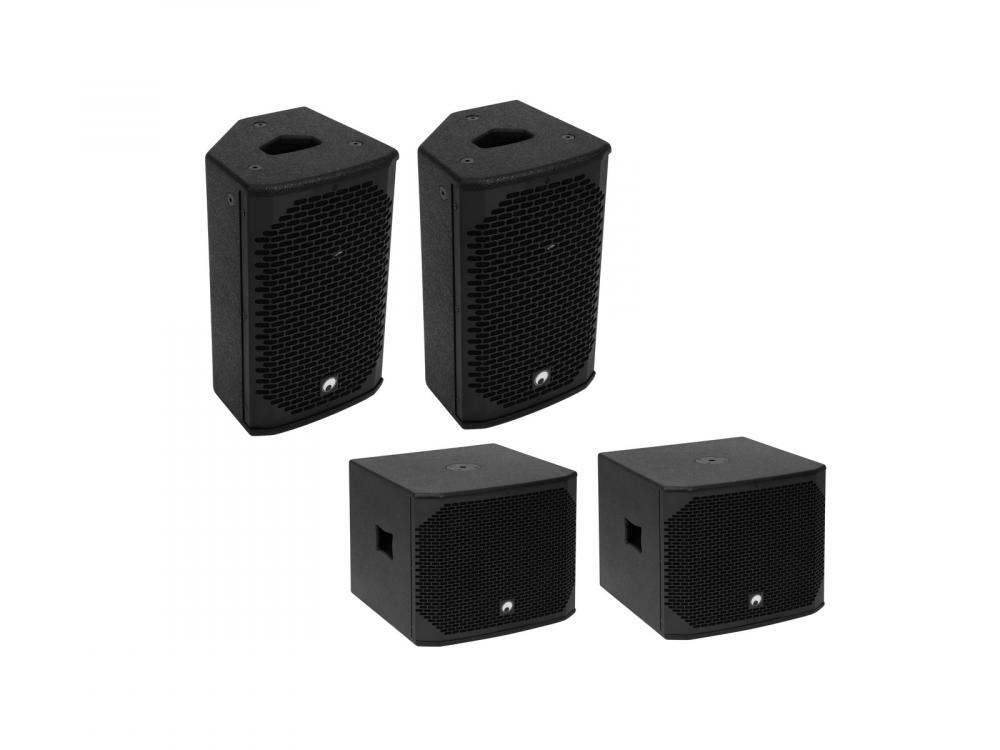

OMNITRONIC PA Set AZX passive S
|
product link | |
EAN |
4026397651270
|
technical overview |
11039036 OMNITRONIC AZX-112 PA Subwoofer 350W Rated power: 350 W RMS Program power: 700 W Connection: 2 Speaker sockets Sensitivity: 93 dB Impedance: 8 ohms Dimensions (H x W x D): 575 x 500 x 450 mm Size of woofer: (12") ca. 30 cm Number of bass-woofer: 1 Pc/Pcs Frequency range: 40 - 250 Hz Weight: 20,10 kg Impedance: 8 Ohm Width: 50 cm Depth: 57,5 cm Height: 45 cm Material: MDF (Medium-density fibreboard) 11039020 OMNITRONIC AZX-208 2-Way Top 100W Rated power: 100 W RMS Program power: 200 W LF speaker: 20 cm bass/mids (8") with 38 mm voice coil HF speaker: 2.5 cm compression driver (1") Connection: 2 x Speaker Sensititvity: 91 dB Frequency range: 65 - 18000 Hz Number of bass-woofer: 1 Pc/Pcs Size of woofer: (8") ca. 20 cm Impedance: 8 Ohm Weight: 9,35 kg Width: 31,5 cm Depth: 31 cm Height: 49 cm Material: MDF (Medium-density fibreboard) |
main features |
11039036 OMNITRONIC AZX-112 PA Subwoofer 350W 12" bassreflex subwoofer with 350 W RMS, 8 ohms -30 cm (12") bass speaker with 63 mm voice coil -Parallel Speaker connectors -M20 metal flange for mounting top speakers -Carrying handles -Housing made of 15 mm MDF -Scratch-resistant lacquer surface -Impact-resistant steel grille with acoustic foam 11039020 OMNITRONIC AZX-208 2-Way Top 100W Passive speaker with 8" woofer, 1" driver and 100 W RMS -2-way bass-reflex system with 20 cm woofer and 2.5 cm titan driver -Speaker connections -Stable MDF housing with protective grille and recessed handle -Dual flange with 0° and 5° tilt angle enables flexible positioning -M10 threaded inserts for suspended installation -Applications: standing, as monitor, on a subwoofer or speaker stand, suspended |
Audio | |
Frequency response, from |
40 Hz
|
Frequency response, to |
250 Hz
|
impedance |
8 ohm
|
Electrical | |
power consumption watt, max |
350.00 W
|
Mechanical | |
weight |
20.10 kg
|
width |
500.00 mm
|
height |
450.00 mm
|
length |
575.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
