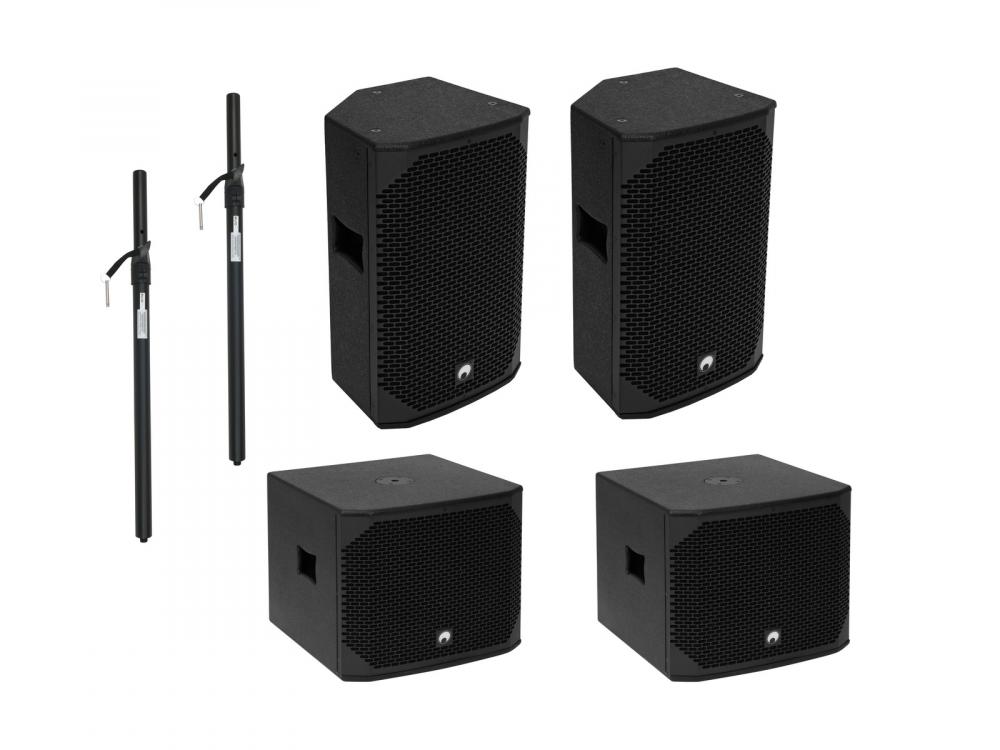

11039042 OMNITRONIC AZX-115A PA Subwoofer active 400W
Power supply: 230 V AC, 50 Hz
Power consumption: 650 W
Amplifier power: 400 W RMS
Signal input: XLR L/R
Parallel output: XLR L/R
High-pass output: XLR L/R
Sensitivity: 94 dB
Crossover frequency: 80-200 Hz
Acoustic loading: Bassreflex
Amplifier: Class D
Dimensions (W x D x H): 600 x 580 x 520 mm
Size of woofer: (15") ca. 38 cm
Number of bass-woofer: 1 Pc/Pcs
Frequency range: 40 - 250 Hz
Weight: 26,35 kg
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Width: 58 cm
Depth: 60 cm
Height: 52 cm
Material: MDF (Medium-density fibreboard)
Power supply: 230 V AC, 50 Hz
11039029 OMNITRONIC AZX-212A 2-Way Top active 250W
Power supply: 230 V AC, 50 Hz
Power consumption: 650 W
Amplifier power: 200 W RMS LF, 50 W RMS HF
LF speaker: 30 cm bass/mids (12") with 50 mm voice coil
HF speaker: 3,5 mm compression driver (1.35")
Input mic/line: combination XLR/6.3 mm jack, bal.
Output line: XLR, bal.
Sensitivity: 95 dB
Frequency range: 55 - 20000 Hz
Number of bass-woofer: 1 Pc/Pcs
Size of woofer: (12") ca. 30 cm
Weight: 19,15 kg
Width: 43 cm
Depth: 40,5 cm
Height: 67 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Material: MDF (Medium-density fibreboard)
Power supply: 230 V AC, 50 Hz
60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20
Maximum load: 30 kg
Adjustable height: 75-135 cm
Tube diameter: 41/35 mm
Weight: 1,6 kg
Max. height: 1,35 m
Min. height: 0,75 m
Maximum carrying capacity: 30 kg
Color: Black
Attachment: Flange system 35mm

11039042 OMNITRONIC AZX-115A PA Subwoofer active 400W

Active 15" PA bassreflex subwoofer, 400 W
-38 cm (15") bass speaker with 63 mm voice coil
-Class D amplifier with 400 W
-XLR inputs and parallel outputs L/R
-XLR output L/R with high-pass filter
-Adjustable crossover frequency 80-200 Hz
-Phase reversal switch
-Limiter for overload protection
-Limit, signal and power LED
-M20 metal flange for top speakers
-Carrying handles
-Housing made of 15 mm MDF
-Scratch-resistant lacquer surface
-Impact-resistant steel grille with acoustic foam
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)

11039029 OMNITRONIC AZX-212A 2-Way Top active 250W

Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS
-2-way bassreflex enclosure with 30 cm woofer and 3.5 cm titanium driver
-Class D biamp amplifier (LF 200 W, HF 50 W)
-Balanced signal input XLR/6.3 mm jack, switchable mic/line
-XLR output for linking further active speaker systems
-Master control with 2-band EQ
-HF adjustment -4 dB, -2 dB, 0 dB
-Limiter for overload protection
-Limit, signal and power LED
-Housing made of 15 mm MDF
-Scratch-resistant lacquer surface
-Carrying handles
-Impact-resistant steel grille with acoustic foam
-M10 threaded inserts for suspended installation
-Dual flange with 0° and 5° tilt angle enables flexible positioning
-Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
-Master equalizer: 1 x 2 band tone control
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)

60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20

Variable distance tube with M20 thread, height adjustable 75-135 cm
-Connecting tube for satellite systems
-Height adjustable 75-135 cm
-Locking screw and bolt
-M20 thread
-Powder-coated steel version
-Color: black
-Thread: M20
