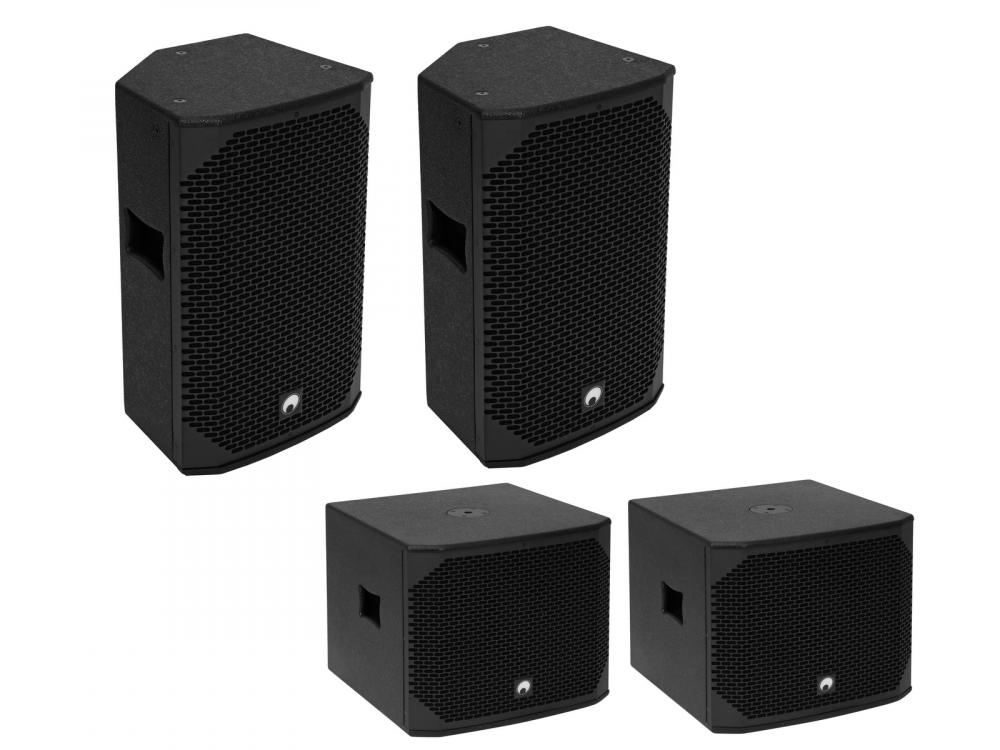

OMNITRONIC PA Set AZX passive XL

OMNITRONIC

1

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC PA Set AZX passive XL

Info
order code
20000531
Product Name
OMNITRONIC PA Set AZX passive XL
product link
EAN
4026397651324
technical overview
11039032 OMNITRONIC AZX-215 2-Way Top 300W
Rated power: 300 W RMS
Program power: 600 W
LF speaker: 38 cm bass/mids (15") with 76 mm voice coil
HF speaker: 4.5 cm compression driver (1.75")
Connection: 2 x Speaker
Sensititvity: 94 dB
Frequency range: 50 - 20000 Hz
Number of bass-woofer: 1 Pc/Pcs
Size of woofer: (15") ca. 38 cm
Impedance: 8 Ohm
Weight: 23,40 kg
Width: 48,5 cm
Depth: 48 cm
Height: 75 cm
Material: MDF (Medium-density fibreboard)
11039044 OMNITRONIC AZX-118 PA Subwoofer 450W
Rated power: 450 W RMS
Program power: 900 W
Connection: 2 Speaker sockets
Sensitivity: 95 dB
Impedance: 8 ohms
Dimensions (H x W x D): 665 x 665 x 590 mm
Size of woofer: (18") ca. 46 cm
Number of bass-woofer: 1 Pc/Pcs
Frequency range: 40 - 250 Hz
Impedance: 8 Ohm
Weight: 31,30 kg
Width: 66,5 cm
Depth: 66,5 cm
Height: 59 cm
Material: MDF (Medium-density fibreboard)
main features
11039032 OMNITRONIC AZX-215 2-Way Top 300W

Passive speaker with 15" woofer, 1.75" driver and 300 W RMS
-2-way bass-reflex system with 38 cm woofer and 4.5 cm titan driver
-Speaker connections
-Stable MDF housing with protective grille and handles
-Dual flange with 0° and 5° tilt angle enables flexible positioning
-M10 threaded inserts for suspended installation
-Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

11039044 OMNITRONIC AZX-118 PA Subwoofer 450W

18" bassreflex subwoofer with 450 W RMS, 8 ohms
-46 cm (18") bass speaker with 63 mm voice coil
-Parallel Speaker connectors
-M20 metal flange for mounting top speakers
-Carrying handles
-Housing made of 15 mm MDF
-Scratch-resistant lacquer surface
-Impact-resistant steel grille with acoustic foam
Audio
Frequency response, from
50 Hz
Frequency response, to
20000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
300.00 W
Mechanical
weight
23.40 kg
width
485.00 mm
height
750.00 mm
length
480.00 mm
enclosure material
MDF (Medium-density fibreboard)
