Info | |
---|---|
order code |
20000550
|
Product Name |

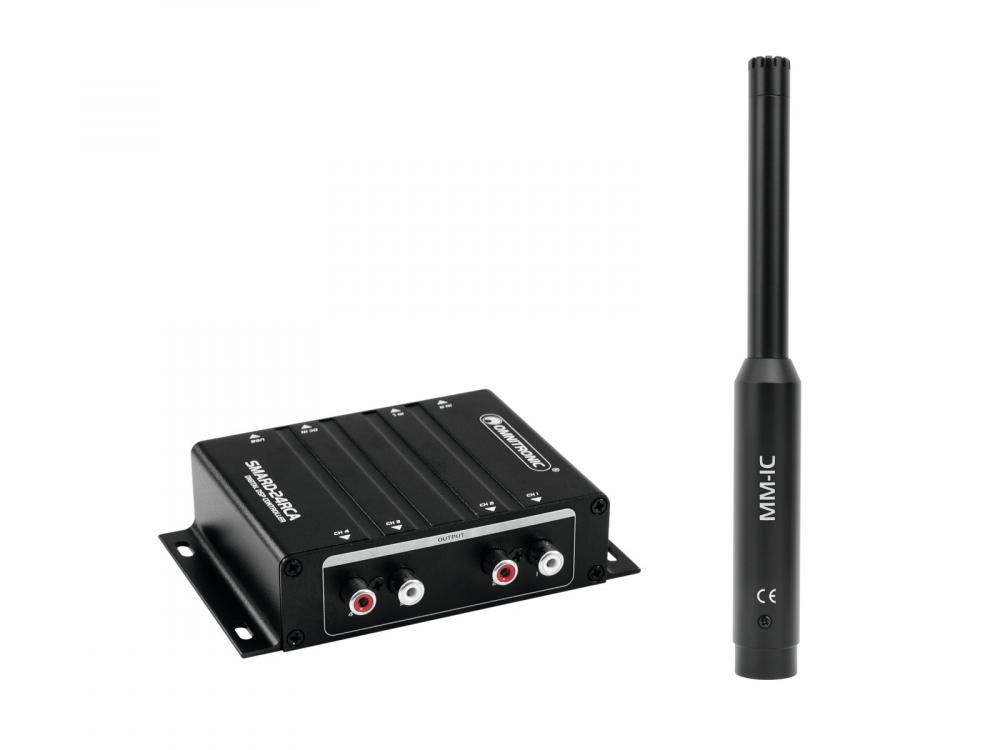

OMNITRONIC Set SMARD-24RCA + MIC MM-1C
|
product link | |
EAN |
4026397653366
|
technical overview |
10356301 OMNITRONIC SMARD-24RCA Digital DSP Controller Power supply: USB port or 6 V DC, 500 mA via power adapter (accessory) Inputs: RCA Maximum input level: +9 dBu Dynamic range: 113 dBA Outputs: RCA Maximum output level: +6 dBu Dynamic range: 103 dBA Sampling frequency: 48 kHz Filter types: Bessel, Butterworth or Linkwitz-Riley Slopes: 6, 12, 18 or 24 dB/octave Crossover frequency: 20-20000 Hz Delay: 0-10 msec Communication: micro USB Dimensions (WxHxD): 100 x 100 x 130 mm Weight: 0,3 kg Frequency range: 20 - 20000 Hz Height: 3,1 cm Depth: 10 cm Width: 13 cm Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) 13030919 OMNITRONIC MIC MM-1C Condenser Measurement Mic Type: Condenser (back electret) Operating principle: Pressure gradient, FET preamp Polar pattern: omnidirectional Sensitivity: -37 dB (±3 dB) Nominal impedance: 200 ohms Load impedance: 1000 ohms Maximum SPL: 134 dB (THD S/N ratio: 76 dB Phantom power: 9-52 V DC Current consumption: 3 mA Connection: 3-pin XLR Dimensions: Ø 13/21 x 192 mm Phantom power: 9 V - 52 V DC Weight: 0,066 kg Polar pattern: Omnidirectional Frequency range: 20 - 20000 Hz Diameter: 13 cm Length: 19,2 cm |
main features |
10356301 OMNITRONIC SMARD-24RCA Digital DSP Controller Digital signal processor (DSP) in miniature format, software included -Flexible routing configurations for all standard mono and stereo output operating modes -2 analog RCA inputs -4 analog RCA outputs -10-band parametric EQ per input and output -Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass -Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave -The intelligent software for PC and Mac allows convenient control with a computer -Up to 50 user presets storable in the device via software -Up to 10 ms signal delay adjustable for the inputs and outputs -Limiter and compressor for each input and output -Switchable phase per output (180°) -Lock function for protecting the program settings -24-bit AD/DA converter -48 kHz sampling rate -FIR filters -Real-Time-Analyzer function (RTA) -Incl. control software for programing and remote control via computer through micro USB interface -Wall mounting -Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better -DSP: Digital signal processor FIR Filter -PC connect: DXO Software via USB Firmware can be updated -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) 13030919 OMNITRONIC MIC MM-1C Condenser Measurement Mic Precise measuring microphone with flat frequency response -Electret measuring microphone for measuring systems and audio recordings -Designed for measuring PA systems, speakers and room acoustics -Perfect complement to any real-time analyzer -Flat frequency response for high precision -True omnidirectional pattern -Sturdy all-metal construction and narrow design -Incl. microphone clip, thread adapter (9 mm/3/8") and windscreen -Mute function: No -Polar pattern: Omnidirectional |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Maximum Output Level |
6.00 dBu
|
Dynamic Range |
103.00 dB
|
Electrical | |
external PSU |
yes
|
Mechanical | |
weight |
0.30 kg
|
width |
130.00 mm
|
height |
31.00 mm
|
length |
130.00 mm
|
