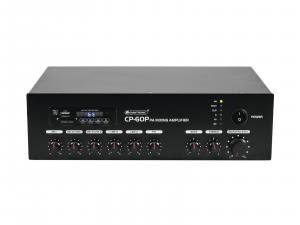

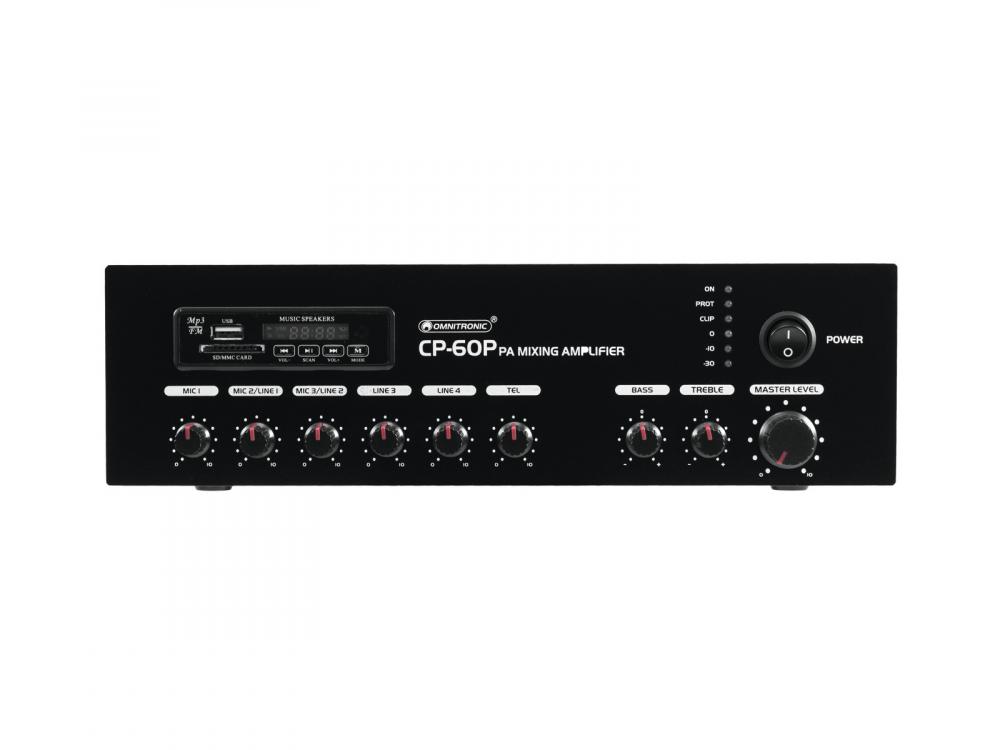

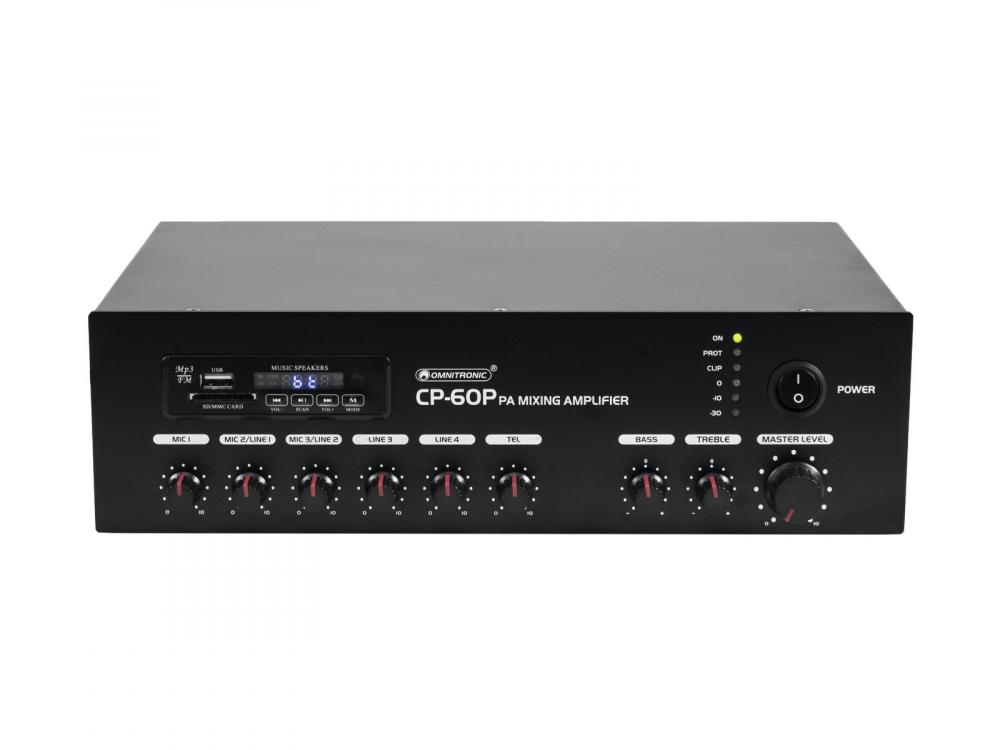

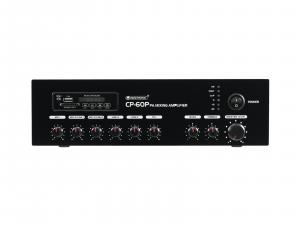

OMNITRONIC CP-60P PA Mixing Amplifier

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC CP-60P PA Mixing Amplifier

Info
order code
80709602
product link
EAN
4026397614787
Product Name
OMNITRONIC CP-60P PA Mixing Amplifier
technical overview
Power supply: 230 V AC, 50 Hz or 24 V DC emergency power battery

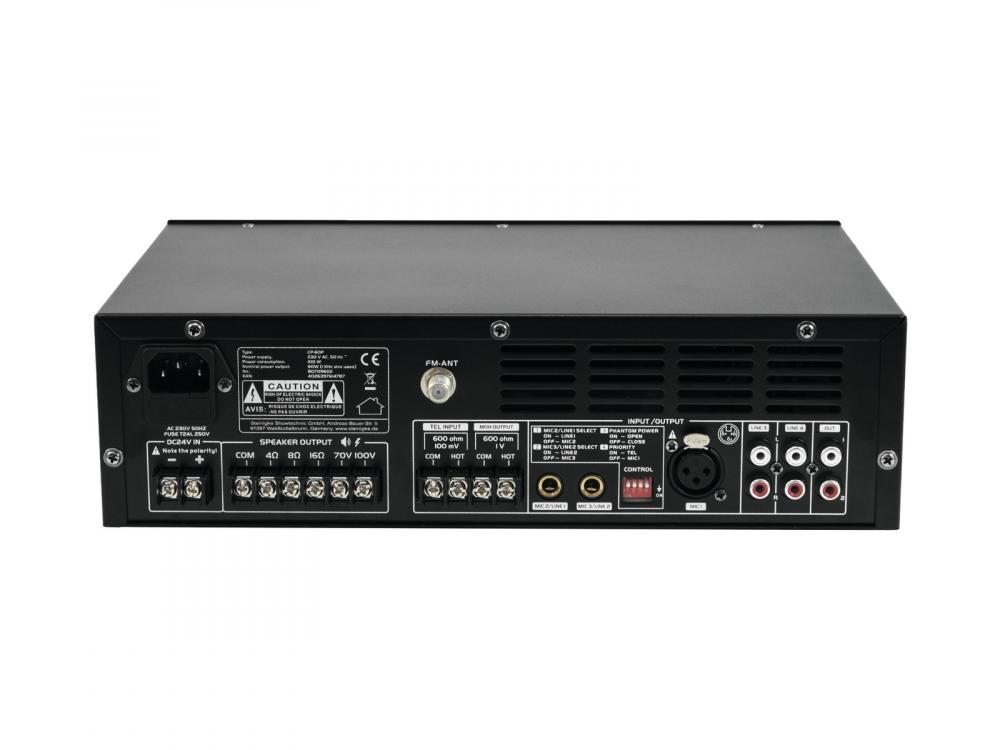

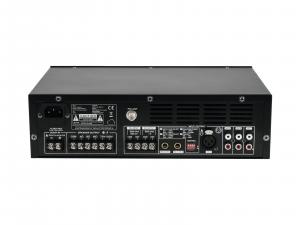

Outputs:
Speakers: 70/100 V or 4-16 ohms (screw connectors)
Line: 0.775 V (RCA)
Inputs:
Mic 1: 5-8 mV/600 ohms (XLR)
Mic 2, 3: 5-8 mV/600 ohms (6.3 mm jack, unbal.)
Line 1, 2: 150-470 mV, 10 ohms (RCA)
Tel., MOH: screw connectors
S/N ratio: >85 dB (line), >75 dB (mic)
THD:
Weight: 4,5 kg
Power consumption: 100 W
Audio player: USB + SD + Bluetooth + FM Radio
Output power: 60 W RMS
Frequency range: 60 - 15000 Hz
Height: 9,3 cm
Depth: 23,8 cm
Width: 32 cm
Impedance: 100 V ELA
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
main features
PA mono mixing amplifier with audio player and Bluetooth, 60 watts
-Compact PA mono mixing amplifier 1 x 30 W (CP-30P), 1 x 60 W (CP-60P), 1 x 120 W (CP-120P)
-Built-in audio player with Bluetooth receiver and IR remote control
-Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
-SD card slot and USB input
-FM tuner with auto scan
-Mic 1 (XLR) with phantom power and priority circuit
-Mic 2 and 3 (jack) switchable mic/line
-2 aux inputs (RCA) with separate level controls
-1 telephone input with priority and MOH circuit (Music on Hold) for telephone systems with audio output
-1 line output (RCA)
-PA outputs for 70 V or 100 V PA speakers
-PA outputs for low-impedance speakers (4-16 ohms)
-Treble and bass and master controls for the output signal
-4-fold LED level display
-Protection circuits with LED indication: overload, short circuit, clip limiter, overheat
-Fan-cooled
-Mains operation and 24 V emergency power operation
-Compact desktop console
-Master equalizer: 1 x 2 band tone control Mono

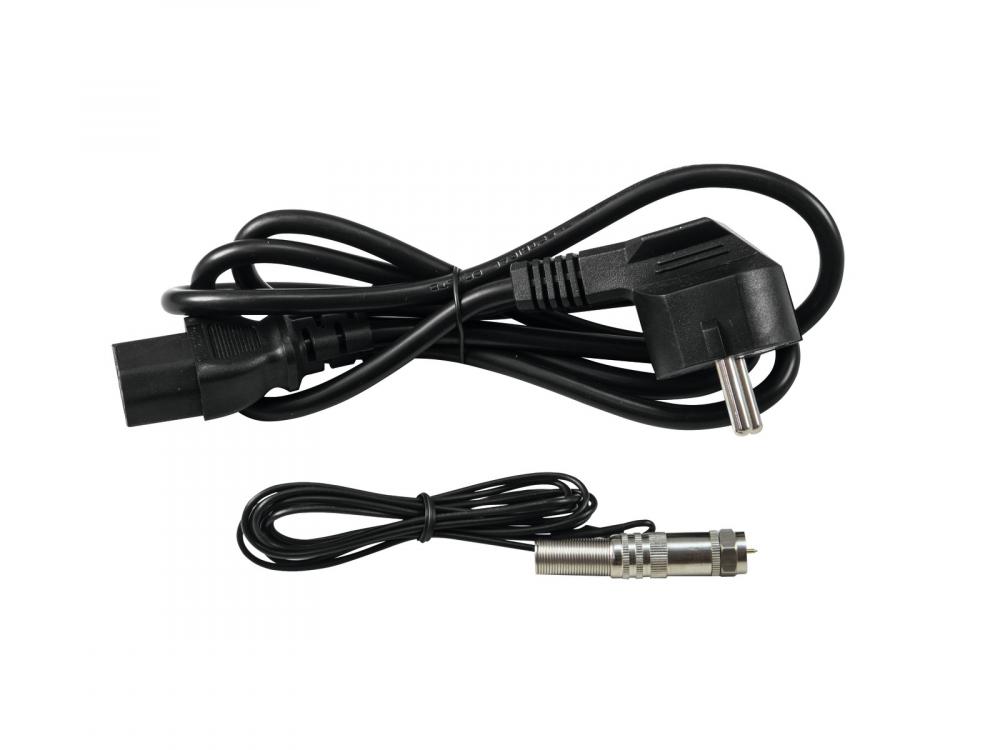

-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)

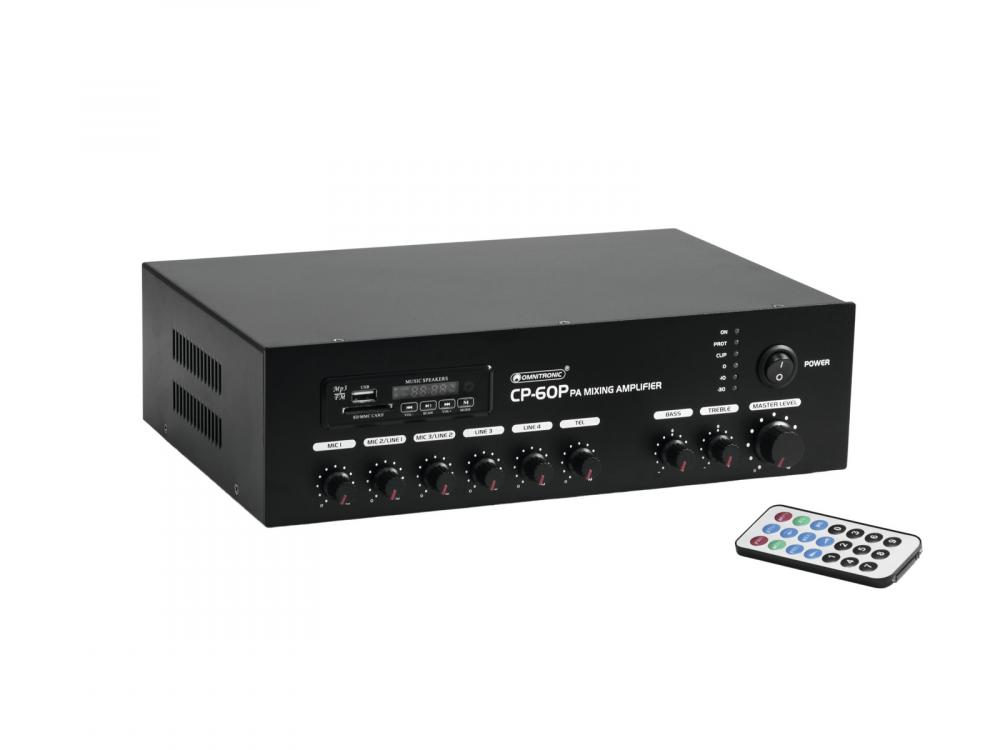

-Control: IR remote control (provided)
Audio
Frequency response, from
60 Hz
Frequency response, to
15000 Hz
Nominal power - RMS
60 W
Signal to Noise Ratio
85.00 dB
Electrical
power consumption watt, max
100.00 W
power input connector
IEC-60320 C13/C14
DC Volts, min
24 V
DC Volts, max
24 V
Mechanical
weight
4.50 kg
width
320.00 mm
height
93.00 mm
length
238.00 mm
