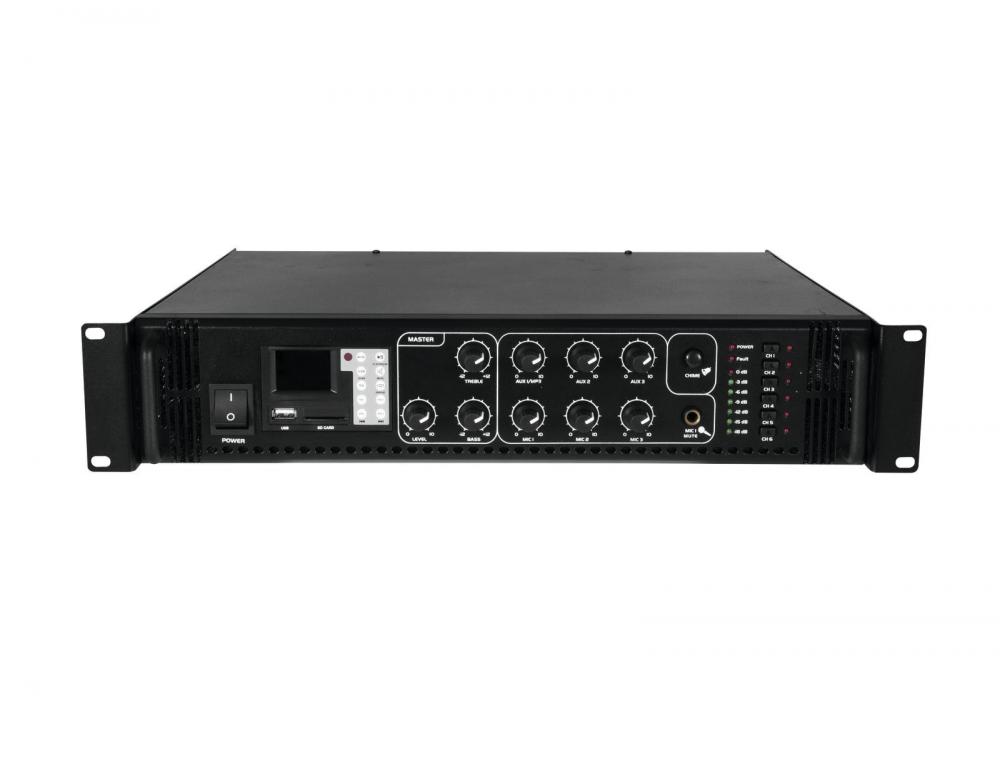

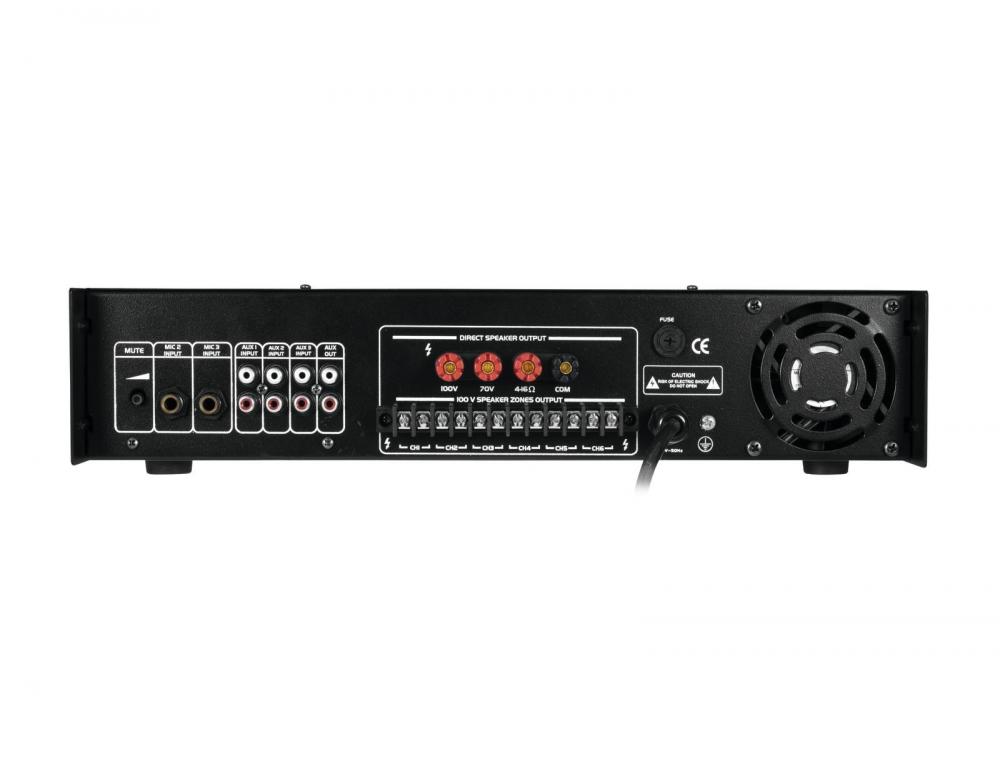

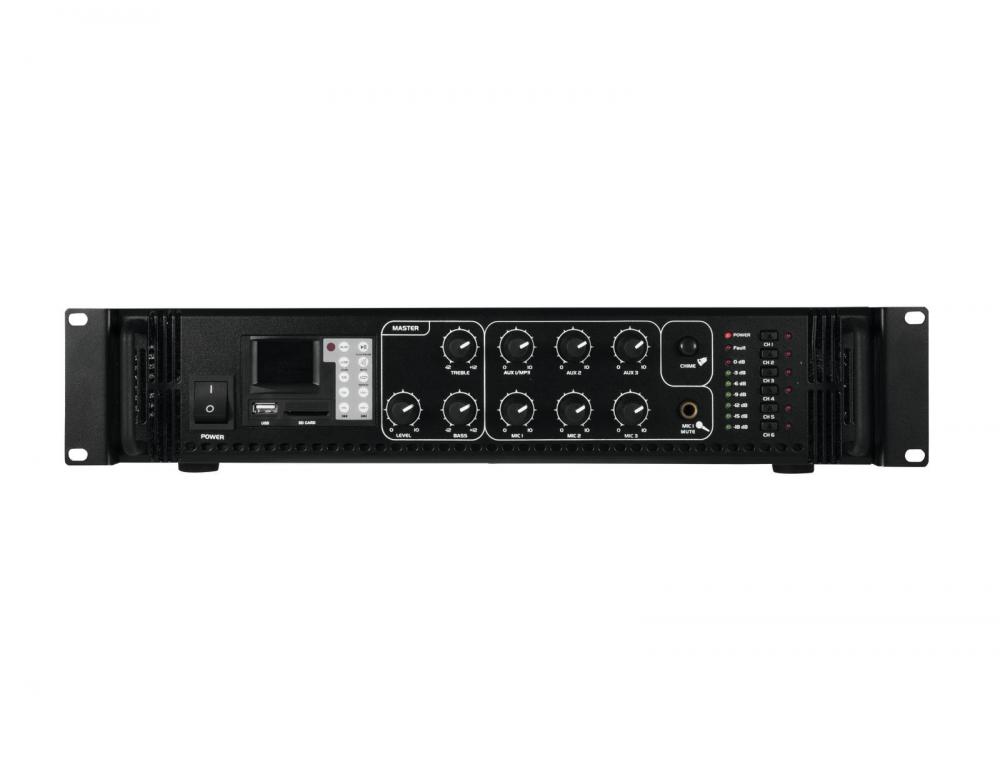

OMNITRONIC MPZ-180.6P PA Mixing Amplifier

OMNITRONIC

1
2
3

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC MPZ-180.6P PA Mixing Amplifier

Info
order code
80709722
product link
EAN
4026397503487
Product Name
OMNITRONIC MPZ-180.6P PA Mixing Amplifier
technical overview
Power supply: 230 V AC, 50 Hz
Output type: 70 V, 100 V or 4-16 ohms
Output current: 2.5 A (70 V), 1.8 A (100 V)
Mic inputs: 5 mV, 600 ohms
Line inputs: 300 mV, 10 kohms
Speaker connectors: Screw connectors, terminal block
Distortion: 0.5 % (1 kHz)
S/N ratio: 85 dB (line), 75 dB (mic)
Playback format audio player: MP3
Available storage media: USB devices and SD(HC) cards up to 32 GB
File system: FAT32
Number of files: max. 999
Impedance: 100 V ELA
Power consumption: 360,00 W
Weight: 10,05 kg
Audio player: USB + SD
Output power: 180 W RMS
Frequency range: 80 - 16000 Hz
Height: 8,9 cm
Depth: 38,5 cm
Width: 48,3 cm
Power connection: Fix Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
main features
6-zone PA mono mixing amplifier, MP3 player & IR remote, zones switchable, 180 watts
-Comfortable control of PA speakers via 6-zone technology
-6 PA zone outputs, independently switchable on the front panel
-Master PA output (70 V and 100 V)
-Output for low-impedance speakers (4-16 ohms)
-MP3 player with IR remote control and LCD with blue backlight
-SD card slot and USB input
-Folder navigation and repeat functions (1, All)
-2 rear microphone inputs (6.3 mm jack, unbal.)
-1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
-All microphone inputs with separate level controls
-3 line inputs (stereo RCA) with separate level controls
-1 line output (stereo RCA)
-Chime, switchable
-Treble and bass control for the output signal
-7-fold LED level display
-Master control for the output signal
-Fan-cooled
-Protection circuits with LED indication: over current, short circuit, turn-on delay
-Rack installation, brackets detachable
-Master equalizer: 1 x 2 band tone control Mono
-Housing design: (19") 48,3 cm rack installation
-Power connection: Fix Power supply cord with safety plug (M)
-Height unit: 2 U
-Control: IR remote control (provided)
Audio
Frequency response, from
80 Hz
Frequency response, to
16000 Hz
Nominal power - RMS
180 W
Signal to Noise Ratio
85.00 dB
Electrical
power consumption watt, max
360.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
power input connector
fixed
Mechanical
weight
10.05 kg
width
483.00 mm
height
89.00 mm
length
385.00 mm
