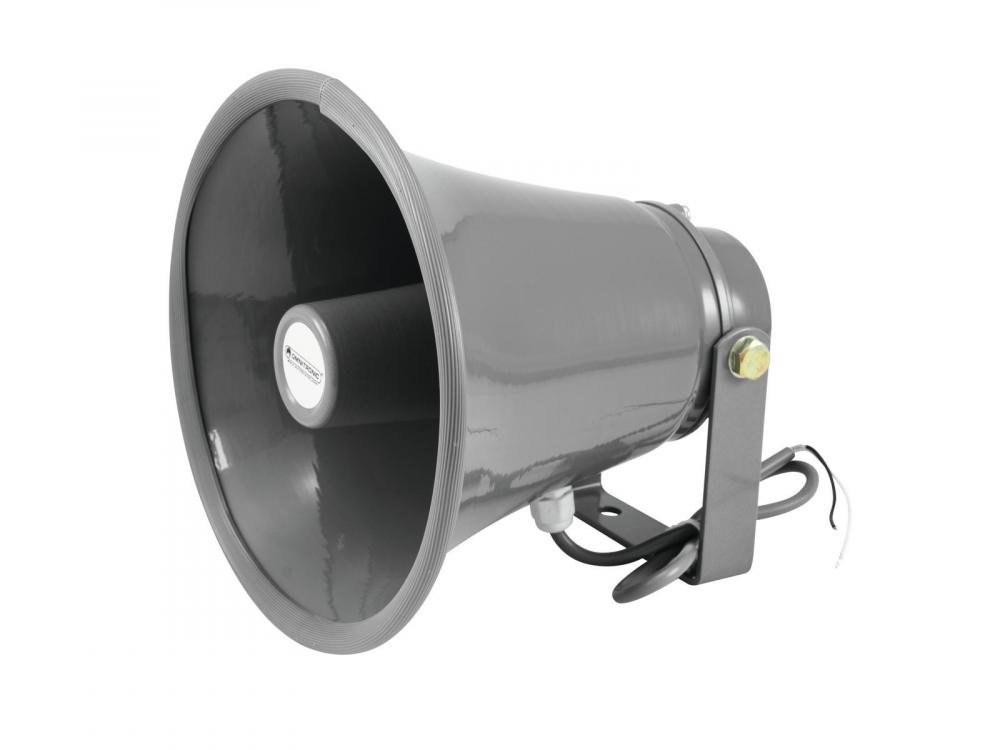

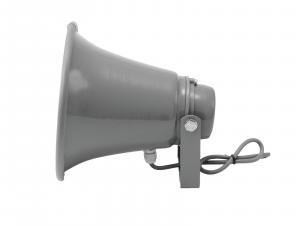

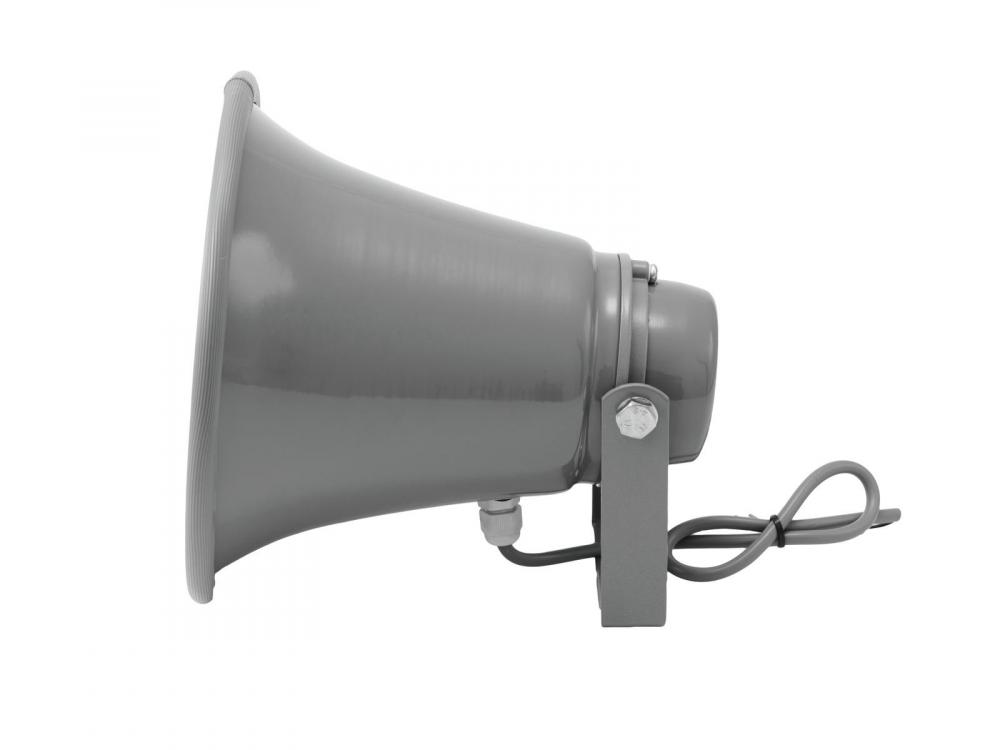

OMNITRONIC NOH-15R PA Horn Speaker

OMNITRONIC

1
2

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC NOH-15R PA Horn Speaker

Info
order code
80710951
Product Name
OMNITRONIC NOH-15R PA Horn Speaker
product link
EAN
4026397327649
technical overview
Impedance: 8 ohms
Sensitivity: 101 dB
Dimensions (D x L): 210 x 210 mm
Weight: 1 kg
Frequency range: 500 - 5000 Hz
Rated power: 15 W RMS
Diameter: 20,6 cm
Height: 20,6 cm
Width: 20,6 cm
Depth: 20 cm
Impedance: 8 Ohm
IP classification: IP44
main features
Horn speaker with 15 W RMS, 8 ohms
-Humidity-proof
-8-ohm speaker system
-Aluminum housing
-Connection via open wires
-Locking possibility at the mounting bracket
Audio
Frequency response, from
500 Hz
Frequency response, to
5000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
15.00 W
IP rating
44
Mechanical
weight
1.00 kg
width
206.00 mm
height
206.00 mm
length
200.00 mm
outer diameter
206 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00080348.pdf
