Info | |
---|---|
tender specification text |

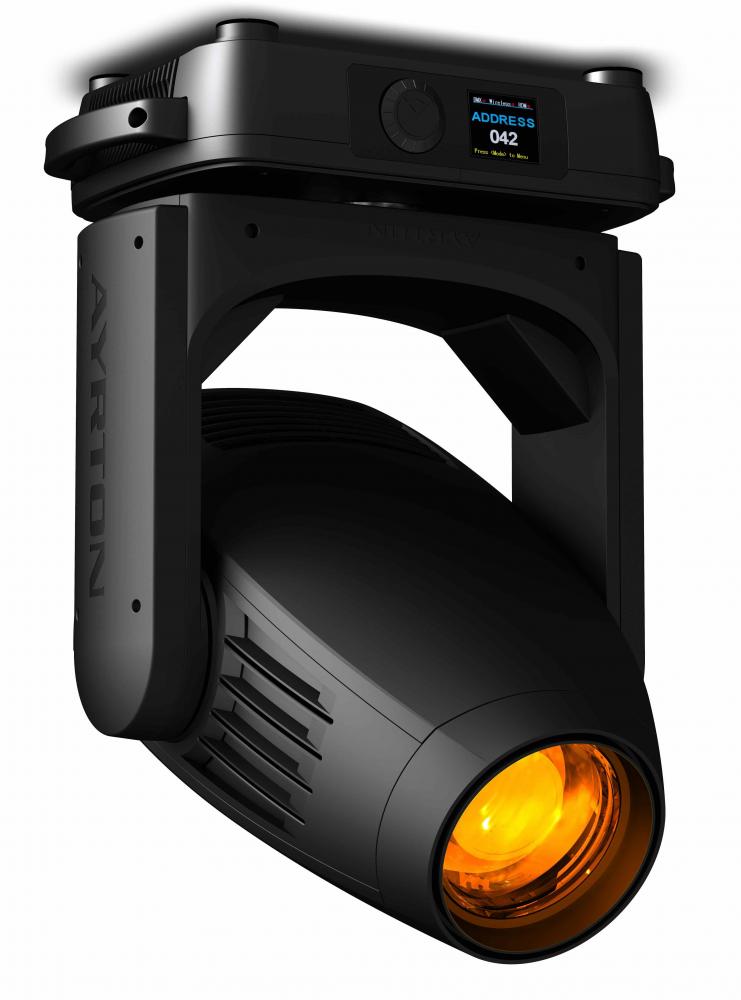

Ghibli is Ayrton’s first LED spot luminaire that is factory-equipped with a framing system designed to offer lighting designers unlimited creative possibilities without any compromise. Fitted with a LED module using a high-output, low-etendue monochromatic light source calibrated at 5700 K, Ghibli delivers light output of 17,000 lumens in a highly compact format. The proprietary optical system, equipped with a 137mm frontal lens, has 13 high-quality lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°. The optics produce an extremely uniform fat beam with no hot spot. The selection of gobos and colours was made in collaboration with lighting designers to meet the needs of the entertainment industry.
GAEB
TEXT
|
product description |
Ghibli is Ayrton’s first LED spot luminaire that is factory-equipped with a framing system designed to offer lighting designers unlimited creative possibilities without any compromise. Fitted with a LED module using a high-output, low-etendue monochromatic light source calibrated at 5700 K, Ghibli delivers light output of 17,000 lumens in a highly compact format. The proprietary optical system, equipped with a 137mm frontal lens, has 13 high-quality lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°. The optics produce an extremely uniform fat beam with no hot spot. The selection of gobos and colours was made in collaboration with lighting designers to meet the needs of the entertainment industry.
|
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
yes
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
34 ch
|
control channels, max |
58 ch
|
RDM |
yes
|
wireless dmx |
yes
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
Electrical | |
power consumption watt, max |
800.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
Mechanical | |
weight |
35.60 kg
|
width |
494.00 mm
|
height |
729.00 mm
|
length |
281.00 mm
|
pan range |
540 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
yes
|
Optical | |
output lumen, max |
17000 lm
|
beam angle/zoom, min |
7.00 °
|
beam angle/zoom, max |
56.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
600.00 W
|
optics/projection type |
Profiler
|
number of separate pixel zones |
1
|
shutter/strobe frequency, max |
25 Hz
|
variable/linear frost |
yes
|
iris min |
15 %
|
iris max |
100 %
|
color temperature, min |
5700 K
|
min CRI |
90 CRI
|
drop-in frosts |
1 pcs
|
lens diameter |
137 mm
|
beam shape |
round
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
2 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
8 pcs
|
number of rotating gobos |
7 pcs
|
beam shapers/framing/barndoors |
yes
|
shaper rotation range degrees |
90 °
|
prism |
yes
|
separate CTO wheel |
yes
|
animation wheels |
1 pcs
|
animation wheel functionality |
360° rotatable
|
CMY colormixing |
dual flag
|
