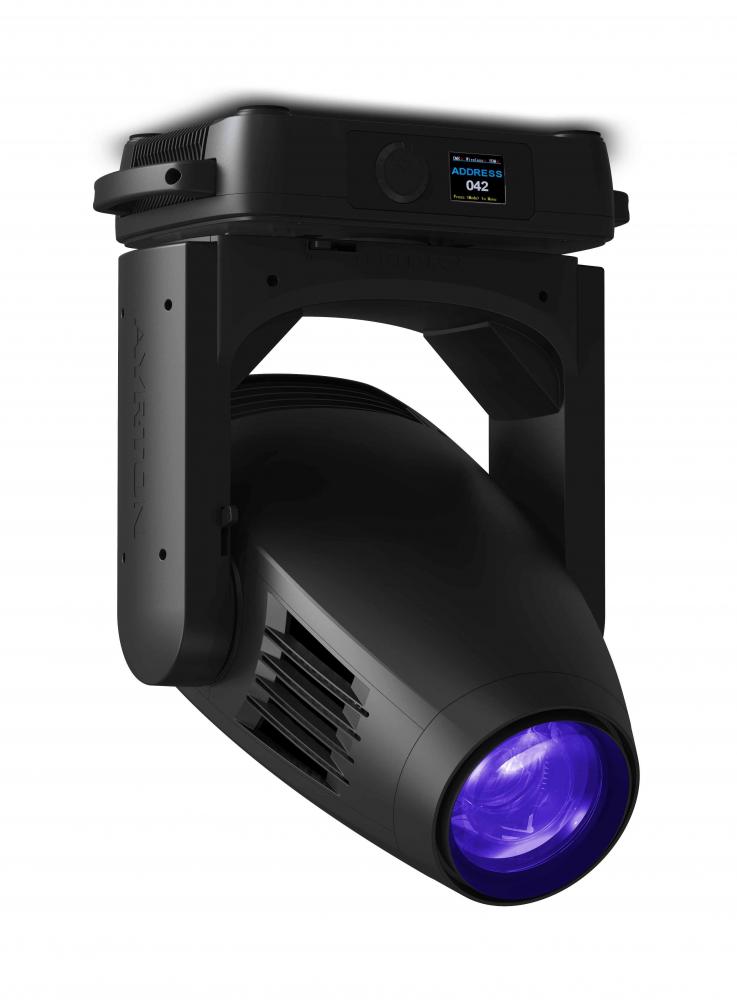

Khamsin-S

AYRTON Lighting GmbH

1

Technical specifications, datasheets, descriptions and tender texts for Khamsin-S

Info
tender specification text
Ayrton has once again pushed the limits with a newly designed “profile” luminaire... Khamsin... squeezing a 750-Watt L.E.D. module into the highly compact Ghibli format, while offering 60% more light output. To make the luminaire this compact, Ayrton has completely redesigned its internal structure by using cast aluminium sides. The size of the cooling system also had to be dramatically reduced and made even more efficient. This high- end luminaire also features a double rotating gobo wheel on a single axis that will allow you to achieve astonishing high-definition morphing effects. Like all luminaires in the Ayrton product line, Khamsin is available in two versions: Khamsin-S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 40,000 lumens and a colour temperature of 6500 K. Devised specifically for applications that require perfect colour reproduction, Khamsin-S is equipped with an entirely new LED module using.
GAEB
TEXT
product description
Ayrton has once again pushed the limits with a newly designed “profile” luminaire... Khamsin... squeezing a 750-Watt L.E.D. module into the highly compact Ghibli format, while offering 60% more light output. To make the luminaire this compact, Ayrton has completely redesigned its internal structure by using cast aluminium sides. The size of the cooling system also had to be dramatically reduced and made even more efficient. This high- end luminaire also features a double rotating gobo wheel on a single axis that will allow you to achieve astonishing high-definition morphing effects. Like all luminaires in the Ayrton product line, Khamsin is available in two versions: Khamsin-S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 40,000 lumens and a colour temperature of 6500 K. Devised specifically for applications that require perfect colour reproduction, Khamsin-S is equipped with an entirely new LED module using.
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
5pin
built-in Switch
yes
Control
max Dimmer resolution
16 bit
control channels, min
39 ch
control channels, max
64 ch
RDM
yes
wireless dmx
yes
protocol-DMX
both
protocol-Artnet
both
Electrical
power consumption watt, max
1150.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
operating temp, min
-10.00 °C
operating temp, max
45.00 °C
built-in dimmer
LED PWM
power input connector
Truecon
cooling
active
Mechanical
weight
39.80 kg
width
494.00 mm
height
778.00 mm
length
280.00 mm
pan range
540 °
tilt range
270 °
color
black
truss mountable
yes
recessed installation
yes
Optical
output lumen, max
40000 lm
beam angle/zoom, min
7.00 °
beam angle/zoom, max
57.00 °
light source
LED
Number of light sources
1 pcs
wattage per light source
750.00 W
optics/projection type
Profiler
number of separate pixel zones
shutter/strobe frequency, max
25 Hz
variable/linear frost
yes
iris min
15 %
iris max
100 %
color temperature, min
6500 K
min CRI
70 CRI
drop-in frosts
2 pcs
lens diameter
158 mm
beam shape
round
fixed/virtual colorwheels
2 pcs
gobowheels total
2 pcs
rotating gobowheels
2 pcs
number of rotating gobos
12 pcs
beam shapers/framing/barndoors
yes
shaper rotation range degrees
90 °
prism
mutiple (2)
separate CTO wheel
yes
animation wheels
1 pcs
animation wheel functionality
360° rotatable
CMY colormixing
dual flag
