Info | |
---|---|
tender specification text |

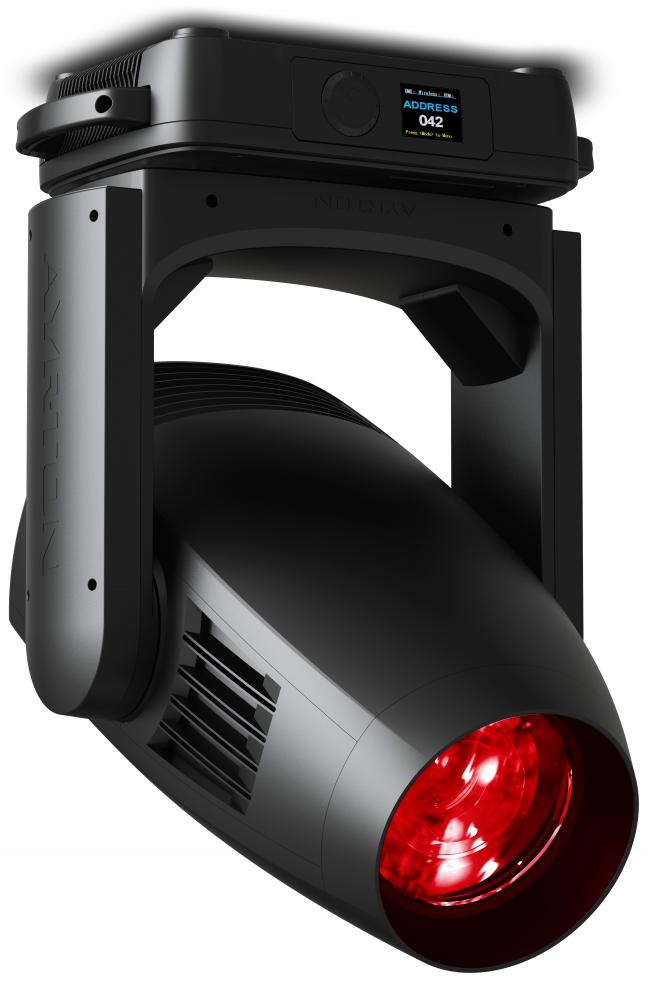

Huracán-X is a marvel of technology that brings exceptional light output to a standard-equipment luminaire in a class by itself – a formidable graphical tool for enhancing creativity. Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán-X produces record output of 50,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, AYRTON has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, HURACÁN-X boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6° to 60°. Huracán-X offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. Huracán-X is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán-X include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán-X is the ultimate graphical tool for applications requiring power and refinement. GAEB TEXT |
product description |
Huracán-X is a marvel of technology that brings exceptional light output to a standard-equipment luminaire in a class by itself – a formidable graphical tool for enhancing creativity. Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán-X produces record output of 50,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, AYRTON has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, HURACÁN-X boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6° to 60°. Huracán-X offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. Huracán-X is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán-X include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán-X is the ultimate graphical tool for applications requiring power and refinement. |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
yes
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
44 ch
|
control channels, max |
70 ch
|
RDM |
yes
|
wireless dmx |
yes
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
Electrical | |
power consumption watt, max |
1400.00 W
|
AC Volts, min |
120 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
0.00 °C
|
operating temp, max |
45.00 °C
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
Mechanical | |
weight |
44.00 kg
|
width |
302.00 mm
|
height |
832.00 mm
|
length |
494.00 mm
|
pan range |
540 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
Optical | |
output lumen, max |
50000 lm
|
beam angle/zoom, min |
6.00 °
|
beam angle/zoom, max |
60.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
1000.00 W
|
optics/projection type |
Profiler
|
shutter/strobe frequency, max |
25 Hz
|
iris min |
15 %
|
iris max |
100 %
|
color temperature, min |
2800 K
|
color temperature, max |
15000 K
|
min CRI |
70 CRI
|
drop-in frosts |
2 pcs
|
max CRI |
85 CRI
|
lens diameter |
178 mm
|
out lumen in silent mode. Max |
42250 lm
|
beam shape |
round
|
gobowheels total |
2 pcs
|
rotating gobowheels |
2 pcs
|
number of rotating gobos |
14 pcs
|
beam shapers/framing/barndoors |
yes
|
shaper rotation range degrees |
90 °
|
prism |
mutiple (2)
|
animation wheels |
2 pcs
|
animation wheel functionality |
continous rotation
|
CMY colormixing |
dual flag
|
