Info | |
---|---|
tender specification text |

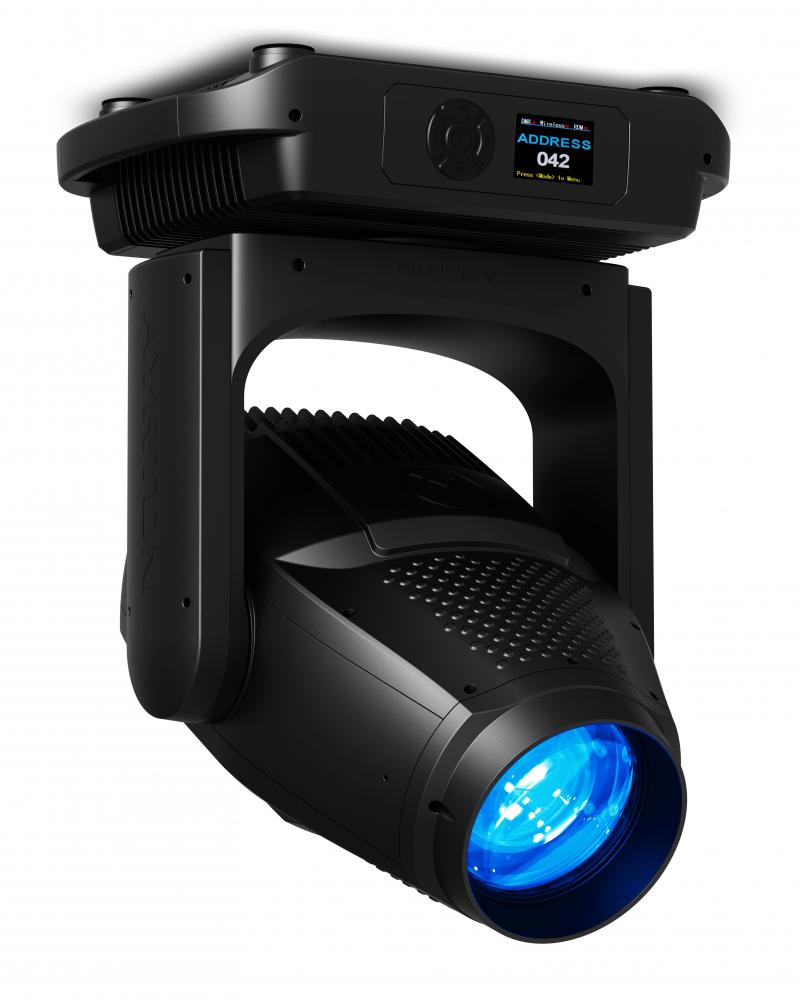

Perseo-S is the first compact multi-function luminaire with an IP65 enclosure rating developed by Ayrton for intensive outdoor use. Equipped with a new 500 W ultra-compact monochromatic LED source calibrated at 8000 K, it can deliver metallic white light with an output of 27,000 lumens. Ayrton has specifically developed the optics in Perseo-S to achieve an optimal resolution-to-performance-to-efficiency ratio. They allow perfect image reproduction and significant improvement from distortion caused by the shutter blades with wide zoom. The optics produce a highly uniform flat beam with no hot spot, achieving a perfect colour mix regardless of the colour combination selected. Fitted with a 148 mm frontal lens, this proprietary system has 13 lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°. Ayrton has endowed this next generation luminaire with a new minimalist design in lighter weight die-cast aluminium, incorporating full weather-proofing features that ensure easy accessibility. For greater efficiency, Perseo-S is provided with a highly effective phase-change liquid cooling system fitted with six submersible fans located outside the watertight enclosure. The ultimate in versatility, designed for multiple outdoor and indoor applications, Perseo-S boasts feature-rich standard equipment including a subtractive CMY colour mixing system combined with a variable CTO and a wheel with six complementary colours that produces an infinite palette of vivid pastels and saturated colours. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The image section includes 18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eleven positions. The effects section includes a continuous dynamic effects wheel; a 15-blade iris diaphragm; two frost filters, one soft edge, one hard edge; and two rotating prisms, one circular with 5 facets and one linear with 4 facets. Perseo-S presents a sleeker, updated, industrial design, with perfectly straightened yoke arms, a minimalist base and a new water-resistant menu navigation system. Perseo-S can be controlled by DMX-RDM, ArtNet™ or a wireless link using CRMX TiMo RDM from LumenRadio™. GAEB TEXT |
product description |
Perseo-S is the first compact multi-function luminaire with an IP65 enclosure rating developed by Ayrton for intensive outdoor use. Equipped with a new 500 W ultra-compact monochromatic LED source calibrated at 8000 K, it can deliver metallic white light with an output of 27,000 lumens. Ayrton has specifically developed the optics in Perseo-S to achieve an optimal resolution-to-performance-to-efficiency ratio. They allow perfect image reproduction and significant improvement from distortion caused by the shutter blades with wide zoom. The optics produce a highly uniform flat beam with no hot spot, achieving a perfect colour mix regardless of the colour combination selected. Fitted with a 148 mm frontal lens, this proprietary system has 13 lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°. Ayrton has endowed this next generation luminaire with a new minimalist design in lighter weight die-cast aluminium, incorporating full weather-proofing features that ensure easy accessibility. For greater efficiency, Perseo-S is provided with a highly effective phase-change liquid cooling system fitted with six submersible fans located outside the watertight enclosure. The ultimate in versatility, designed for multiple outdoor and indoor applications, Perseo-S boasts feature-rich standard equipment including a subtractive CMY colour mixing system combined with a variable CTO and a wheel with six complementary colours that produces an infinite palette of vivid pastels and saturated colours. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The image section includes 18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eleven positions. The effects section includes a continuous dynamic effects wheel; a 15-blade iris diaphragm; two frost filters, one soft edge, one hard edge; and two rotating prisms, one circular with 5 facets and one linear with 4 facets. Perseo-S presents a sleeker, updated, industrial design, with perfectly straightened yoke arms, a minimalist base and a new water-resistant menu navigation system. Perseo-S can be controlled by DMX-RDM, ArtNet™ or a wireless link using CRMX TiMo RDM from LumenRadio™. |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
yes
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
38 ch
|
control channels, max |
62 ch
|
RDM |
yes
|
wireless dmx |
yes
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
Electrical | |
power consumption watt, max |
900.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
120 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
65
|
operating temp, max |
45.00 °C
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
power output connector |
Truecon
|
Mechanical | |
weight |
38.80 kg
|
width |
329.00 mm
|
height |
710.00 mm
|
length |
490.00 mm
|
pan range |
270 °
|
tilt range |
540 °
|
color |
black
|
truss mountable |
yes
|
Optical | |
output lumen, max |
27000 lm
|
beam angle/zoom, min |
7.00 °
|
beam angle/zoom, max |
58.00 °
|
light source |
LED
|
shutter/strobe frequency, max |
25 Hz
|
iris min |
15 %
|
iris max |
100 %
|
color temperature, min |
2700 K
|
color temperature, max |
7000 K
|
min CRI |
70 CRI
|
drop-in frosts |
2 pcs
|
lens diameter |
148 mm
|
beam shape |
round
|
gobowheels total |
2 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
11 pcs
|
number of rotating gobos |
7 pcs
|
beam shapers/framing/barndoors |
yes
|
separate CTO wheel |
dual flag
|
animation wheels |
1 pcs
|
animation wheel functionality |
continous rotation
|
CMY colormixing |
dual flag
|
