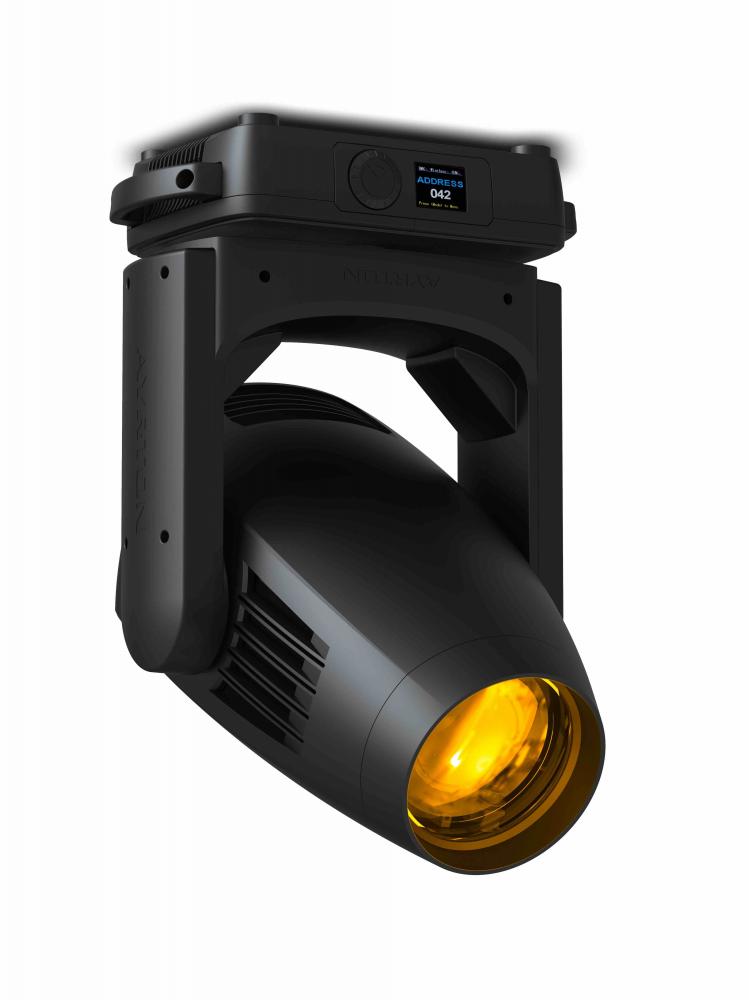

Levante-S

AYRTON Lighting GmbH

1

Technical specifications, datasheets, descriptions and tender texts for Levante-S

Info
tender specification text
Ayrton now introduces Levante, a dramatically miniaturised version of the Bora wash light, and using the same radical concept, has endowed it with outstanding performance capabilities in the confines of an ultra-compact format. Levante is a marvel of technology that will attract the most demanding lighting designers. The “S” version, weighing only 22 kg, can deliver light output greater than 20,000 lumens while consuming only 300 Watts. Fitted with a spherical frontal 138 mm lens, the proprietary optical system, using 13 lenses and developed specifically for wash- type applications, features a zoom ratio of over a 9:1 and an impressive zoom range from 6.3° to 58°. The optics produce an extremely uniform flat beam with no hot spot, ensuring a perfect colour mix regardless of the colour combination selected. Ayrton has created a wash luminaire that can actually sculpture light and added a high-transmission diffusion filter to the zoom lens.
GAEB
TEXT
product description
Ayrton now introduces Levante, a dramatically miniaturised version of the Bora wash light, and using the same radical concept, has endowed it with outstanding performance capabilities in the confines of an ultra-compact format. Levante is a marvel of technology that will attract the most demanding lighting designers. The “S” version, weighing only 22 kg, can deliver light output greater than 20,000 lumens while consuming only 300 Watts. Fitted with a spherical frontal 138 mm lens, the proprietary optical system, using 13 lenses and developed specifically for wash- type applications, features a zoom ratio of over a 9:1 and an impressive zoom range from 6.3° to 58°. The optics produce an extremely uniform flat beam with no hot spot, ensuring a perfect colour mix regardless of the colour combination selected. Ayrton has created a wash luminaire that can actually sculpture light and added a high-transmission diffusion filter to the zoom lens.
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
5pin
built-in Switch
no
Control
max Dimmer resolution
16 bit
control channels, min
33 ch
control channels, max
52 ch
RDM
yes
wireless dmx
yes
protocol-DMX
both
protocol-Artnet
no
Electrical
power consumption watt, max
550.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
operating temp, min
-10.00 °C
operating temp, max
45.00 °C
built-in dimmer
LED PWM
power input connector
Truecon
cooling
active
power output connector
Truecon
Mechanical
weight
22.20 kg
width
365.00 mm
height
591.00 mm
length
212.00 mm
pan range
540 °
tilt range
270 °
color
black
truss mountable
yes
recessed installation
yes
Optical
output lumen, max
20000 lm
beam angle/zoom, min
7.00 °
beam angle/zoom, max
58.00 °
light source
LED
Number of light sources
1 pcs
wattage per light source
300.00 W
optics/projection type
Washlight
number of separate pixel zones
shutter/strobe frequency, max
25 Hz
variable/linear frost
yes
iris min
15 %
iris max
100 %
color temperature, min
6500 K
min CRI
70 CRI
drop-in frosts
1 pcs
lens diameter
138 mm
beam shape
round
fixed/virtual colorwheels
1 pcs
gobowheels total
1 pcs
rotating gobowheels
1 pcs
number of fixed gobos
7 pcs
number of rotating gobos
7 pcs
beam shapers/framing/barndoors
yes
shaper rotation range degrees
90 °
prism
no
separate CTO wheel
dual flag
CMY colormixing
dual flag
