Bora-TC

AYRTON Lighting GmbH

1

Technical specifications, datasheets, descriptions and tender texts for Bora-TC

Info
tender specification text

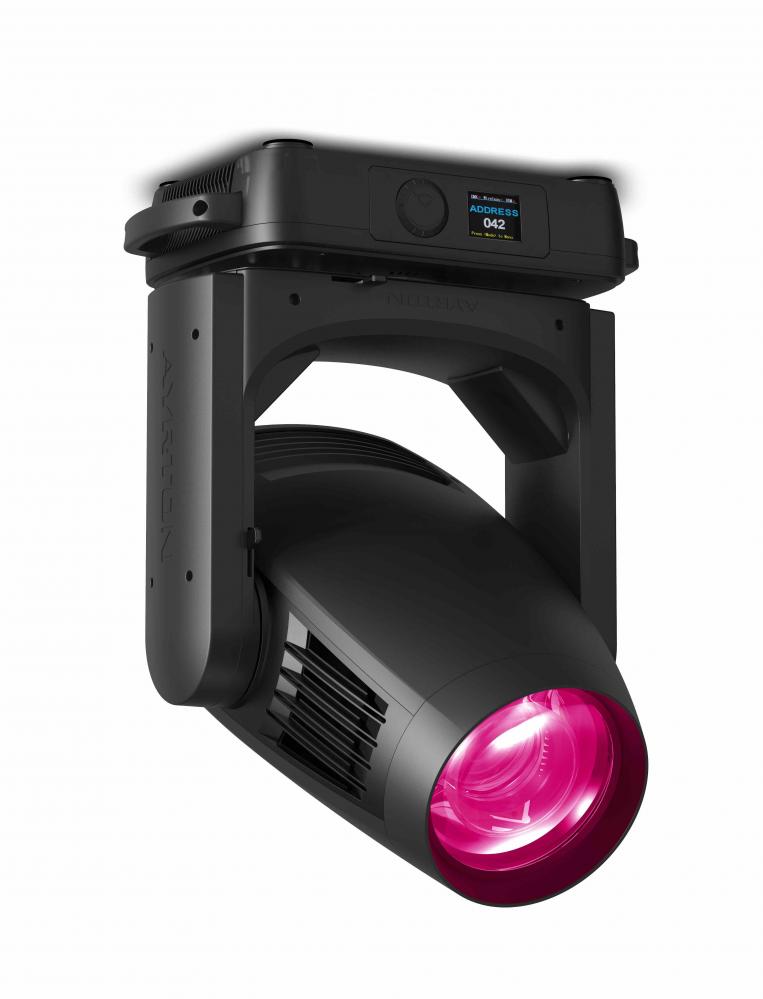

Ayrton has developed Bora, its new feature- packed 750 W wash luminaire, using a radical approach. Its specific function is to establish the perfect atmosphere for your creative design. Fitted with a frontal 178 mm spherical lens, the proprietary optical system using 13 high-quality lenses was developed specifically for “wash” applications. It features an 8:1 zoom ratio for a wide zoom range from 8° to 64°. The optics produces an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour combination selected. Bora comes in two versions, each to meet the specific requirements of lighting professionals. Bora-S is designed for scenic applications. It is equipped with a new LED module calibrated at 7000 K, delivering powerful metallic white light with record-breaking output of 34,000 lumens. Devised specifically for applications that require perfect.
GAEB
TEXT
product description
Ayrton has developed Bora, its new feature- packed 750 W wash luminaire, using a radical approach. Its specific function is to establish the perfect atmosphere for your creative design. Fitted with a frontal 178 mm spherical lens, the proprietary optical system using 13 high-quality lenses was developed specifically for “wash” applications. It features an 8:1 zoom ratio for a wide zoom range from 8° to 64°. The optics produces an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour combination selected. Bora comes in two versions, each to meet the specific requirements of lighting professionals. Bora-S is designed for scenic applications. It is equipped with a new LED module calibrated at 7000 K, delivering powerful metallic white light with record-breaking output of 34,000 lumens. Devised specifically for applications that require perfect.
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
5pin
built-in Switch
yes
Control
max Dimmer resolution
16 bit
control channels, min
36 ch
control channels, max
56 ch
RDM
yes
wireless dmx
yes
protocol-DMX
both
protocol-Artnet
both
Electrical
power consumption watt, max
1150.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
operating temp, min
-10.00 °C
operating temp, max
45.00 °C
built-in dimmer
LED PWM
power input connector
Truecon
cooling
active
Mechanical
weight
37.80 kg
width
494.00 mm
height
737.00 mm
length
280.00 mm
pan range
540 °
tilt range
270 °
color
black
truss mountable
yes
recessed installation
yes
Optical
output lumen, max
31000 lm
beam angle/zoom, min
8.00 °
beam angle/zoom, max
64.00 °
light source
LED
Number of light sources
1 pcs
wattage per light source
750.00 W
optics/projection type
Washlight
number of separate pixel zones
shutter/strobe frequency, max
25 Hz
variable/linear frost
yes
iris min
15 %
iris max
100 %
color temperature, min
5700 K
min CRI
90 CRI
drop-in frosts
1 pcs
lens diameter
178 mm
beam shape
round
fixed/virtual colorwheels
2 pcs
gobowheels total
1 pcs
rotating gobowheels
1 pcs
number of fixed gobos
6 pcs
number of rotating gobos
6 pcs
beam shapers/framing/barndoors
yes
shaper rotation range degrees
90 °
prism
no
separate CTO wheel
yes
CMY colormixing
dual flag
