Info | |
---|---|
order code |
20000005
|
product link | |
EAN |
4026397567052
|
Product Name |

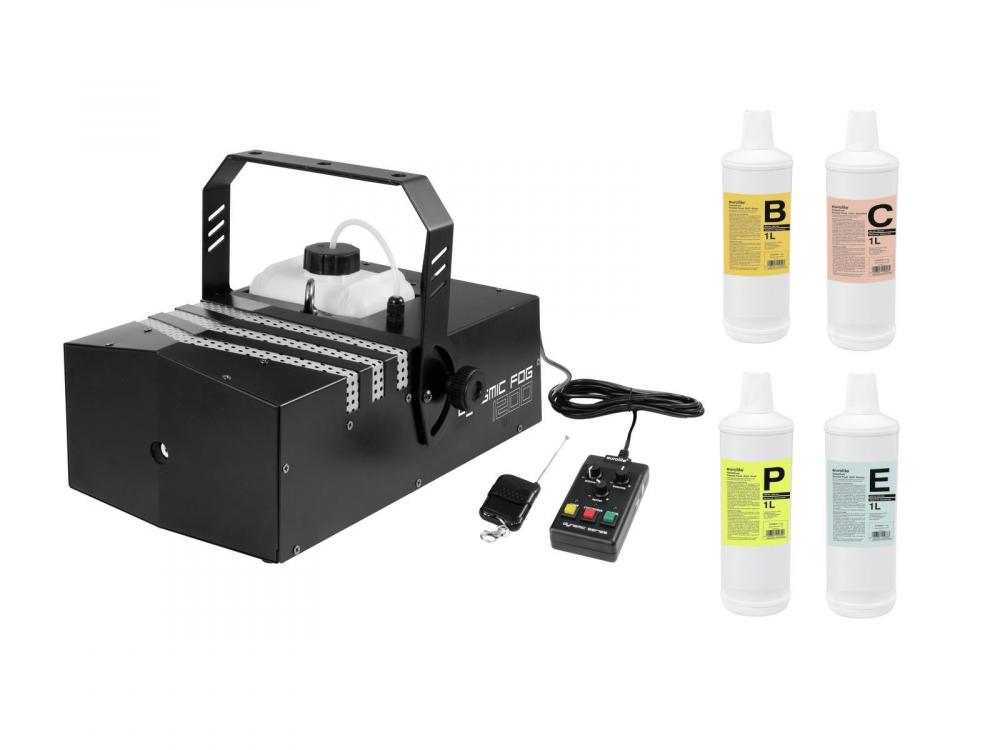

EUROLITE Set Dynamic Fog 1200 + fluids
|
technical overview |
51702040 EUROLITE Dynamic Fog 1200 Fog Machine Power supply: 230 V AC, 50 Hz Output distance: 4 m Warm-up time: 3 min. Output volume: 340 m³/min. Tank capacity: 2.3 l DMX connection: 3-pin XLR Dimensions (L x W x H): 425 x 310 x 290 mm Power consumption: 1200 W Weight: 7,3 kg IP classification: IP20 Color: Black Height: 29 cm Depth: 42,5 cm Width: 31 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 1 Power supply: 230 V AC, 50 Hz 51703750 EUROLITE Smoke Fluid -B2D- Basic 1l Weight: 1,00 kg 51703796 EUROLITE Smoke Fluid -C2D- Standard 1l Weight: 1 kg 51703830 EUROLITE Smoke Fluid -P2D- professional 1l Weight: 1,00 kg 51703844 EUROLITE Smoke Fluid -E2D- extreme 1l Weight: 1,1 kg |
main features |
51702040 EUROLITE Dynamic Fog 1200 Fog Machine DMX machine with 1200 W power, wireless remote control and timer -Compact fog machine with high output volume: 340 m³/min. -Ideal for accentuating light and laser beams -Concentrated and steady fog output -Control via integrated DMX interface -Adjustable timer with interval and duration -Continuous activation via handy transmitter -DMX interface with 3-pin connectors -Fan grille with blue LED illumination, switchable -Operates on standard waterbased fluid -Removable tank -Metal housing with movable mounting bracket and safety eyelet -Smoke-output: ca. 4 m -Case color: Black -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Wireless remote control (provided); DMX; Wired remote control (provided) 51703750 EUROLITE Smoke Fluid -B2D- Basic 1l Fog effect with medium density and hang time -Ready-to-use fog fluid for fog machines -Recommended use: fine mist for laser and light shows as well as permanently standing fog layers -Water-based -Odorless -Glycerine- and DEG-free composition -Non-toxic -Not harmful to health -Reusable container -Biodegradable according to OECD 301E/EEC 84/449 C3 -Non-flammable, no transport restriction, no dangerous goods -Permanent quality control, complying with REACH -Proven quality -Fluid: Ready for use -Container size: 1 l -Made in Germany 51703796 EUROLITE Smoke Fluid -C2D- Standard 1l Fog effect with medium density and hang time -Ready-to-use fog fluid for fog machines -Recommended use: fine mist for laser and light shows as well as permanently standing fog layers -Water-based -Odorless -Glycerine- and DEG-free composition -Non-toxic -Not harmful to health -Reusable container -Biodegradable according to OECD 301E/EEC 84/449 C3 -Non-flammable, no transport restriction, no dangerous goods -Permanent quality control, complying with REACH -Proven quality -Fluid: Ready for use -Container size: 1 l -Made in Germany 51703830 EUROLITE Smoke Fluid -P2D- professional 1l Long-lasting fog effect with high density -Ready-to-use fog fluid for fog machines -Recommended use: discotheques, indoor stages -Water-based -Odorless -Glycerine- and DEG-free composition -Non-toxic -Not harmful to health -Reusable container -Biodegradable according to OECD 301E/EEC 84/449 C3 -Non-flammable, no transport restriction, no dangerous goods -Permanent quality control, complying with REACH -Proven quality -Fluid: Ready for use -Container size: 1 l -Made in Germany 51703844 EUROLITE Smoke Fluid -E2D- extreme 1l Extremely long-lasting fog effect with high density -Ready-to-use fog fluid for fog machines -Recommended use: large rooms, small open air stages, leak tests in buildings -Water-based -Odorless -Glycerine- and DEG-free composition -Non-toxic -Not harmful to health -Reusable container -Biodegradable according to OECD 301E/EEC 84/449 C3 -Non-flammable, no transport restriction, no dangerous goods -Permanent quality control, complying with REACH -Proven quality -Fluid: Ready for use -Container size: 1 l -Made in Germany |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
1 ch
|
control channels, max |
1 ch
|
*# category-effect | |
output volume |
340 m3/min
|
tank size |
3.00 l
|
Electrical | |
power consumption watt, max |
1200.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
7.30 kg
|
width |
310.00 mm
|
height |
290.00 mm
|
length |
425.00 mm
|
color |
black
|
