Info | |
---|---|
order code |
20000082
|
product link | |
EAN |
4026397580075
|
Product Name |

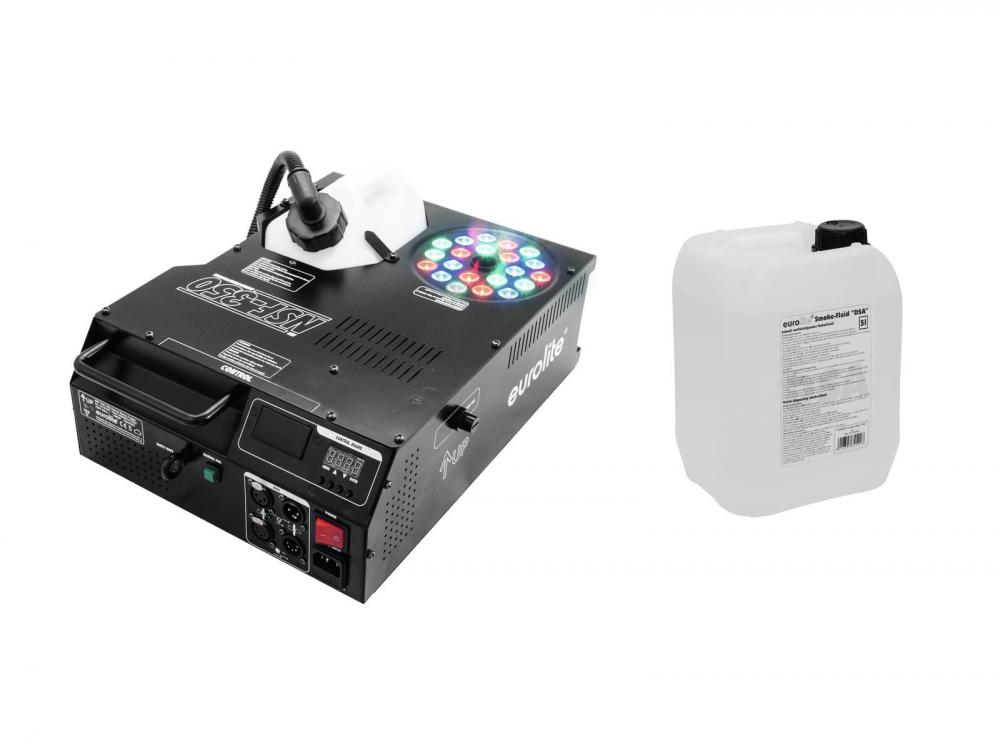

EUROLITE Set NSF-350 + Smoke Fluid -DSA- 5l
|
technical overview |
51701977 EUROLITE NSF-350 LED Hybrid Spray Fogger Power supply: 230 V AC, 50 Hz DMX channels: 8 DMX connection: 5-pin and 3-pin XLR Output distance: 5-7 m Fluid consumption: 95 ml/min. Output volume: 1130 m³/min. Warm-up time: 5 min. LED number: 21 (7 x R, 7 x G, 7 x B) LED type: 3 W Dimensions (L x W x H): 430 x 310 x 205 mm Remote control: Carrier frequency: UHF 433.920 MHz Battery: 12 V, type A27 Power consumption: 1580 W Weight: 7,7 kg IP classification: IP20 Fluid consumption: ca. 95 - Color: Black Height: 20,5 cm Depth: 63,5 cm Width: 41 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 8 Power supply: 230 V AC, 50 Hz 5170435A EUROLITE Smoke fluid -DSA- effect, 5l Weight: 5,00 kg |
main features |
51701977 EUROLITE NSF-350 LED Hybrid Spray Fogger DMX fog machine with 1500 W, LED illumination, vertical/horizontal fog output -LED light effect with fog spouter in one device -Your all-in-one solution with powerful vertical smoke output -Output nozzle with RGB LED illumination for impressive effect presentations -5-7 meter high fog output -Comfortable addressing and setting via control panel with LED display and four operating buttons -Control via supplied wireless controller or integrated DMX512 interface -Additional button for manual activation -Equipped with 21 x 3 W LED: 7 x red, 7 x green, 7 x blue -LED color, color change and strobe effect selectable -Removable tank with level indication -Optoelectronic low fluid detector -Power connection via included IEC power cable with safety plug -Smoke-output: ca. 6 m -Case color: Black -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Wireless remote control (provided); DMX; Stand-alone 5170435A EUROLITE Smoke fluid -DSA- effect, 5l Very short-lasting fog effect with extreme density -Recommended use: dynamic, quickly evaporating fog effect, e.g. for photo shootings, product presentations and theater performances -Fog fluid for fog machines -Water-based -Odorless -Glycerine-free composition -Non-toxic -Not harmful to health -Reusable container -Biodegradable according to OECD 301E/EEC 84/449 C3 -Non-flammable -Permanent quality control, complying with REACH -Proven quality -Fluid: Ready for use -Made in Germany -Container size: 5 l |
Connectors | |
DMX connector types |
both 3/5pin
|
Control | |
control channels, min |
8 ch
|
control channels, max |
8 ch
|
*# category-effect | |
output volume |
1130 m3/min
|
Electrical | |
power consumption watt, max |
3.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
7.70 kg
|
width |
410.00 mm
|
height |
205.00 mm
|
length |
430.00 mm
|
Optical | |
Number of light sources |
21 pcs
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
