Info | |
---|---|
order code |
20000161
|
product link | |
EAN |
4026397586213
|
Product Name |

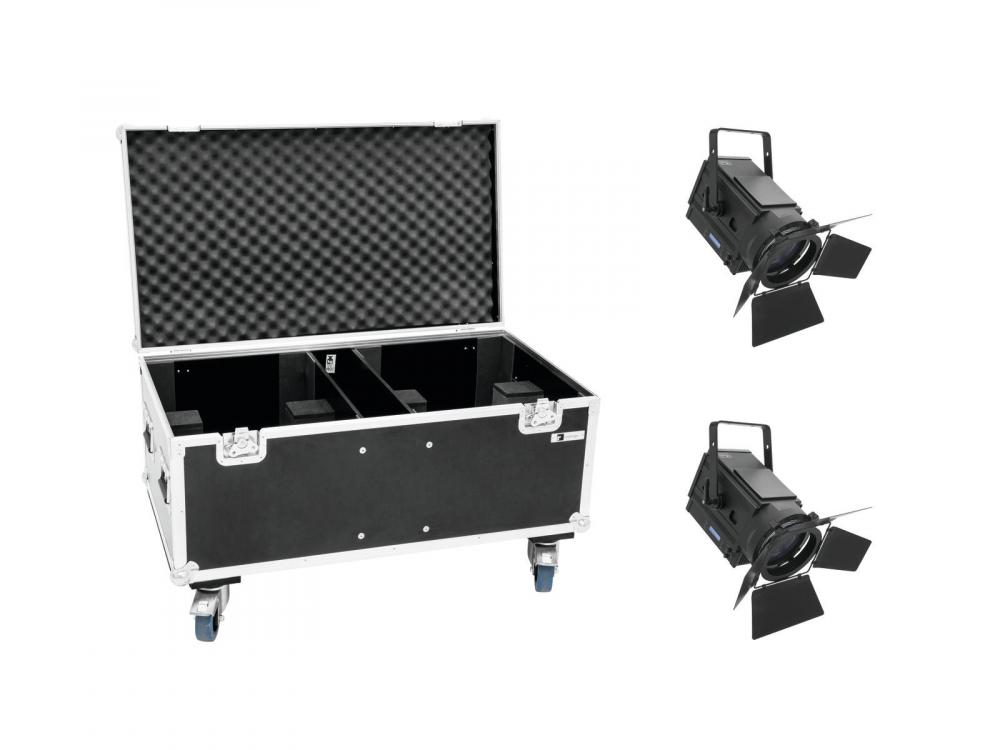

EUROLITE Set 2x LED THA-250F + Case
|
technical overview |
41602140 EUROLITE LED THA-250F Theater-Spot Power supply: 100-240 V AC, 50/60 Hz DMX channels: 3 DMX connection: 5-pin and 3-pin XLR LED type: COB 200 W, white LED number: 1 Color temperature: 2800 K Beam angle: 13-45° Dimensions (L x W x H): 457 x 336 x 399 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Cooling fan: Yes, temperature-controlled IP classification: IP20 Weight: 9,35 kg Power consumption: 265 W Lamp type: LED lamp Beam angle: 13 - 45° Width: 33,6 cm Length: 45,7 cm Equipment: Zoom motor-driven Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) DMX channels: 3 Height: 39,9 cm LED: 1 x COB (chip-on-board) 200 W WW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz 31005097 ROADINGER Flightcase 2x THA-250F Strength: 7 mm Outside dimensions (BxTxH): 970 x 540 x 545 mm Weight: 21,00 kg Color: Dark brown laminated Maximum load: 100 kg Width: 97 cm Depth: 54 cm Height: 54,5 cm Material: Birch multiplex 7 mm |
main features |
41602140 EUROLITE LED THA-250F Theater-Spot Fresnel spot (fresnel lens), 200 W warm white LED, CRI >90, quiet, DMX -DMX512 control possible via any commercial DMX controller (occupies 3 channels) -Comfortable addressing and setting via control panel with LC display and four operating buttons -Functions: dimmer, strobe effect, focus -Various dimmer curves adjustable via control panel -Motorized zoom adjustable via DMX or manually on the device -Equipped with a warm white COB LED (200 W) -CRI of >90 -Mounting bracket for installation on a stand or a crossbeam -Temperature-protected handle -Additional rubber feet when the spot shall be positioned on the floor -Barndoors included in delivery -Supports RDM (Remote Device Management) -Fan-cooled -Power connection via Neutrik PowerCon jack and included power cable with safety plug -Switch-mode power supply for operation between 100 and 240 volts -Feed-through output allows to power up to 8 devices -Color rendering index (CRI) more than: 90 Ra -Case color: Black -Projection: flicker-free -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Power out: 1 x Powercon (Power out) gray, mounting version -Control: RDM; Stand-alone; DMX -LED: 1 x COB (chip-on-board) 200 W WW (homogenous color mix) 31005097 ROADINGER Flightcase 2x THA-250F PRO flightcase for 2 THA-250F -Fitted for 2 devices and accessory -Additional accessory compartment -Interior upholstered with foam -High-quality workmanship with birch multiplex, dark brown laminated -Aluminum profile frames (25 mm) with rounded edges -Three-leg, big steel ball corners -Lid with 2 tip-over locks -4 castors (100 mm), 2 of which with locking brakes -2 chrome butterfly locks -4 chrome case handles -4 stacking dishes for stacking the cases -Transport aid: With wheels -Made in Europe |
Connectors | |
DMX connector types |
both 3/5pin
|
Control | |
control channels, min |
3 ch
|
control channels, max |
3 ch
|
Electrical | |
power consumption watt, max |
200.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
9.35 kg
|
width |
336.00 mm
|
height |
399.00 mm
|
length |
70.00 mm
|
Optical | |
beam angle/zoom, min |
45.00 °
|
beam angle/zoom, max |
13.00 °
|
light source |
LED
|
light source color temperature |
2800 K
|
color temperature, min |
2800 K
|
color temperature, max |
2800 K
|
Number of light sources |
1 pcs
|
wattage per light source |
200.00 W
|
WARM WHITE LED source |
yes
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
