Info | |
---|---|
order code |
20000163
|
product link | |
EAN |
4026397586237
|
Product Name |

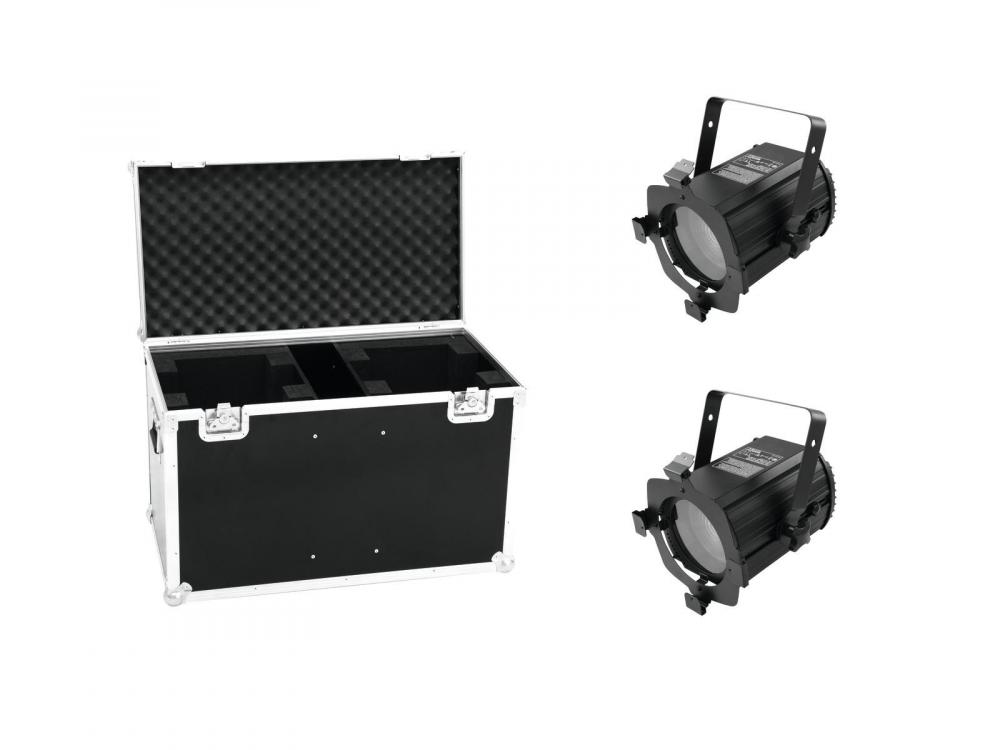

EUROLITE Set 2x LED THA-50F + Case
|
technical overview |
41602100 EUROLITE LED THA-50F Theatre-Spot Power supply: 230 V AC, 50 Hz DMX channels: 1/3 DMX connection: 3-pin XLR LED type: Array 50 W, white LED number: 1 Color temperature: 3200 K Beam angle: 7-35° Dimensions (L x W x H): 280 x 270 x 335 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 4,70 kg Cooling fan: Yes, temperature-controlled IP classification: IP20 Beam angle: 7 - 35° Power consumption: 55 W Lamp type: LED lamp Width: 27 cm Length: 33,5 cm Height: 28 cm Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) DMX channels: 1; 3 LED: 1 x COB (chip-on-board) 50 W WW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz 31005100 ROADINGER Flightcase 2x THA-50F Strength: 7 mm Dimensions (W x D x H): 785 x 425 x 525 mm Weight: 13,75 kg Color: Dark brown laminated Maximum load: 50 kg Width: 78,5 cm Depth: 42,5 cm Height: 52,5 cm Material: Birch multiplex 7 mm |
main features |
41602100 EUROLITE LED THA-50F Theatre-Spot Fresnel spot (fresnel lens), 50 W warm white LED, extremely quiet, DMX -Light impression of a conventional 500 W lamp -Functions: dimmer, strobe effect, Master/Slave operation -Different dimmer curves and dimmer speed adjustable -Manually adjustable zoom -Color temperature 3200 K -Compact housing in a beautiful design -Mounting bracket for installation on a stand or a crossbeam -With color filter frame -Optional barndoors available -1 or 3 DMX channels selectable -DMX-controlled operation or stand-alone operation -DMX512 control possible via any commercial DMX controller -Comfortable addressing and setting via control panel with LCD display and four operating buttons -Fan-cooled -Power connection via Neutrik PowerCon jack and included power cable -Feed-through output allows to power another device -After every 8 devices, the fixtures must have a renewed connection with the power mains -Case color: Black -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Power out: 1 x Powercon (Power out) gray, mounting version -Control: Stand-alone; DMX -LED: 1 x COB (chip-on-board) 50 W WW (homogenous color mix) 31005100 ROADINGER Flightcase 2x THA-50F PRO flightcase for 2 THA-50F -Fitted for 2 devices and accessory -Additional accessory compartment -Interior upholstered with foam -High-quality workmanship with birch multiplex, dark brown laminated -Aluminum profile frames (25 mm) with rounded edges -Three-leg, big steel ball corners -Lid with 2 tip-over locks -2 chrome butterfly locks -2 chrome case handles -Made in Europe |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
1 ch
|
control channels, max |
3 ch
|
Electrical | |
power consumption watt, max |
50.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
4.70 kg
|
width |
270.00 mm
|
height |
280.00 mm
|
length |
50.00 mm
|
Optical | |
beam angle/zoom, min |
35.00 °
|
beam angle/zoom, max |
7.00 °
|
light source |
LED
|
light source color temperature |
3200 K
|
color temperature, min |
3200 K
|
color temperature, max |
3200 K
|
Number of light sources |
1 pcs
|
wattage per light source |
50.00 W
|
WARM WHITE LED source |
yes
|
Collect interesting products in a list and download tender specifications at once
