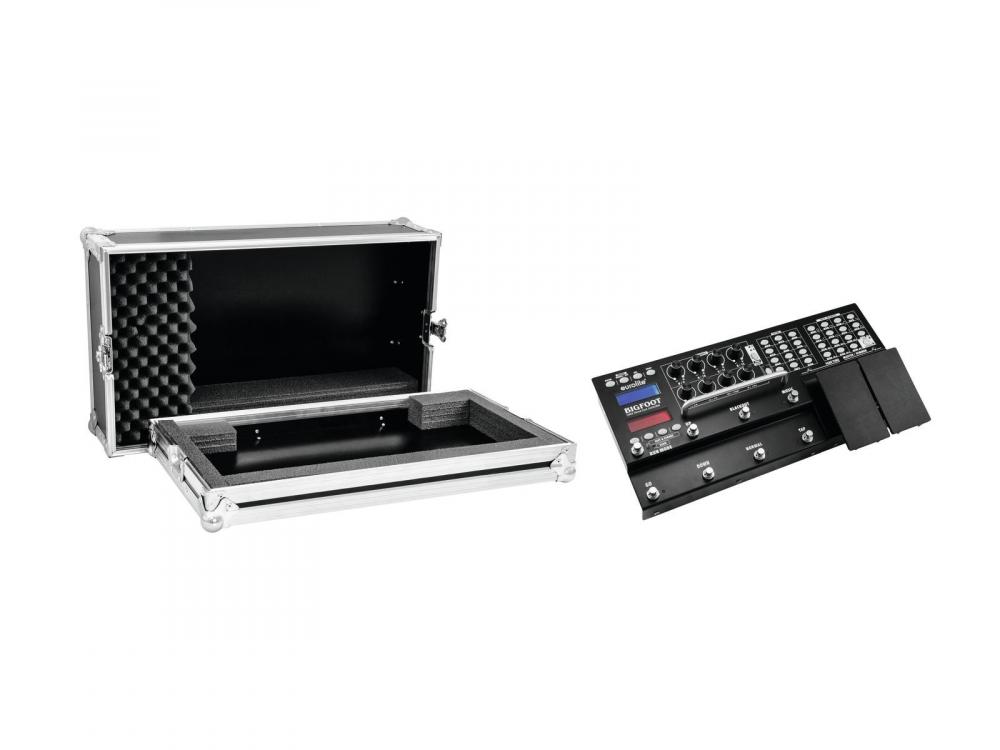

EUROLITE Set DMX Move Bigfoot + Case

EUROLITE

1

Technical specifications, datasheets, descriptions and tender texts for EUROLITE Set DMX Move Bigfoot + Case

Info
order code
20000349
product link
EAN
4026397609462
Product Name
EUROLITE Set DMX Move Bigfoot + Case
technical overview
70064517 EUROLITE DMX Move Bigfoot Foot Controller 192
Power supply: 100-240 V AC, 50/60 Hz

main features
70064517 EUROLITE DMX Move Bigfoot Foot Controller 192

A full-fledged DMX light controller in a foot bar, with FX generator
-Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
-192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
-For 12 fixtures with max. 16 control channels each
-USB port for storing program data
-Quick programming thanks to the integrated FX generator with movement patterns and color effects
-Several effects can be used simultaneously
-15 programmable chases with a total of 100 steps can be stored
-Programs can be freely named
-Simply preselect the desired program and trigger it with GO
-Beat control via music signal or TAP button
-Convenient control of dimmer, fade time and other functions by foot
-8 encoders on 2 levels for adjusting DMX values
-Blackout function
-2 x backlit LCD (2 x 16 characters each)
-Sound control via built-in microphone or line input
-3-pin XLR connector
-Firmware update via USB
-Solid metal housing with handle
-Case color: Black
-Housing design: Foot control
-Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
-Controller useable for: Luminaires for white; general mix of colors; Controls KLS in general; Controls Moving Lights; Controls DMX effects
-Control: DMX

31005124 ROADINGER Flightcase DMX Move Bigfoot

PRO flightcase for one DMX Move Bigfoot
-Suitable for one Eurolite DMX Move Big Foot Controller (no. 70064517)
-Interior and cover upholstered with foam
-High-quality workmanship with multiplex birch wood, dark brown laminated
-Aluminum profile frames with rounded edges
-Three-leg steel ball corners
-Butterfly lock
-Case handle
-Made in Europe
Control
control channels, min
192 ch
control channels, max
192 ch
RDM
yes
Electrical
power consumption watt, max
10.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
external PSU
yes
Mechanical
weight
4.50 kg
width
240.00 mm
height
100.00 mm
length
240.00 mm
