Info | |
---|---|
order code |
20000402
|
product link | |
EAN |
4026397621013
|
Product Name |

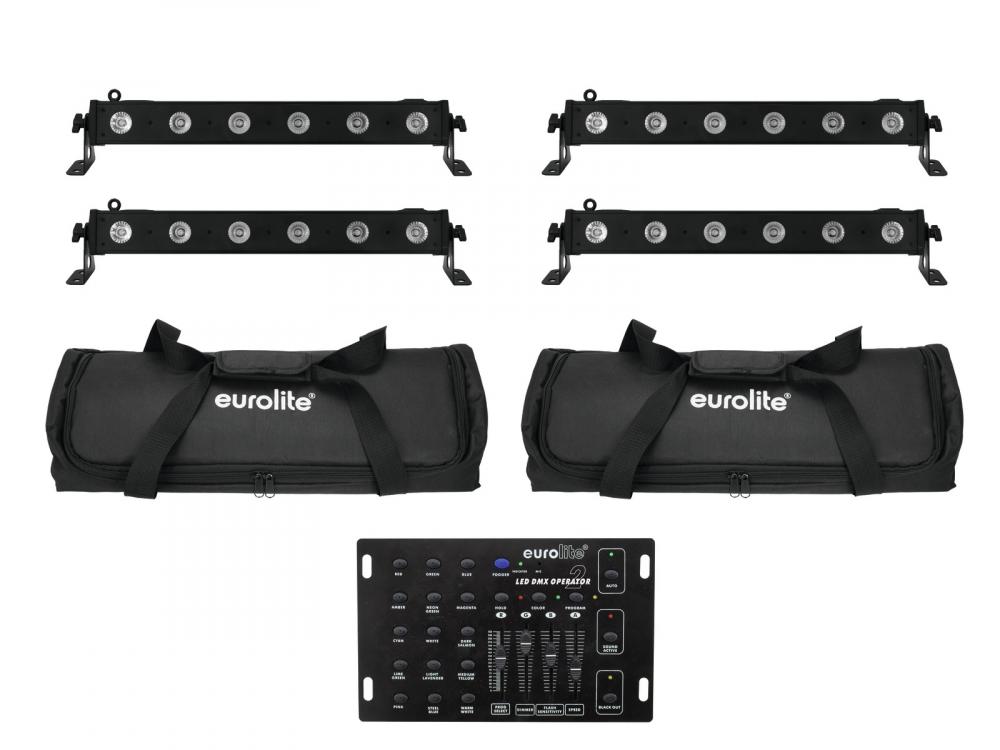

EUROLITE Set 4x LED BAR-6 QCL RGBA + 2x Soft Bag + Controller
|
technical overview |
51930397 EUROLITE LED BAR-6 QCL RGBA Bar Power supply: 100-240 V AC, 50/60 Hz DMX channels: 2/4/5/6/9 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flashrate: 20 Hz Type of LED: 4 W RGBA (4in1) LED number: 6 Beam angle: 17° Dimensions (L x W x H): 585 x 65 x 100 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP20 Beam angle: 17° Cooling fan: No, cooling by convection Weight: 1,81 kg Lamp type: LED lamp Power consumption: 15 W Height: 10 cm Depth: 6,5 cm Length: 59 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 2; 4; 5; 6; 9 LED: 6 x high-power 4 W 4in1 QCL RGBA (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz 30130580 EUROLITE SB-205 Soft Bag Outside dimensions (L x W x H): 575 x 170 x 120 mm Color: Black Weight: 0,3 kg Maximum load: 25 kg Width: 57,5 cm Depth: 17 cm Height: 12 cm Material: Textile 70064502 EUROLITE DMX LED Operator 2 controller Power supply: 230 V AC, 50 Hz, via 12 V DC, 300 mA power unit included in the delivery Number of control channels: 8 Sound-control: via built-in microphone DMX512 output: 3-pin XLR connector Dimensions (L x W x H): 265 x 165 x 55 mm Power consumption: 4,00 W Weight: 1 kg IP classification: IP20 Color: Black Height: 5,5 cm Depth: 16,5 cm Width: 26,5 cm DMX channels: 8 Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) |
main features |
51930397 EUROLITE LED BAR-6 QCL RGBA Bar Spotlight bar (60 cm) with 6 x 4 watt 4in1 LED (RGBA) -Operable in stand-alone mode or via DMX -DMX512 control possible via any commercial DMX controller (occupies max. 9 channels) -2, 4, 5, 6, or 9 DMX channels selectable -Sound-control via built-in microphone -Microphone sensitivity adjustable via Control Board -Comfortable addressing and setting via control board with LED display and four operating buttons -Functions: Static colors, RGBA color blend, color temperature settings, internal programs, dimmer and strobe settings, Master/Slave -Equipped with 6 x 4 W QCL LED in the colors red, green, blue and amber -Hanging as well as standing installation possible -Locking possibility at the mounting bracket -Feed-through output allows to power up to 8 devices -Switch-mode power supply for operation between 100 and 240 volts -Ready for connection via enclosed IEC power cord with safety-plug -Case color: Black -Effect: Strobe effect -Projection: flicker-free -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Power out: 1 x IEC connector (F) mounting version -Control: Stand-alone; DMX -LED: 6 x high-power 4 W 4in1 QCL RGBA (homogenous color mix) 30130580 EUROLITE SB-205 Soft Bag Universal softbag, 575 x 170 x 120 mm -Big universal compartment with divider -Ideal for e.g. LED bars with 50 cm length and accessories -Interior upholstery helps securing and safeguarding the fixtures during transportation -Made of easy-care nylon -Two handles with velcro fastener 70064502 EUROLITE DMX LED Operator 2 controller Compact DMX controller for easy application -8 control channels only suitable for special LED-spots (RGBA and RGBW) -Select color mode for choosing single colors -Internal programs -Auto mode for running all programs -Sound-control via built-in microphone -Pause function -Blackout function -Control LEDs display current operating mode -Program Select-fader for selecting the internal programs -Speed-fader for adjusting the program-speed -Strobe-effect with adjustable speed -Additional fogger button for direct control of a DMX smoke machine (CH-7/8) -Designed for standing operation, optional installation is customer's choice -Suitable for 254 mm racks (10") with 4 units -Power supply via enclosed 12 V DC power unit -Case color: Black -Housing design: Desktop console -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) -Controller useable for: RGBW luminaires -Control: DMX |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
2 ch
|
control channels, max |
9 ch
|
Electrical | |
power consumption watt, max |
15.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
passive
|
Mechanical | |
weight |
1.81 kg
|
width |
65.00 mm
|
height |
100.00 mm
|
length |
585.00 mm
|
Optical | |
beam angle/zoom, min |
17.00 °
|
beam angle/zoom, max |
17.00 °
|
light source |
LED
|
Number of light sources |
6 pcs
|
shutter/strobe frequency, max |
20 Hz
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
