Info | |
---|---|
order code |
20000606
|
product link | |
EAN |
4026397659061
|
Product Name |

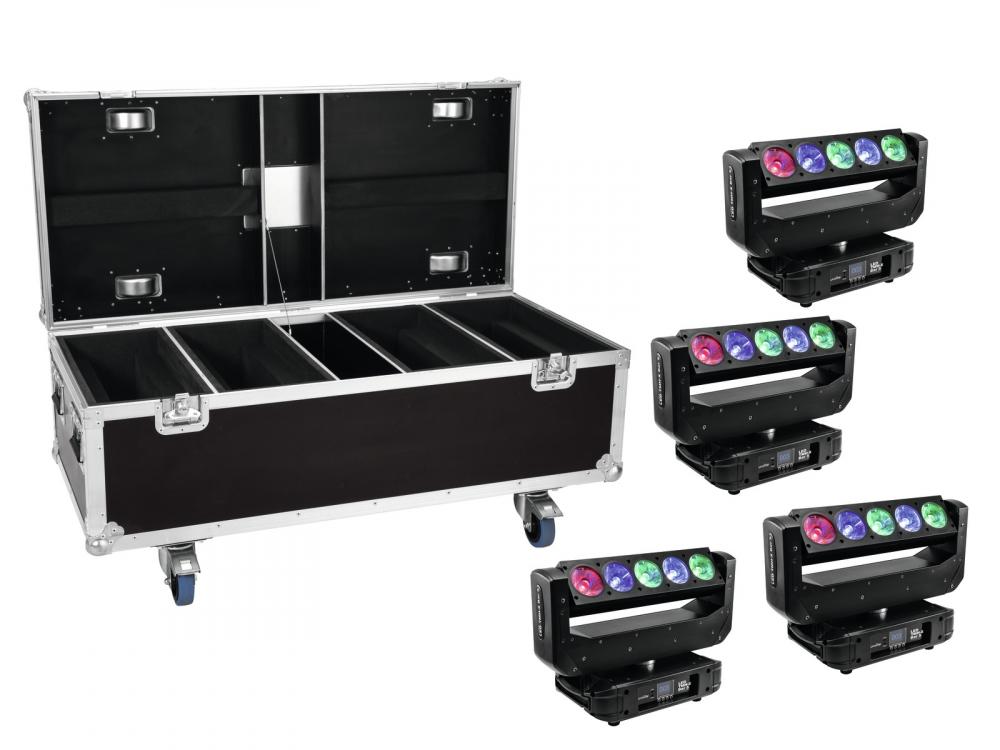

EUROLITE Set 4x LED TMH-X Bar 5 Beam + Case
|
technical overview |
51785905 EUROLITE LED TMH-X Bar 5 Moving-Head Beam Power supply: 100-240 V AC, 50/60 Hz DMX channels: 16/32 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 18 Hz LED type: 15 W RGBW (COB) LED number: 5 Beam angle: 3° Maximum PAN-movement: 540° Maximum TILT-movement: unlimited Dimensions (L x W x H): 195 x 430 x 300 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 9 kg Cooling fan: Yes IP classification: IP20 Power consumption: 100 W Laser class: Without laser Beam angle: 3° Height: 30 cm Depth: 19,5 cm Width: 43 cm Max. TILT movement: Exact positioning (16 bit resolution) 360° plus infinity Max. PAN movement: Exact positioning (16 bit resolution) 540° Pan tilt feedback Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) DMX channels: 16; 32 LED: 5 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz 31005151 ROADINGER Flightcase 4x LED TMH-X Bar 5 Weight: 31,70 kg |
main features |
51785905 EUROLITE LED TMH-X Bar 5 Moving-Head Beam Narrow angle LED Moving Bar with 5 RGBW LEDs (15 W each) and unlimited TILT -Moving Beam bar equipped with five 15 W COB LEDs with RGBW colors -Each LED can be controlled individually -Narrow beam angle -With Infinity function for unlimited TILT movement -Positioning within 540° PAN and 360° TILT -Automatic position correction for PAN -16 or 32 DMX channel mode selectable -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-controlled via built-in microphone -Colored beams in red, green, blue and white -Stepless RGBW color mixture -Color presets -Strobe effect with variable speed -Internal programs -Exact positioning via 16 bit PAN/TILT movement resolution -Dimmer -Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset -Switch-mode power supply for operation between 100 and 240 volts -Power connection via P-Con jack and included power cable with safety plug -Feed-through output allows to power up to 8 devices -DMX control via every standard DMX controller -Case color: Black -Effect: Fan effect -Projection: flicker-free -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) -Power out: 1 x P-Con (Power out) gray, mounting version -Control: DMX; Sound to light via microphone; Stand-alone -LED: 5 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix) 31005151 ROADINGER Flightcase 4x LED TMH-X Bar 5 Narrow angle LED Moving Bar with 5 RGBW LEDs (15 W each) and unlimited TILT PRO flightcase for 4 x Eurolite LED TMH-X Bar 5 -Made in Europe |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
16 ch
|
control channels, max |
32 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
15.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
9.00 kg
|
width |
430.00 mm
|
height |
300.00 mm
|
length |
195.00 mm
|
pan range |
540 °
|
tilt range |
360 °
|
Optical | |
beam angle/zoom, min |
3.00 °
|
beam angle/zoom, max |
3.00 °
|
light source |
LED
|
Number of light sources |
5 pcs
|
wattage per light source |
15.00 W
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
18 Hz
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
