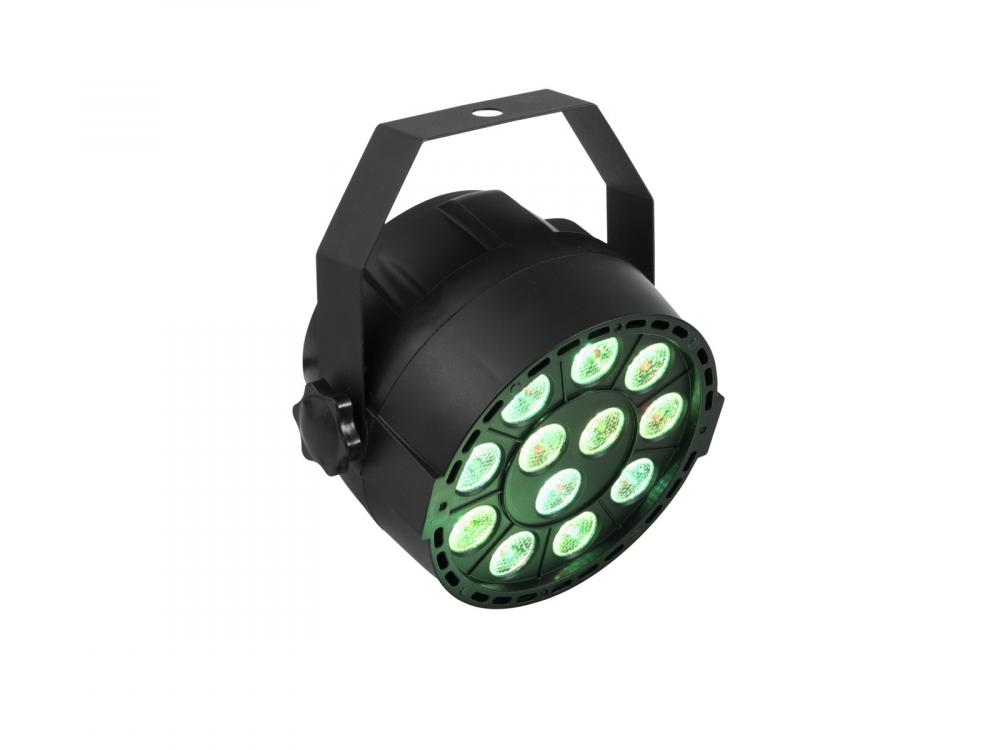

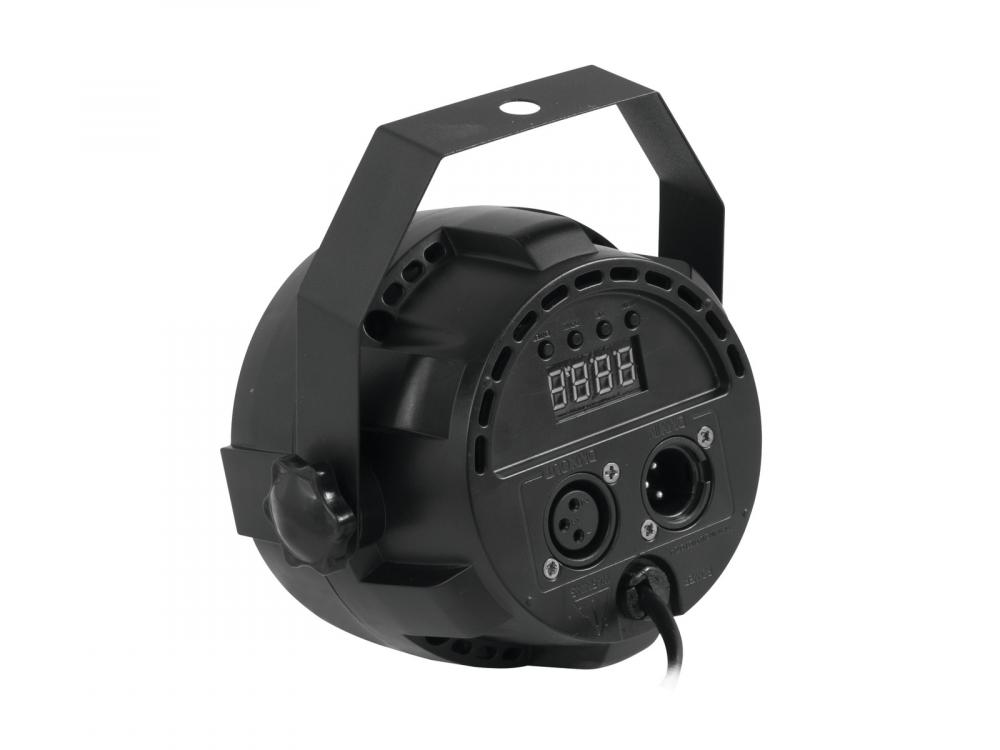

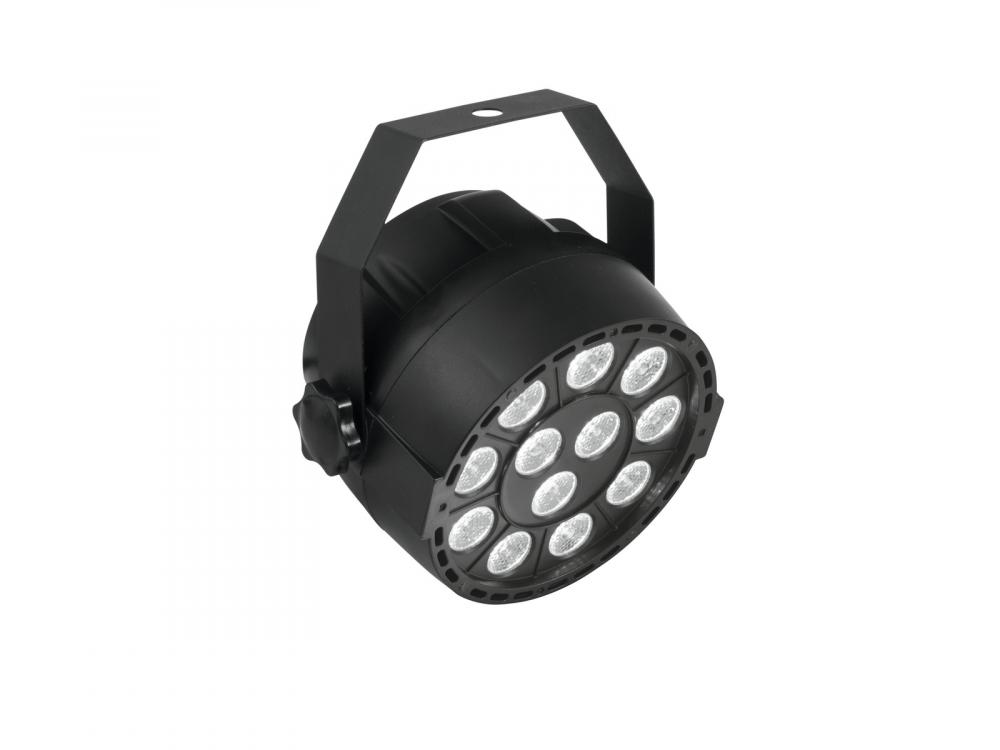

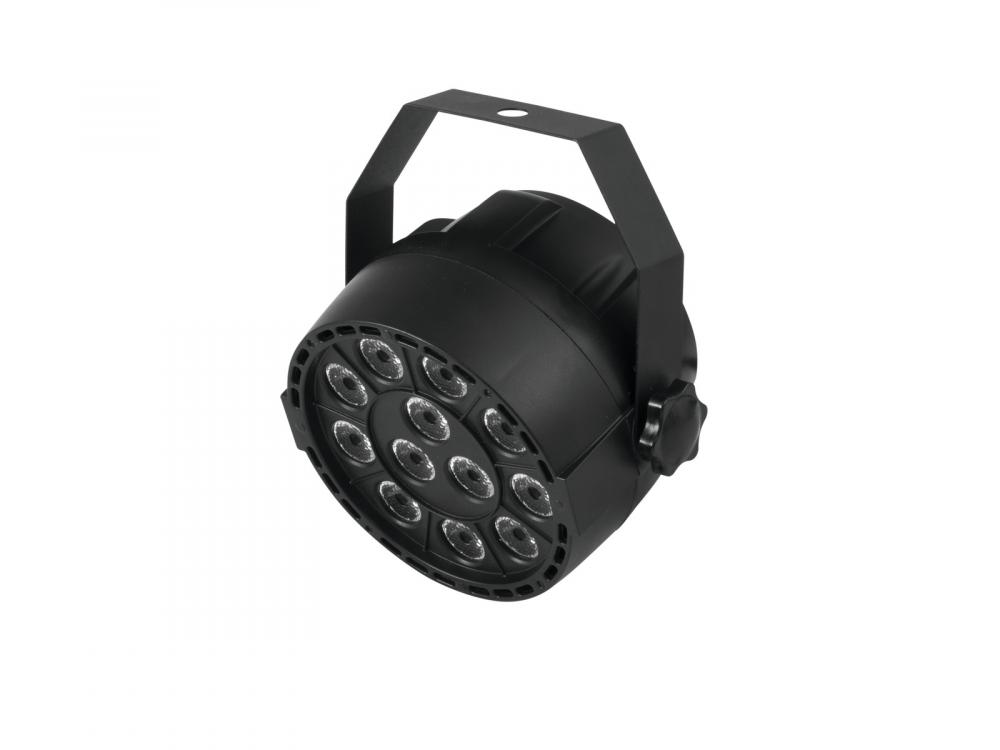

EUROLITE LED PARty TCL Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED PARty TCL Spot

Info
order code
42110193
product link
EAN
4026397593808
Product Name
EUROLITE LED PARty TCL Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 5
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
LED type: 3 W RGB (3in1)
LED number: 12
Beam angle: 17°
Cable length: 1 m
Dimensions (L x W x H): 90 x 150 x 160 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Beam angle: 17°
Cooling fan: Yes
Lamp type: LED lamp
Weight: 0,46 kg
Power consumption: 10 W
Height: 16 cm
Depth: 9 cm
Width: 15 cm
Power connection: Fix Power supply cord with Euro plug (M)
DMX channels: 5
LED: 12 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Compact spotlight with 12 x 3 W 3in1 LEDs in RGB and DMX control
-Equipped with 12 high-power RGB LEDs (3in1)
-Functions: static colors, RGB color mixture, internal programs, color change with diverse settings, dimmer and strobe settings, master/slave operation
-Operable in stand-alone mode or via DMX

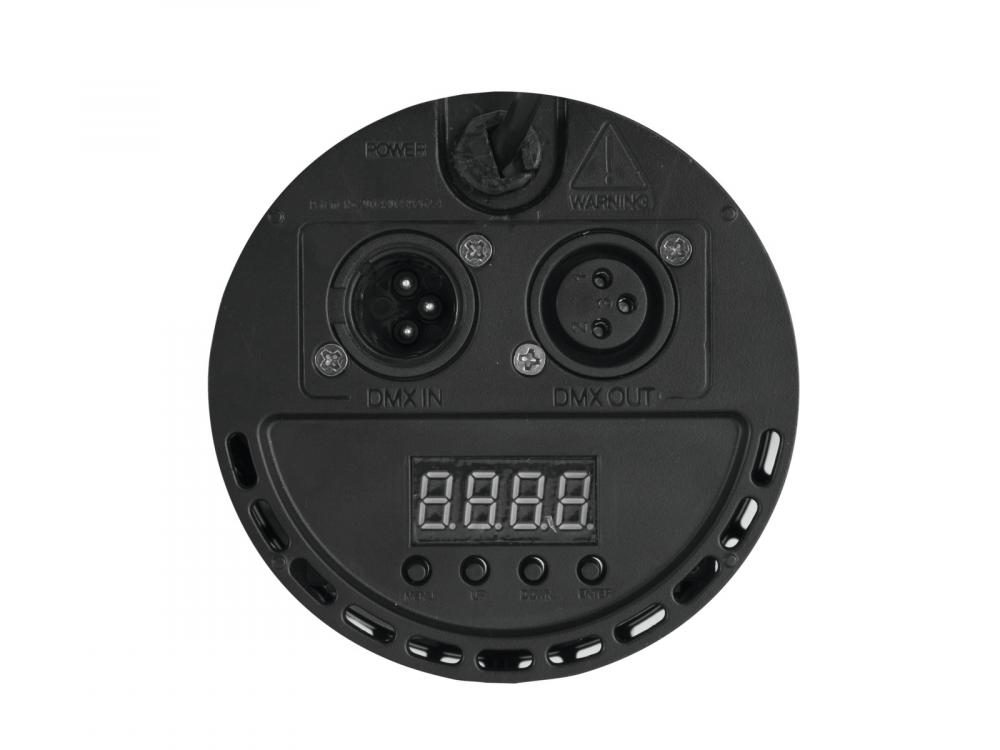

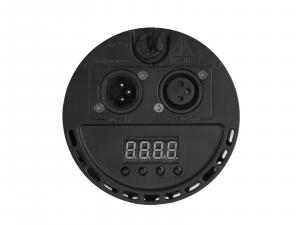

-Addressing via control panel with 4-digit LED display
-Sound-control via built-in microphone
-Easy installation
-Ideal for party-rooms and household use
-Locking possibility at the mounting bracket
-Ready for connection via power cord with Euro plug
-Switch-mode power supply for operation between 100 and 240 volts
-DMX512 control possible via any commercial DMX controller (occupies 5 channels)
-Case color: Black
-Effect: Strobe effect
-Power connection: Fix Power supply cord with Euro plug (M)
-Projection: flicker-free
-Control: Stand-alone; DMX
-LED: 12 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
5 ch
control channels, max
5 ch
Electrical
power consumption watt, max
3.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Europlug
cooling
active
Mechanical
weight
0.46 kg
width
150.00 mm
height
160.00 mm
length
90.00 mm
Optical
beam angle/zoom, min
17.00 °
beam angle/zoom, max
17.00 °
light source
LED
Number of light sources
12 pcs
wattage per light source
3.00 W
multichip LED
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00102442.pdf
