Info | |
---|---|
order code |
42110195
|
product link | |
EAN |
4026397585599
|
Product Name |

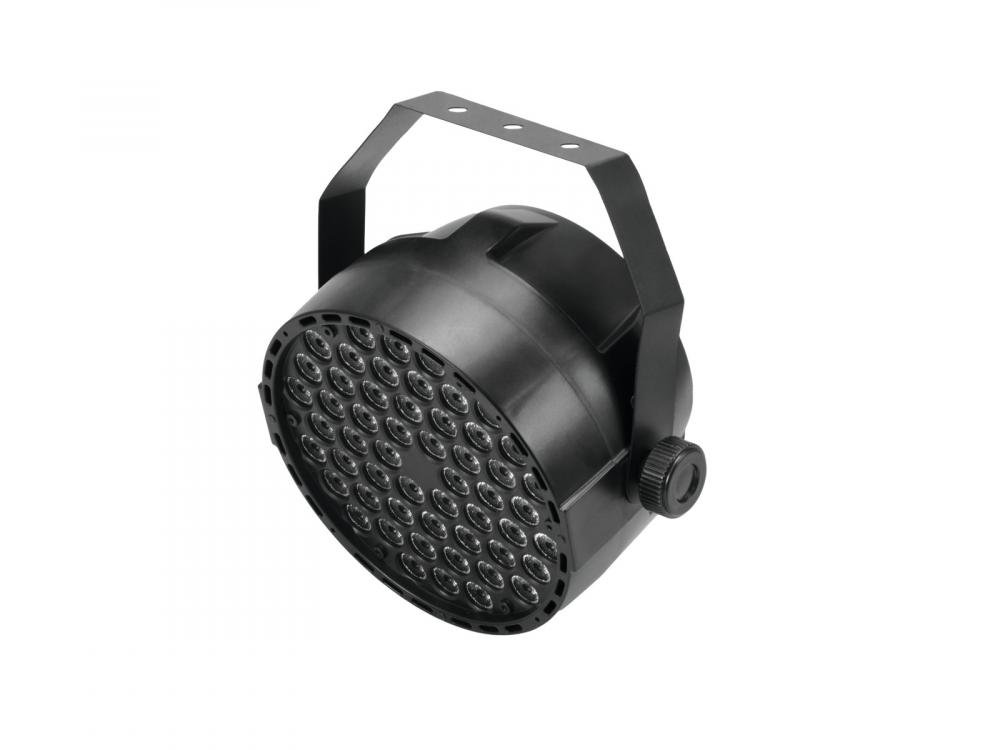

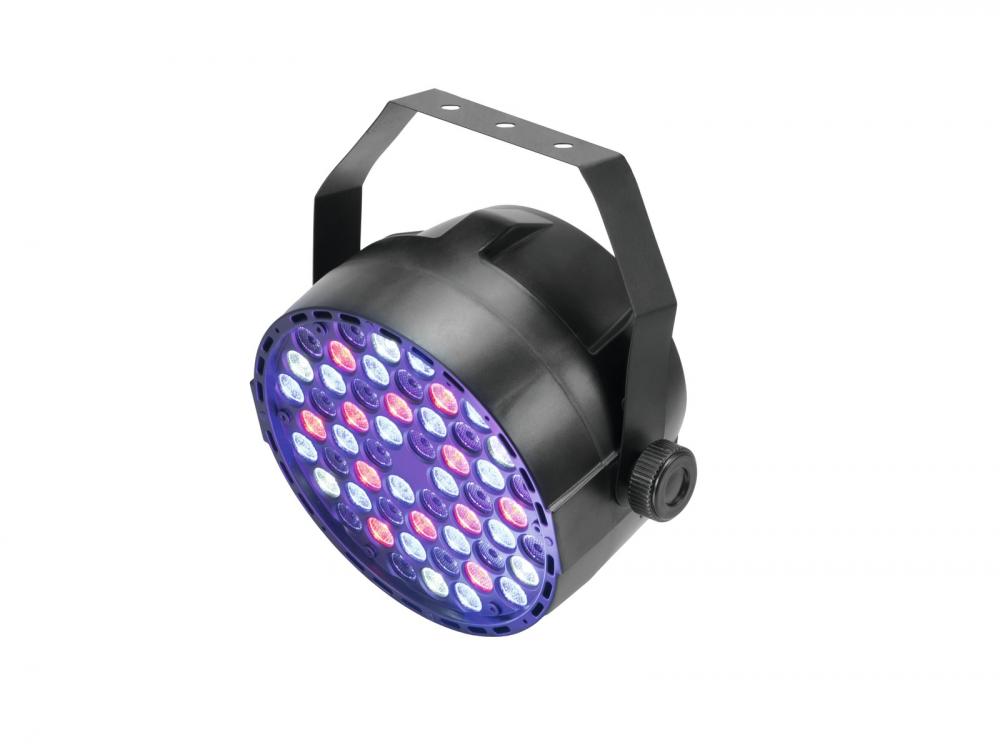

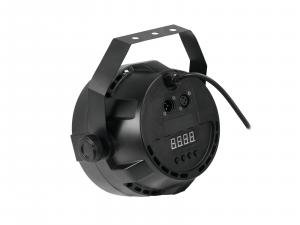

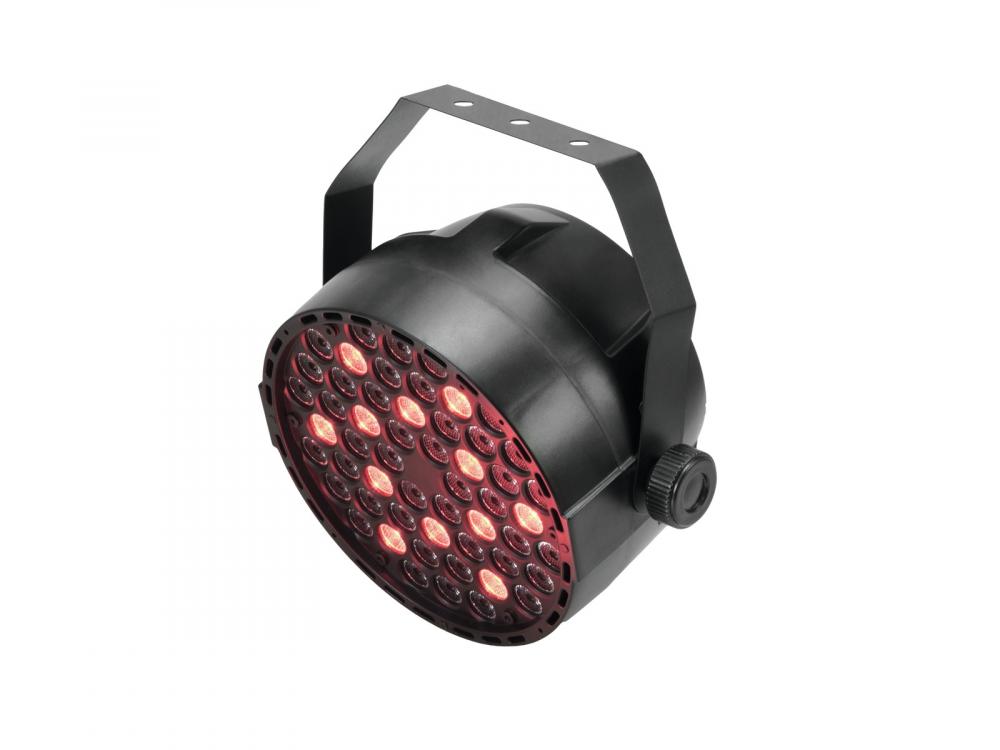

EUROLITE LED Big PARty Spot
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 6 DMX connection: 3-pin XLR Sound-control: via built-in microphone LED type: 1 W LED number: 54 (12 x R, 18 x G, 18 x B, 6 x W) Beam angle: 12° Dimensions (L x W x H): 130 x 250 x 245 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP20 Beam angle: 12° Lamp type: LED lamp Weight: 1 kg Power consumption: 60 W Height: 24,5 cm Depth: 13 cm Width: 25 cm Power connection: Fix Power supply cord with Euro plug (M) DMX channels: 6 LED: 54 x high-power 1 W RGBW Power supply: 110-240 V AC, 50/60 Hz |
main features |

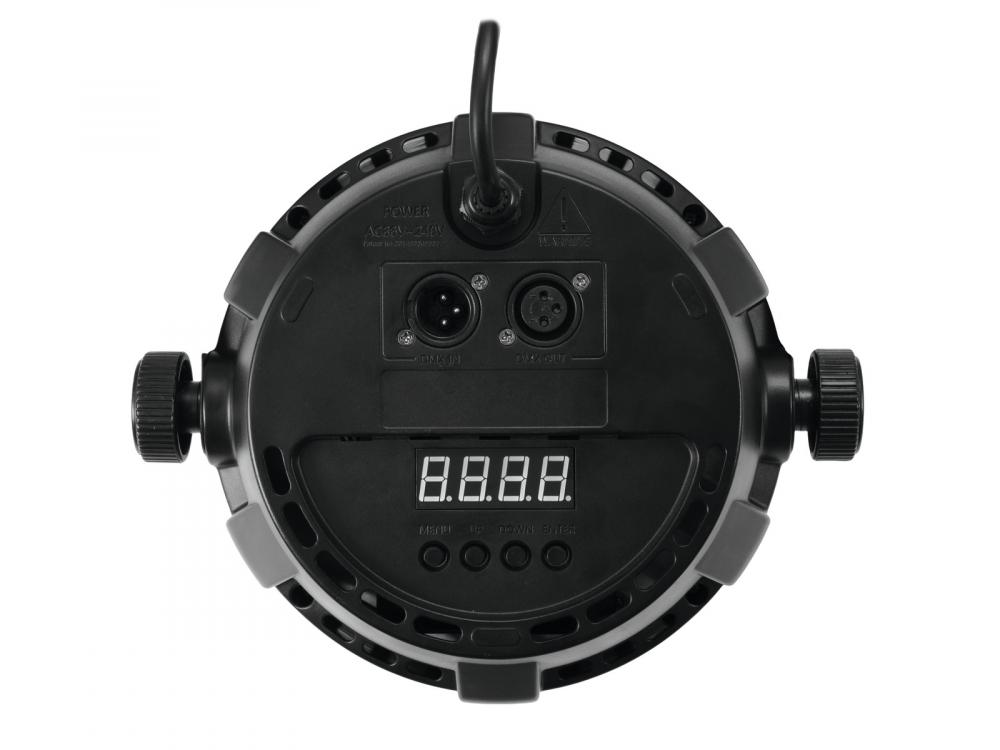

Spotlight with 54 x 1 W LED in R, G, B, W and DMX control -Equipped with 54 x 1 W LED - 12 x R, 18 x G, 18 x B and 6 x W -Functions: static colors, RGBW color mixture, internal programs, color change with diverse settings, dimmer and strobe settings, Master/Slave operation -Operable in stand-alone mode or via DMX -Addressing via control panel with 4-digit LED display -Sound-control via built-in microphone -Easy installation -Ideal for party-rooms and household use -Locking possibility at the mounting bracket -Ready for connection via power cord with Euro plug -Switch-mode power supply for operation between 100 and 240 volts -DMX512 control possible via any commercial DMX controller -Case color: Black -Effect: Strobe effect -Projection: flicker-free -Power connection: Fix Power supply cord with Euro plug (M) -Control: Stand-alone; DMX -LED: 54 x high-power 1 W RGBW |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
6 ch
|
control channels, max |
6 ch
|
Electrical | |
power consumption watt, max |
1.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Europlug
|
Mechanical | |
weight |
1.00 kg
|
width |
250.00 mm
|
height |
245.00 mm
|
length |
130.00 mm
|
Optical | |
beam angle/zoom, min |
12.00 °
|
beam angle/zoom, max |
12.00 °
|
light source |
LED
|
Number of light sources |
54 pcs
|
wattage per light source |
1.00 W
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
Collect interesting products in a list and download tender specifications at once
Videos |
---|
Downloads |
---|
Bedienungsanleitung |
---|
00101530.pdf |
