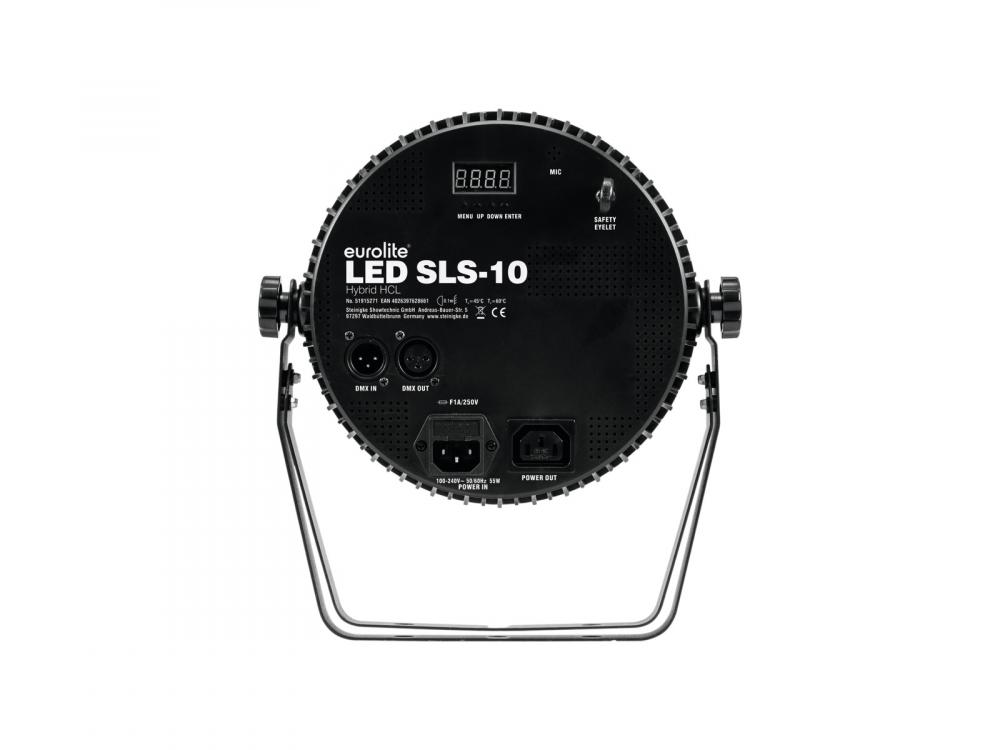

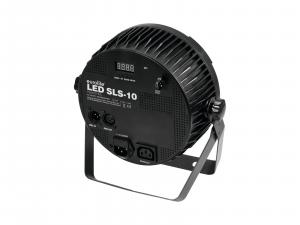

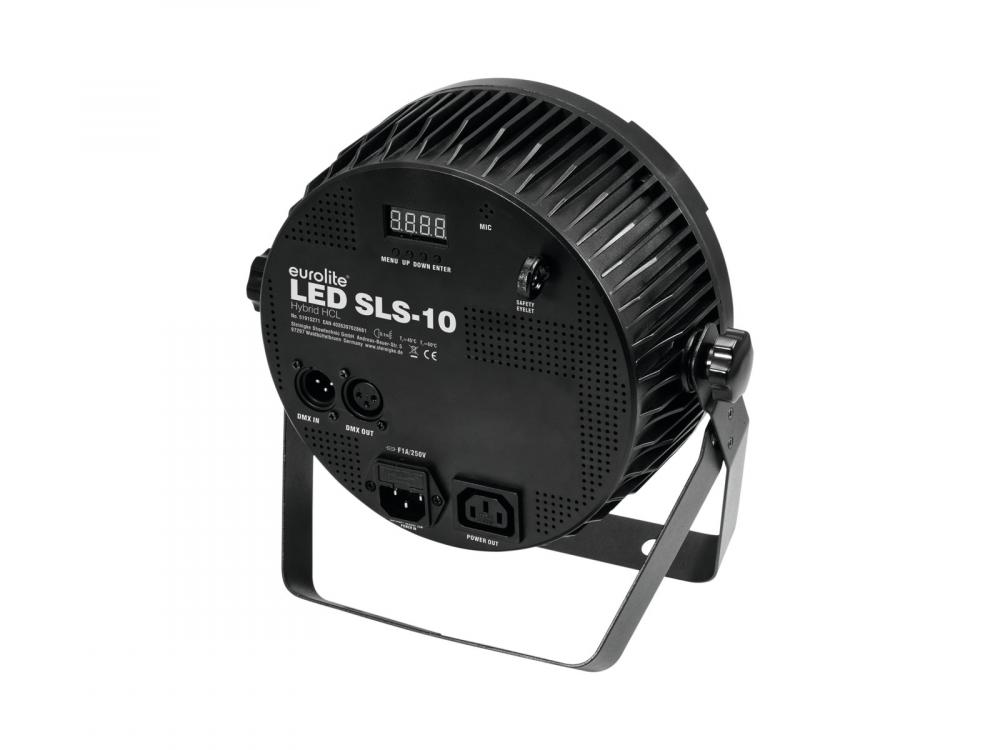

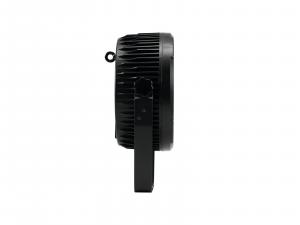

EUROLITE LED SLS-10 Hybrid HCL

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED SLS-10 Hybrid HCL

Info
order code
51915271
product link
EAN
4026397628661
Product Name
EUROLITE LED SLS-10 Hybrid HCL
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Number of DMX channels: 1/3/6/9/27
DMX512 connection: 3-pin XLR
Sound-control: via built in microphone
LED type: 9 x 10 W RGBWA+UV (6in1), 36 x 0.5 W white, 18 x 0.2 W RGB
Beam angle: 28°
Dimensions (LxWxH): 120 x 255 x 285 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Beam angle: 28°
Cooling fan: Yes
IP classification: IP20
Weight: 1,90 kg
Lamp type: LED lamp
Power consumption: 55 W
Laser class: Without laser
Height: 28,5 cm
Depth: 12 cm
Width: 25,5 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 1; 3; 9; 27
LED: 18 x SMD 0,2 W 3in1 TCL RGB (homogenous color mix); 36 x SMD 0,5 W CW (homogenous color mix); 9 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features

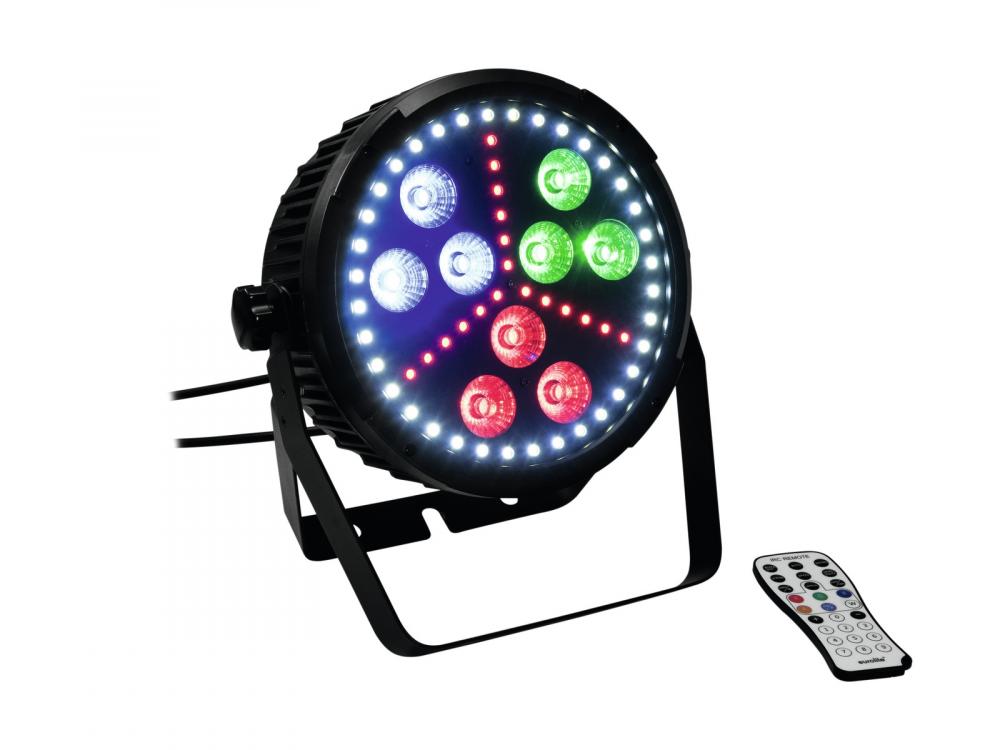

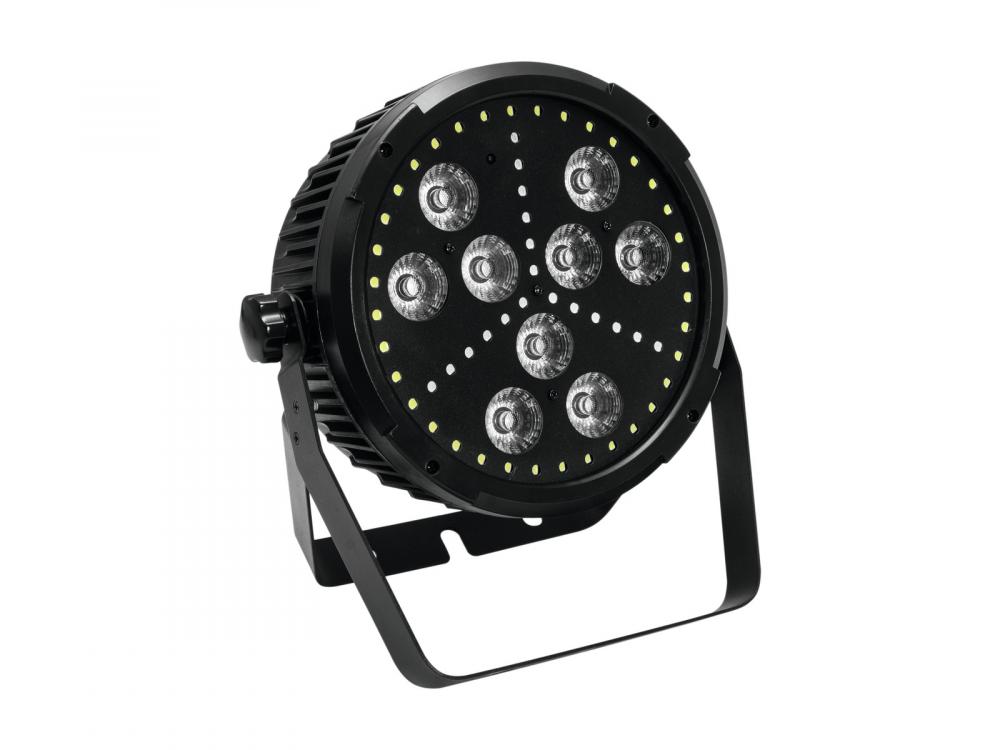

Flat spotlight with RGBAW+UV LEDs (6in1) and stroboscope
-9 high-power 10 W 6in1 LEDs for RGBWA color mixing and blacklight
-36 white 0.5 W LEDs for dynamic strobe effects
-18 additional 0.2 W RGB LEDs for dynamic color and strobe effects
-Auto, music, master/slave and DMX mode
-Built-in auto and music show programs
-Direct color selection for 22 preset colors
-Individual control of all RGBWA+UV and strobe LEDs for use as blacklight, stroboscope or PAR spotlight
-Addressing and setting via control panel with 4-digit LED display
-Convenient wireless control via included IR remote control EUROLITE IR-7
-Sound-control via built-in microphone with adjustable microphone sensitivity
-DMX512 control possible via any commercial DMX controller
-1, 3, 6, 9 oder 27 DMX channels selectable
-Flat housing form requires minimal space when rigging
-Swivel mounting bracket
-Additional bracket for floor use
-Feed-through output allows to power up to 8 devices
-Case color: Black
-Effect: Strobe effect; UV
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 18 x SMD 0,2 W 3in1 TCL RGB (homogenous color mix); 36 x SMD 0,5 W CW (homogenous color mix); 9 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
1 ch
control channels, max
27 ch
Electrical
power consumption watt, max
10.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
active
Mechanical
weight
1.90 kg
width
255.00 mm
height
285.00 mm
length
120.00 mm
Optical
beam angle/zoom, min
28.00 °
beam angle/zoom, max
28.00 °
light source
LED
Number of light sources
18 pcs
wattage per light source
2.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
UV light source
yes
AMBER light source
yes
