Info | |
---|---|
order code |
51915282
|
product link | |
EAN |
4026397561708
|
Product Name |

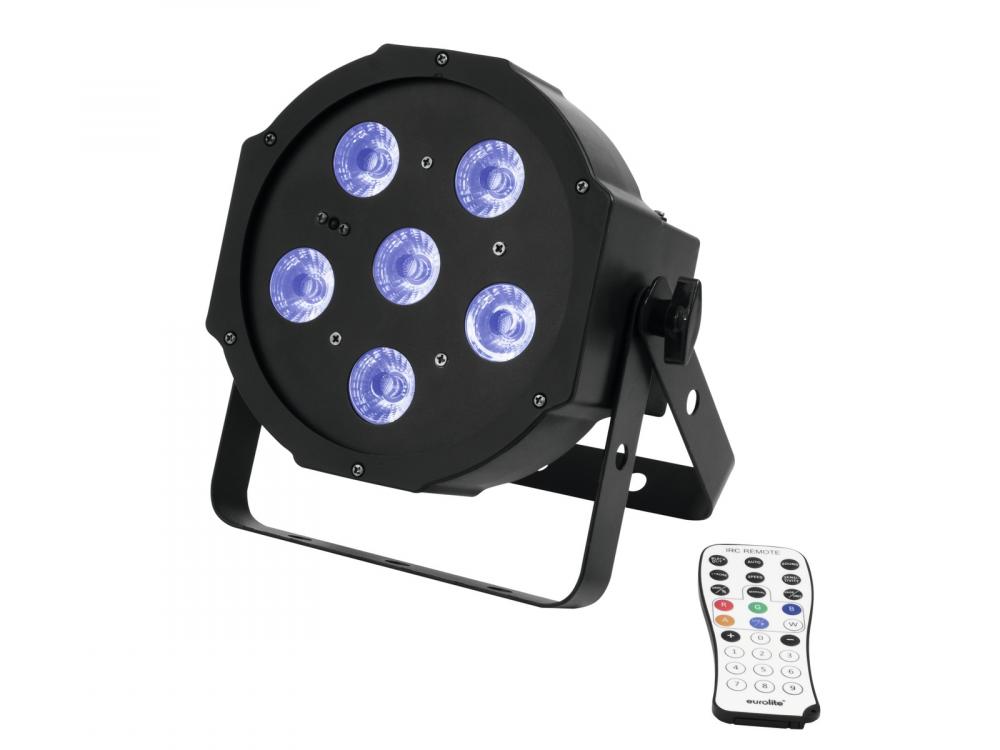

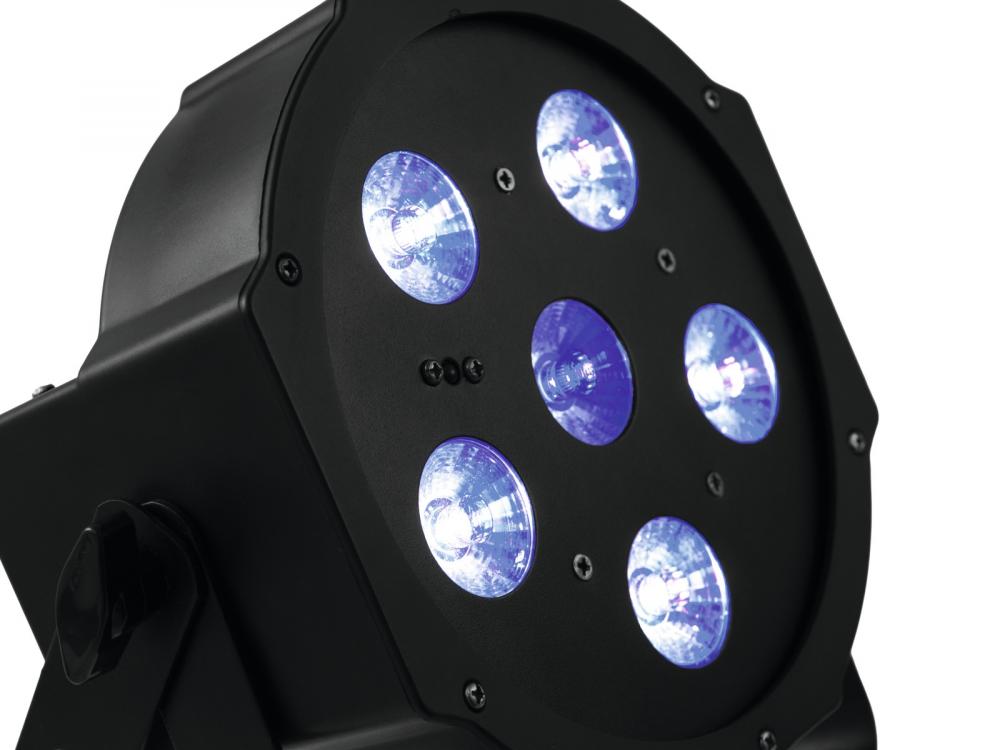

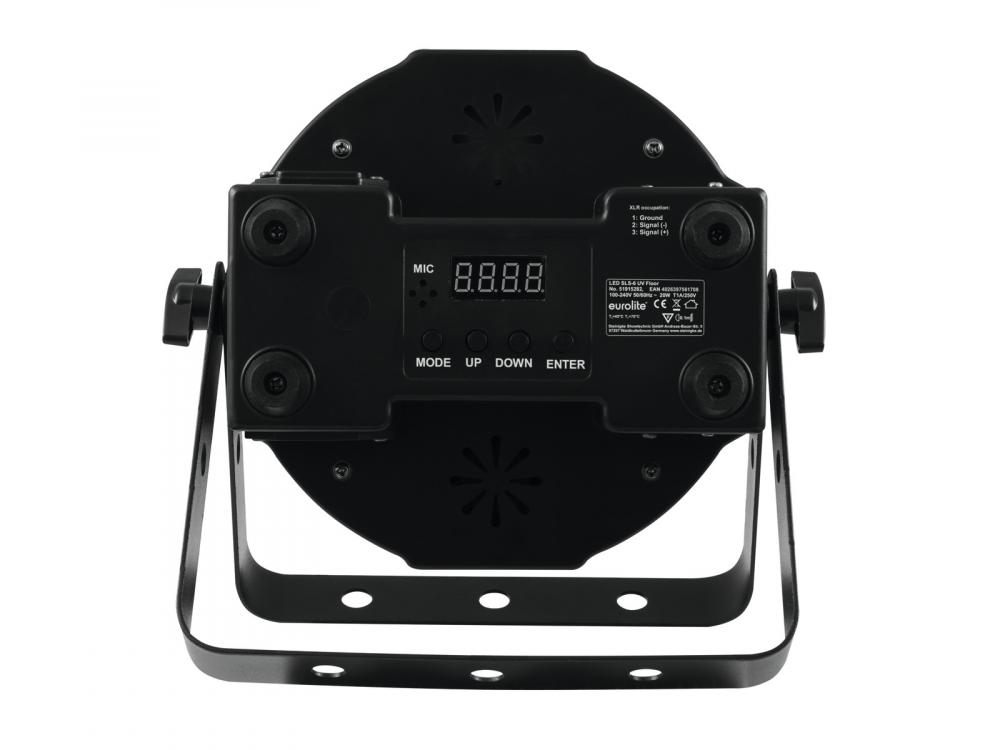

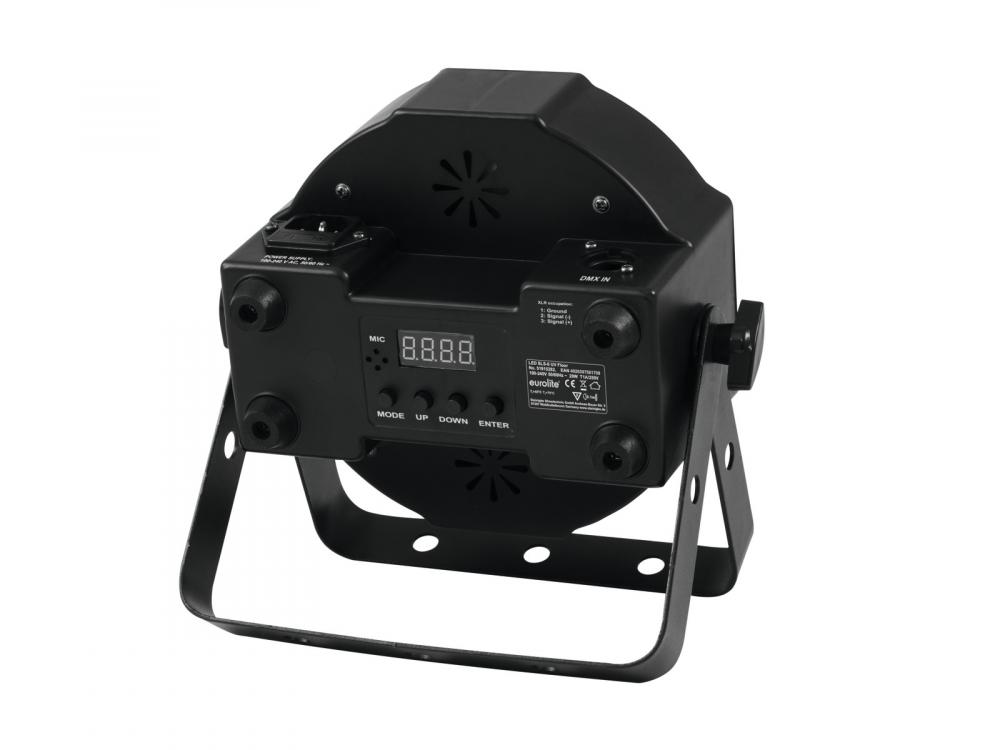

EUROLITE LED SLS-6 UV Floor
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 2/4 DMX connection: 3-pin XLR Sound-control: via built-in microphone LED type: 3 W LED number: 6 x UV Beam angle: 13° Dimensions (L x W x H): 230 x 110 x 230 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP20 Beam angle: 13° Weight: 1 kg Lamp type: LED lamp Power consumption: 20 W Laser class: Without laser Height: 23 cm Width: 23 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 2; 4 Depth: 11 cm LED: 6 x high-power 3 W UV (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
DMX controlled UV spot with 6 x 3 W UV LED -Operable in stand-alone mode or via DMX -DMX512 control possible via any commercial DMX controller (occupies max. 4 channels) -2 or 4 DMX channels selectable for numerous applications -Master/Slave function for synchronous operation with several devices -Sound-control via built-in microphone -Microphone-sensitivity adjustable -Equipped with 6 x 3 W UV LED -Flat housing form requires minimal space when rigging -Designed for hanging or standing installation -Second mounting bracket for safe standing installation -Power supply input and output and DMX input and output oppositely attached to the unit for easier wiring -Additional rubber feet when the spot should be positioned on the floor without mounting bracket -Comfortable addressing and setting via control panel with LED display and four operating buttons -Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery -Functions: Internal programs, dimmer, strobe, sound-control -Programmable internal program speed and strobe effect -Ready for connection via included IEC power cord with safety power plug -Feed-through output allows to power up to 8 devices -Switch-mode power supply for operation between 100 and 240 volts -Case color: Black -Effect: Strobe effect; UV -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Power out: 1 x IEC connector (F) mounting version -Control: IR remote control (provided); Stand-alone; DMX -LED: 6 x high-power 3 W UV (homogenous color mix) |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
2 ch
|
control channels, max |
4 ch
|
Electrical | |
power consumption watt, max |
3.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
1.00 kg
|
width |
230.00 mm
|
height |
230.00 mm
|
length |
110.00 mm
|
Optical | |
beam angle/zoom, min |
13.00 °
|
beam angle/zoom, max |
13.00 °
|
light source |
LED
|
Number of light sources |
6 pcs
|
wattage per light source |
3.00 W
|
