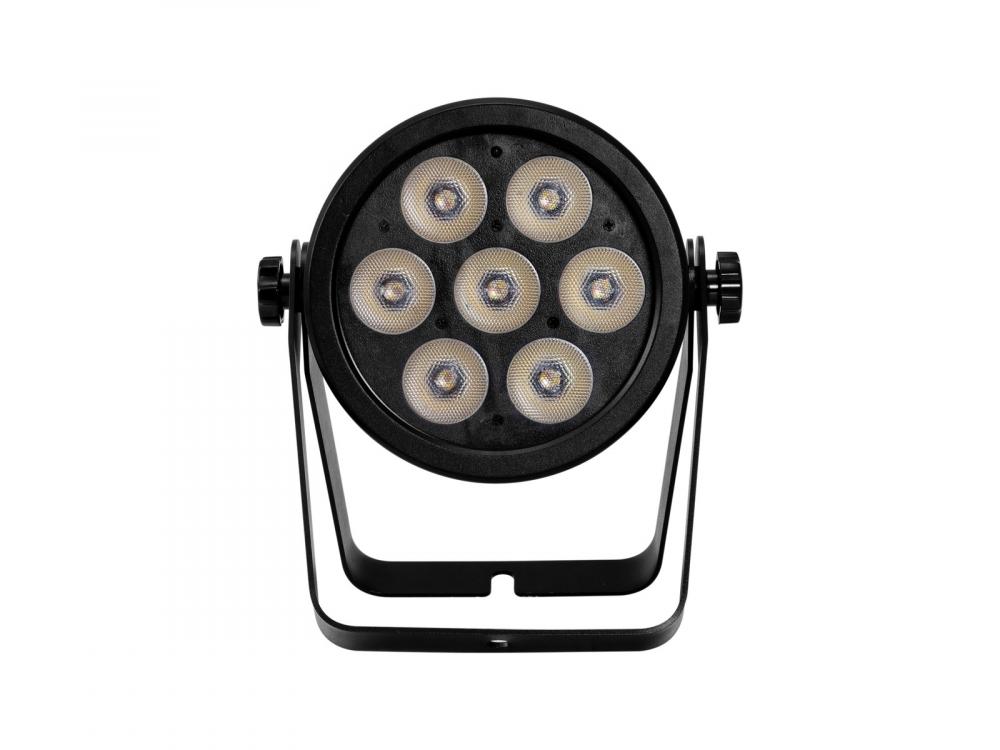

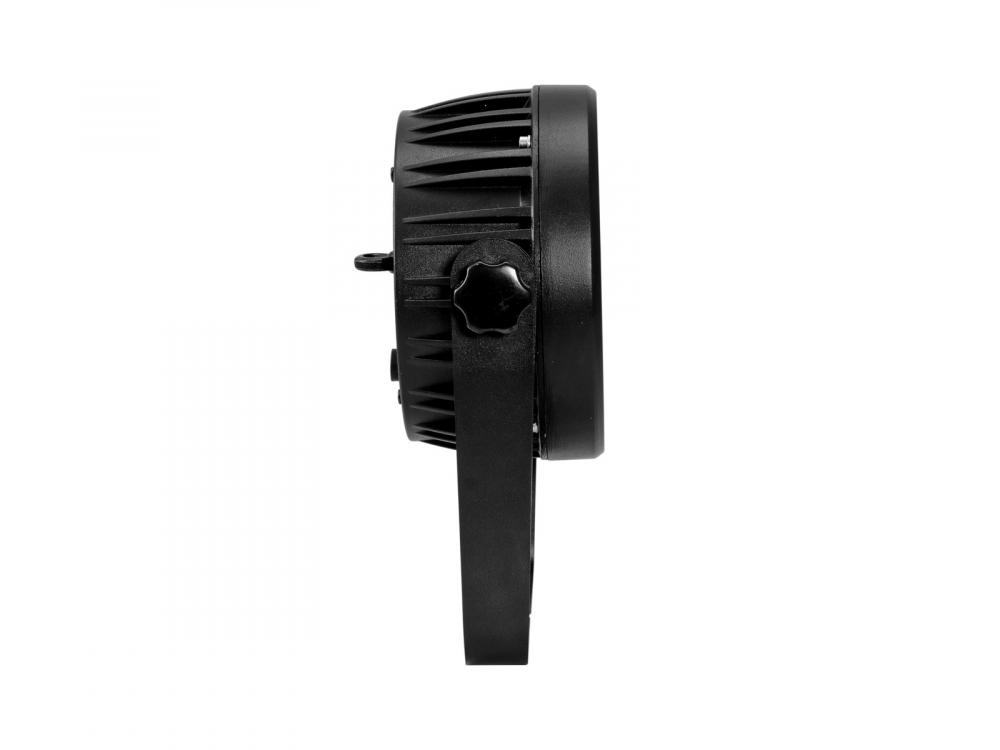

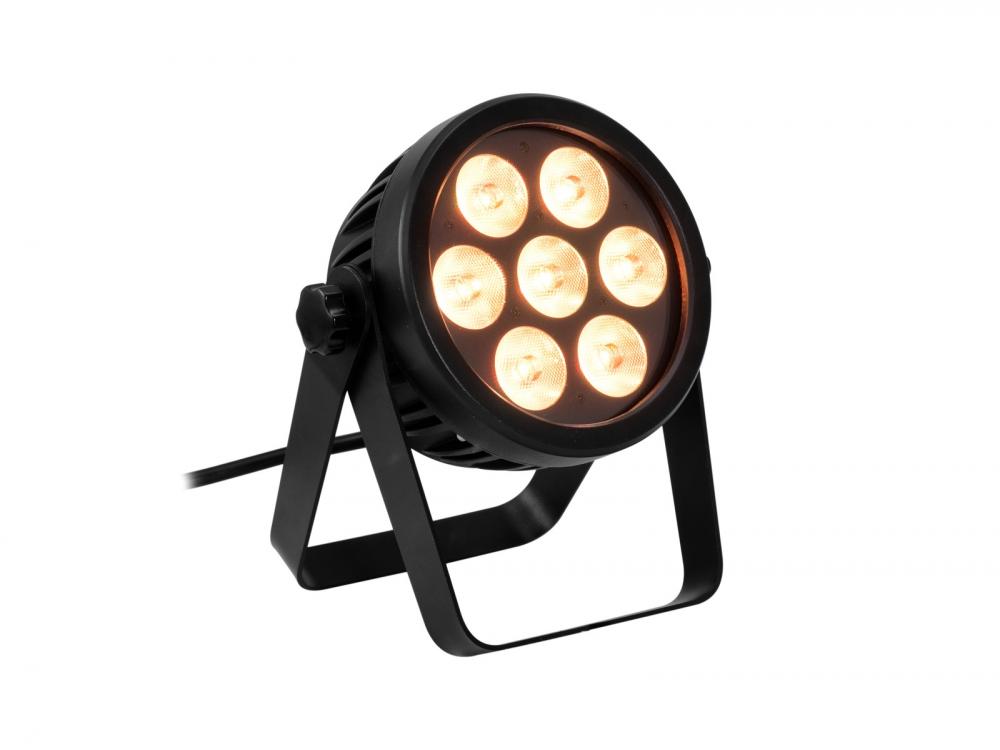

EUROLITE LED 7C-7 Silent Slim Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED 7C-7 Silent Slim Spot

Info
order code
51915320
product link
EAN
4026397645187
Product Name
EUROLITE LED 7C-7 Silent Slim Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX control channels: 3/5/7/9/12
DMX512 connection: 3-pin XLR
QuickDMX connection: USB, type A
Sound-control: via built-in microphone
LED type: 9 W RGBA/CW/WW+UV (7in1)
LED number: 7
Beam angle: 15°
Flash rate: 20 Hz
Dimensions (LxWxH): 110 x 220 x 255 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Weight: 2,60 kg
Lamp type: LED lamp
Beam angle: 15°
Power consumption: 45 W
Cooling fan: No, cooling by convection
Laser class: Without laser
Width: 22 cm
Depth: 11 cm
Height: 25,5 cm
Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M)
LED: 7 x high-power 9 W 7in1 SCL RGBW/WW/A/UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Inaudible 7in1 PAR spotlight in a space-saving design
-7 high power 9 W RGBA/CW/WW+UV LEDs (7in1)
-Silent operation
-Convection cooling entirely via cooling ribs, no fans
-Auto, music, master/slave and DMX mode
-Built-in auto and music show programs
-Direct color selection for 27 preset colors
-Color temperature adjustable in 6 steps (2700-8000 K)
-RGBA/CW/WW+UV color blend, dimmer and strobe settings
-DMX512 control possible via any commercial DMX controller
-3, 5, 7, 9 or 12 DMX channels selectable for numerous applications
-Sound-control via built-in microphone with adjustable microphone sensitivity

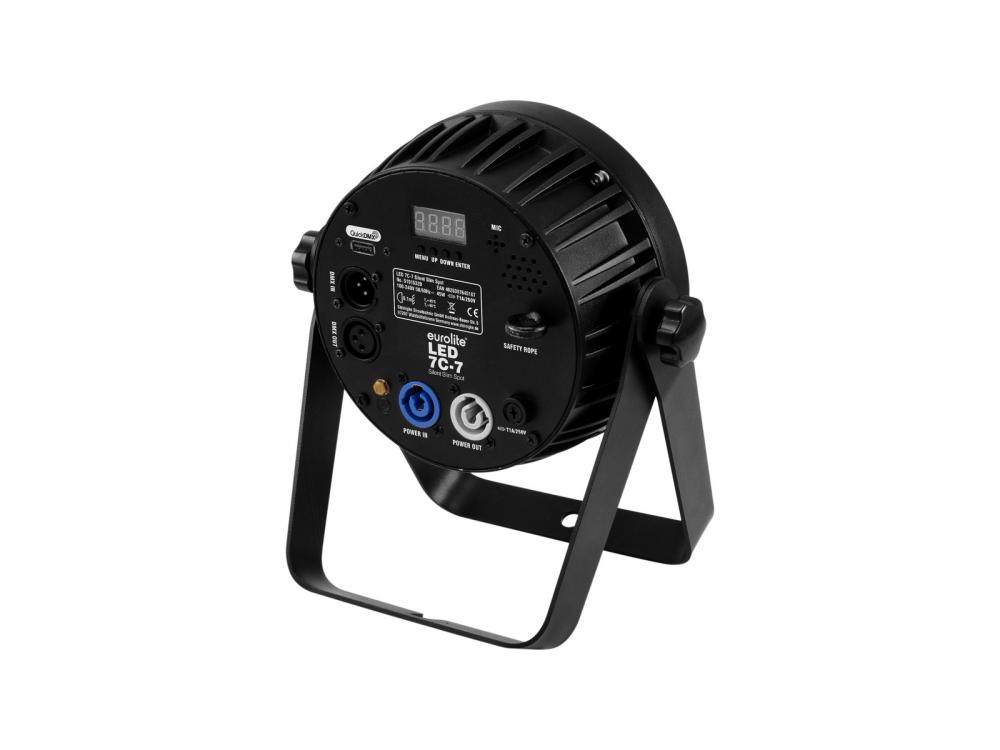

-Addressing and setting via control panel with 4-digit LED display

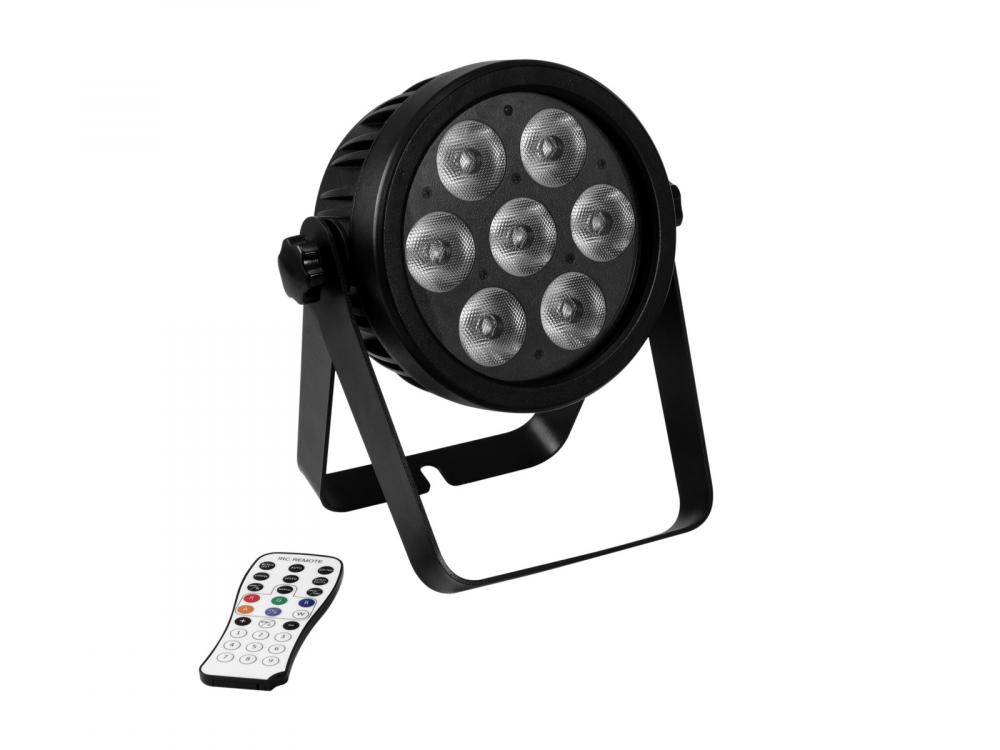

-Convenient wireless control via included IR remote control EUROLITE IR-7
-Supports QuickDMX - the wireless DMX system from Eurolite
-Built-in phantom-powered USB port for QuickDMX receivers (accessories)
-Flat housing form requires minimal space when rigging
-Swivel mounting bracket
-Additional bracket for floor use
-Feed-through output allows to power up to 8 devices
-Power connection via P-Con jack and included power cable with safety plug
-Case color: Black
-Effect: Strobe effect
-Projection: flicker-free
-Color rendering index (CRI) more than: 90 Ra
-Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
-Power out: 1 x P-Con (Power out) gray, mounting version
-Control: QuickDMX USB; IR remote control (provided); Stand-alone; DMX
-LED: 7 x high-power 9 W 7in1 SCL RGBW/WW/A/UV (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
3 ch
control channels, max
12 ch
Electrical
power consumption watt, max
9.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
cooling
passive
Mechanical
weight
2.60 kg
width
220.00 mm
height
255.00 mm
length
110.00 mm
Optical
beam angle/zoom, min
15.00 °
beam angle/zoom, max
15.00 °
light source
LED
Number of light sources
7 pcs
wattage per light source
9.00 W
multichip LED
yes
WARM WHITE LED source
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
UV light source
yes
shutter/strobe frequency, max
20 Hz
