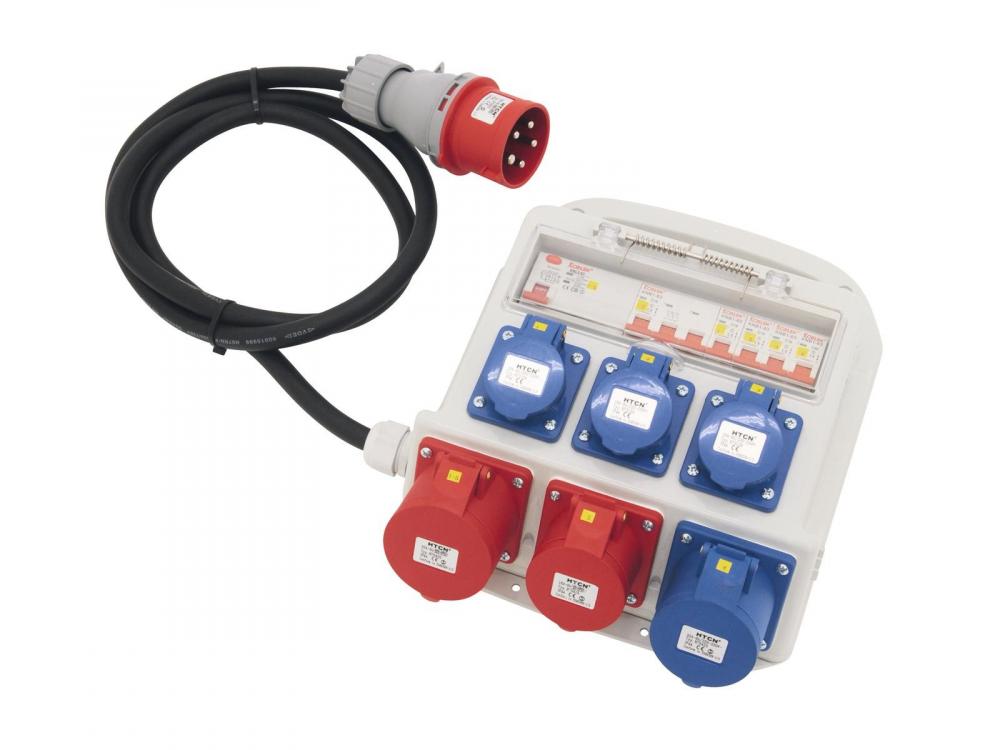

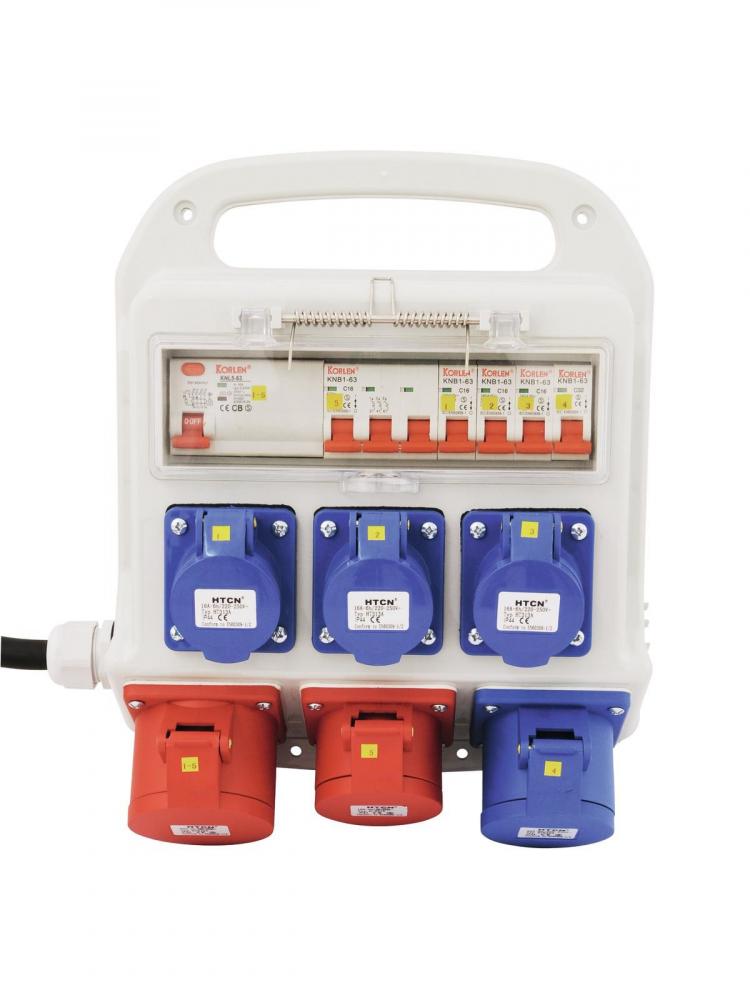

EUROLITE SBP-3210K Power Distributor

EUROLITE

1
2

Technical specifications, datasheets, descriptions and tender texts for EUROLITE SBP-3210K Power Distributor

Info
order code
30245521
product link
EAN
4026397462357
Product Name
EUROLITE SBP-3210K Power Distributor
technical overview
Power supply: 380-400 V AC, 50 Hz
Max. power output: 22080 W
Max. total current: 96 A
Max. output/phase (32 A CEE): 7360 W
Max. current/phase (32 A CEE): 32 A
Max. output/phase (16 A CEE): 3680 W
Max. current/phase (16 A CEE): 16 A
Max. output/channel (safety socket): 3680 W
Max. current/channel (safety socket): 16 A
Dimensions (L x W x H): 350 x 340 x 130 mm
Weight: 4,5 kg
Height: 13 cm
Depth: 35 cm
Width: 34 cm
Power connection: Fix Power supply cord with CEE 32A 5-pin (M)
main features
Power distributor 3 x 32 A, 1 x 16 A, 3 x 230 V
-Plastic box with 3 safety sockets
-1 x 32 A CEE input with 2 meter cable
-1 x 32 A CEE output, 5-pin
-1 x 32 A CEE output, 3-pin
-1 x 16 A CEE output, 5-pin
-The entire distributor is secured via 30 mA Residual Current Device (RCD)
-Power connection: Fix Power supply cord with CEE 32A 5-pin (M)
-Power out: 3 x CEE 16A 3-pol (f) recessed mounting fused; 1 x CEE 32A 5-pol (f) recessed mounting Bypass; 1 x CEE 32A 3-pol (f) recessed mounting fused; 1 x CEE 16A 5-pol (f) recessed mounting fused
Electrical
power consumption amps, max
32.00 A
power consumption watt, max
22080.00 W
AC Volts, min
380 V
AC Volts, max
400 V
power input connector
fixed
Mechanical
weight
4.50 kg
width
340.00 mm
height
130.00 mm
length
350.00 mm
