EUROLITE SB-1000 Power Distributor

EUROLITE

1
2

Technical specifications, datasheets, descriptions and tender texts for EUROLITE SB-1000 Power Distributor

Info
order code
30248370
product link
EAN
4026397615296
Product Name
EUROLITE SB-1000 Power Distributor
technical overview
Power supply: 380-400 V AC, 50 Hz
Max. power: 11040 W
Max. power/phase: 3680 W
Max. current/phase: 16 A
Height: 2 U
Dimensions (W x D x H): 485 x 210 x 90 mm
Weight: 2,3 kg
Height: 8,9 cm
Depth: 21 cm
Width: 48,3 cm
Power connection: Mains Input Socket (M) CEE 16A 5-pol (m) recessed mounting
main features
Practical 16 A distributor in 483 mm housing (19")
-Designed for mounting in 483 mm racks (19")
-2U necessary for installation
-16A three-phase current input and output via mounted plugs
-Control lamps indicate each phase

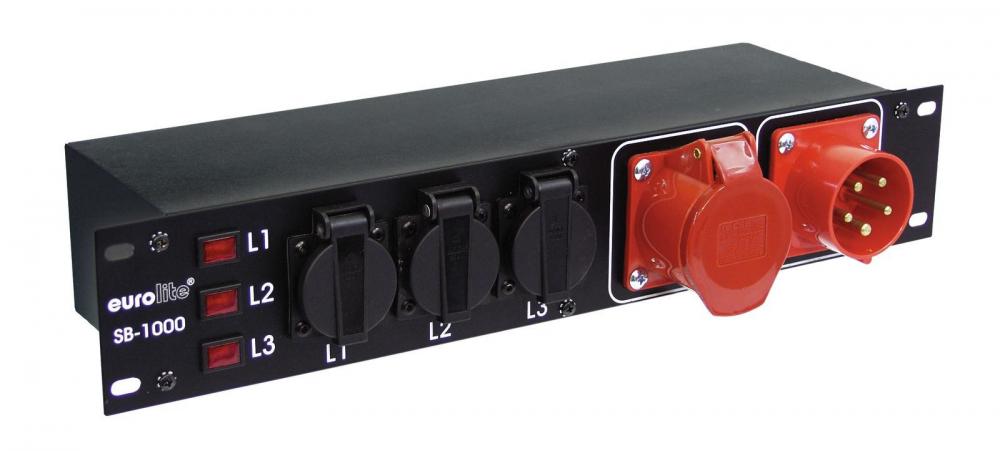

-3 safety sockets on the housing front (1 per phase)

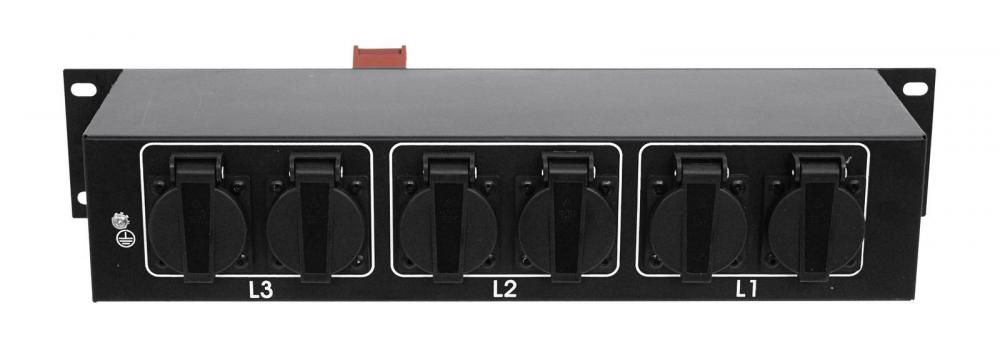

-6 safety sockets on the housing back (2 per phase)
-Height unit: 2 U
-Housing design: (19") 48,3 cm rack installation
-Power connection: Mains Input Socket (M) CEE 16A 5-pol (m) recessed mounting
-Power out: 9 x Protective contact (F) hinged lid mounting version; 1 x CEE 16A 5-pol (f) recessed mounting
Electrical
power consumption amps, max
16.00 A
power consumption watt, max
11040.00 W
AC Volts, min
380 V
AC Volts, max
400 V
Mechanical
weight
2.30 kg
width
485.00 mm
height
89.00 mm
length
210.00 mm
