Info | |
---|---|
order code |
30248380
|
product link | |
EAN |
4026397288049
|
Product Name |
EUROLITE SB-1200 Power Distributor 63A
|
technical overview |
Power supply: 380-400 V AC, 50 Hz Max. power: 43470 W Max. power/phase: 14490 W Max. current/phase: 63 A Fuses: 2 x C16A 3 Ph, 2 x C32A 3 Ph, FI/RCD 63A/0.03A Dimensions (W x D x H): 485 x 310 x 132 mm Rack installation with 3 U Weight: 8,00 kg Height: 13,35 cm Depth: 31 cm Width: 48,3 cm Power connection: Fix CEE 63A 5-pin (M) |
main features |

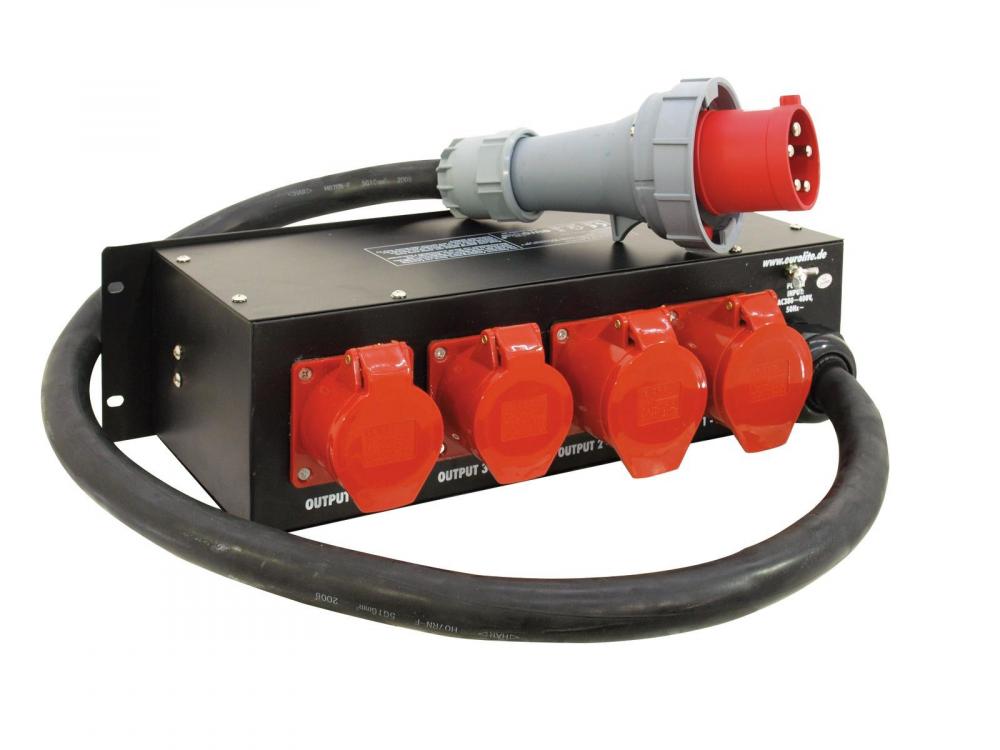

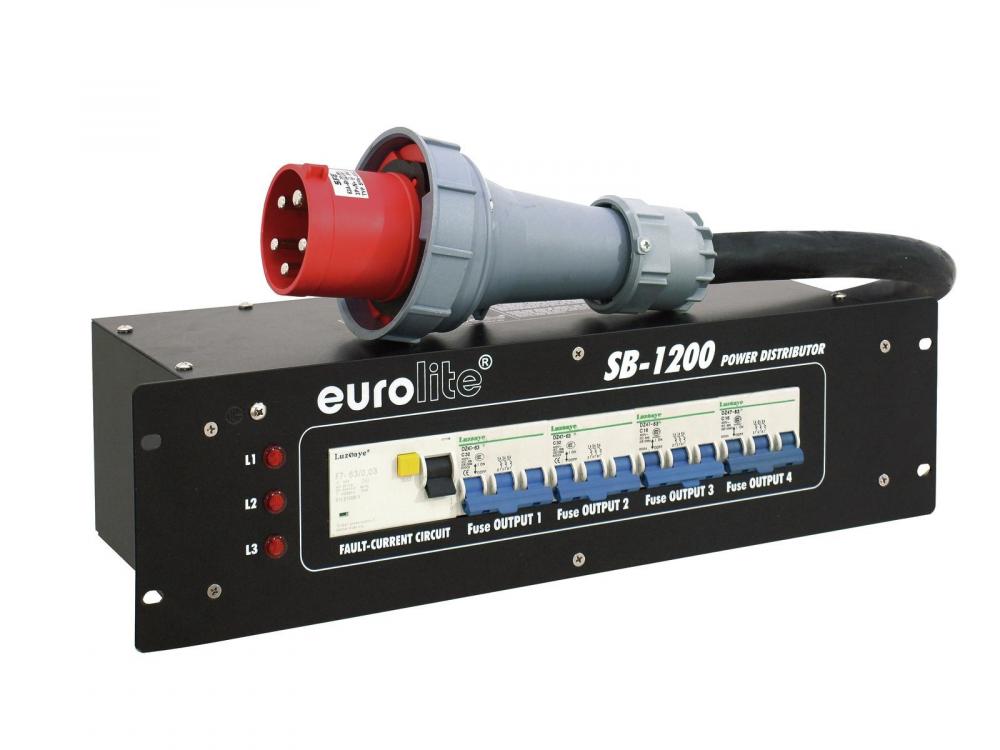

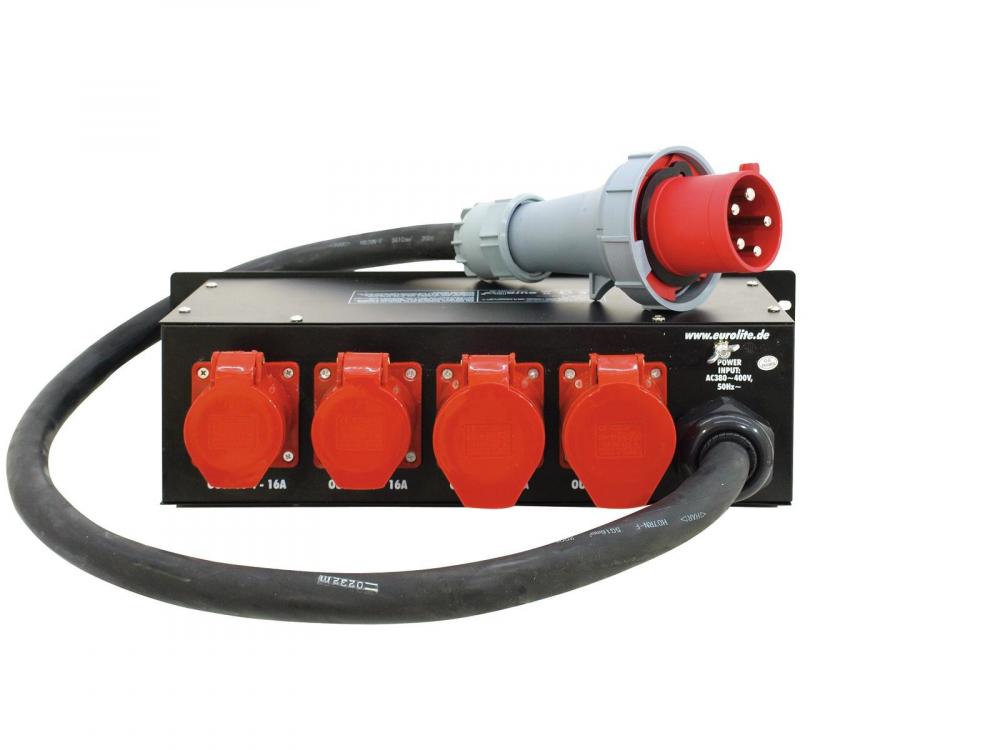

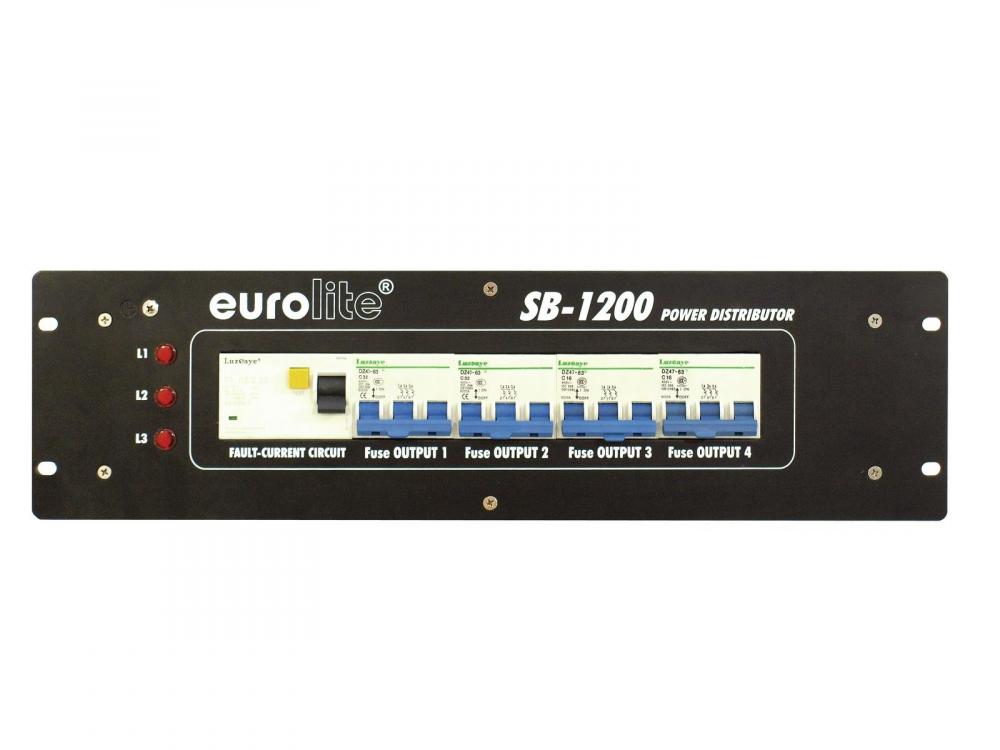

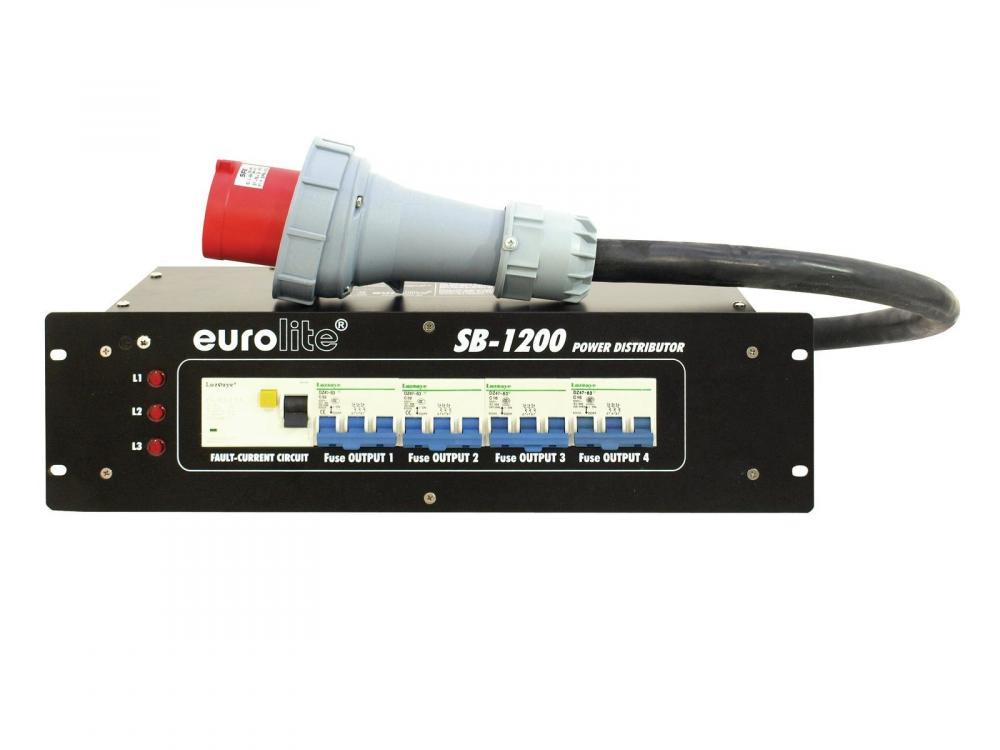

Practical 63 A distributor in 483 mm housing (19") -Specially designed for larger distribution needs -3 U necessary for installation -63 A three-phase current input via 1 meter long 5 x 16 mm² power cable and plug -The entire distributor is secured via 30 mA Residual Current Device (RCD) -2 x 32 A three-phase current outputs via mounted sockets, each individually secured on the rearpanel by a 3-pole 32 A circuit breaker -2 x 16 A three-phase current outputs via mounted sockets, each individually secured on the rearpanel by a 3-pole 16 A circuit breaker -Control lamps indicate each phase -With earthing screw in order to ground a rigg if necessary -Height unit: 3 U -Housing design: (19") 48,3 cm rack installation -Power connection: Fix CEE 63A 5-pin (M) -Power out: 2 x CEE 32A 5-pol (f) recessed mounting fused; 2 x CEE 16A 5-pol (f) recessed mounting fused |
Electrical | |
AC Volts, min |
380 V
|
AC Volts, max |
400 V
|
power consumption amps, max |
63.00 A
|
power consumption watt, max |
43470.00 W
|
Mechanical | |
weight |
8.00 kg
|
width |
483.00 mm
|
height |
132.00 mm
|
length |
310.00 mm
|
height in rack-units |
3 U
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00083721.pdf |
