Info | |
---|---|
order code |
30248499
|
product link | |
EAN |
4026397324402
|
Product Name |
EUROLITE SBL-2000 Power Distributor
|
technical overview |
Power supply: 380-400 V AC, 50 Hz Max. power output: 22080 W Max. output/phase: 7360 W Max. current/phase: 32 A Max. output/channel (multipin): 3680 W Max. current/channel (multipin): 16 A Fuses: 12 x 16A 1 Ph, FI/RCD 40A/0.03A Height: 4 U Dimensions (W x D x H): 482 x 210 x 176 mm Weight: 6 kg Height: 17,8 cm Depth: 21 cm Width: 48,3 cm Power connection: Mains Input Socket (M) CEE 32A 5-pol (m) recessed mounting |
main features |

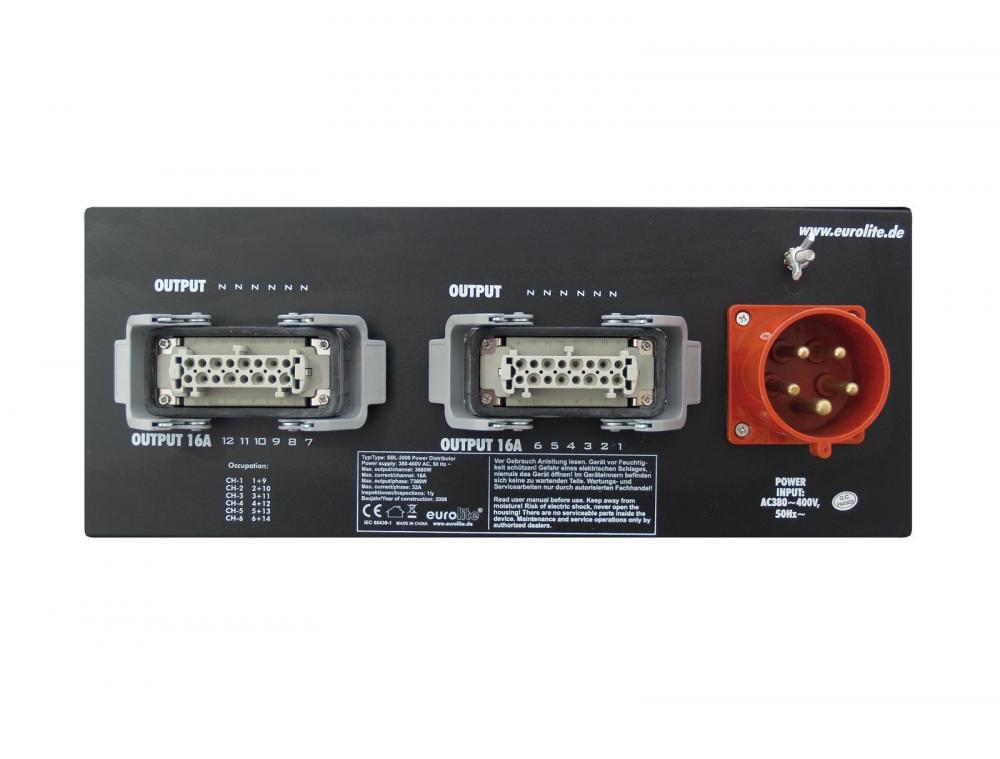

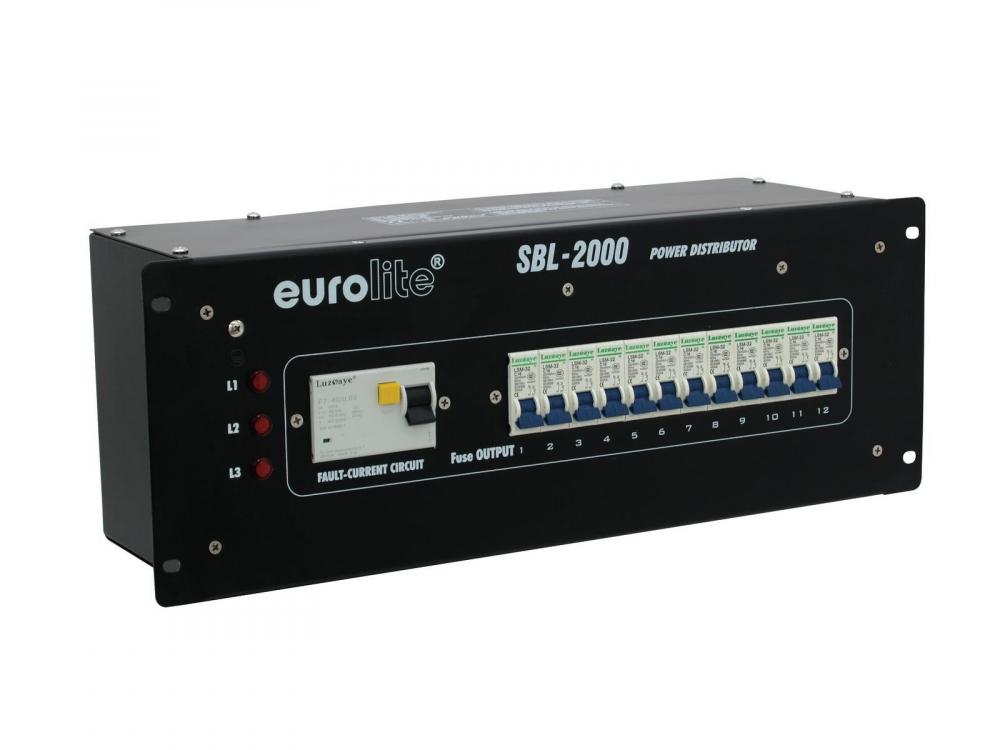

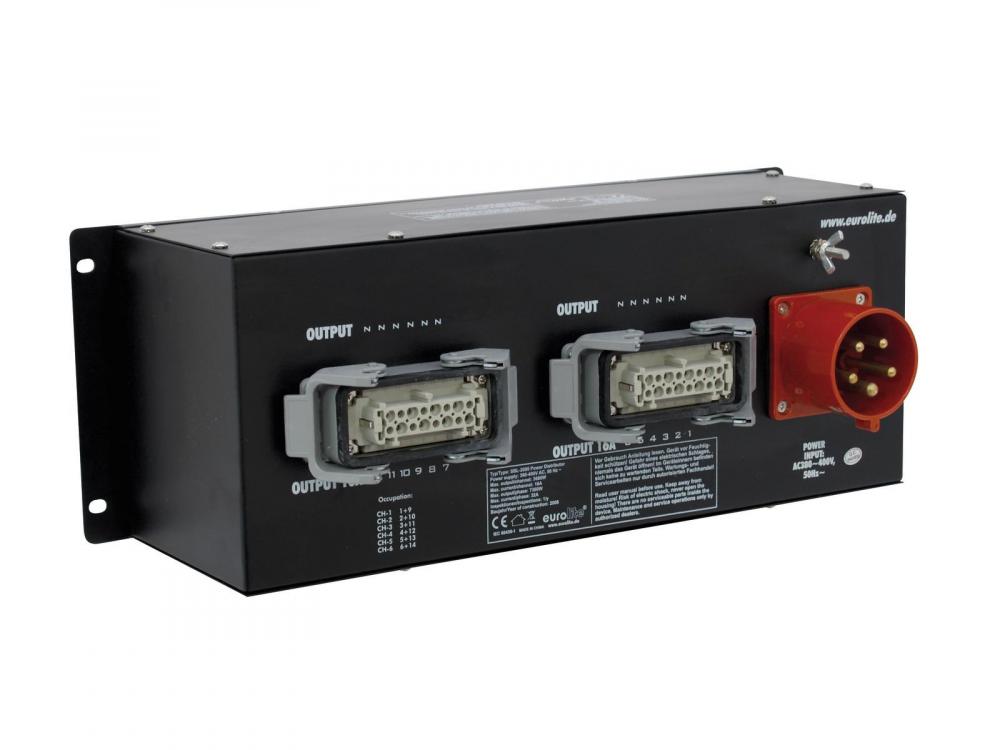

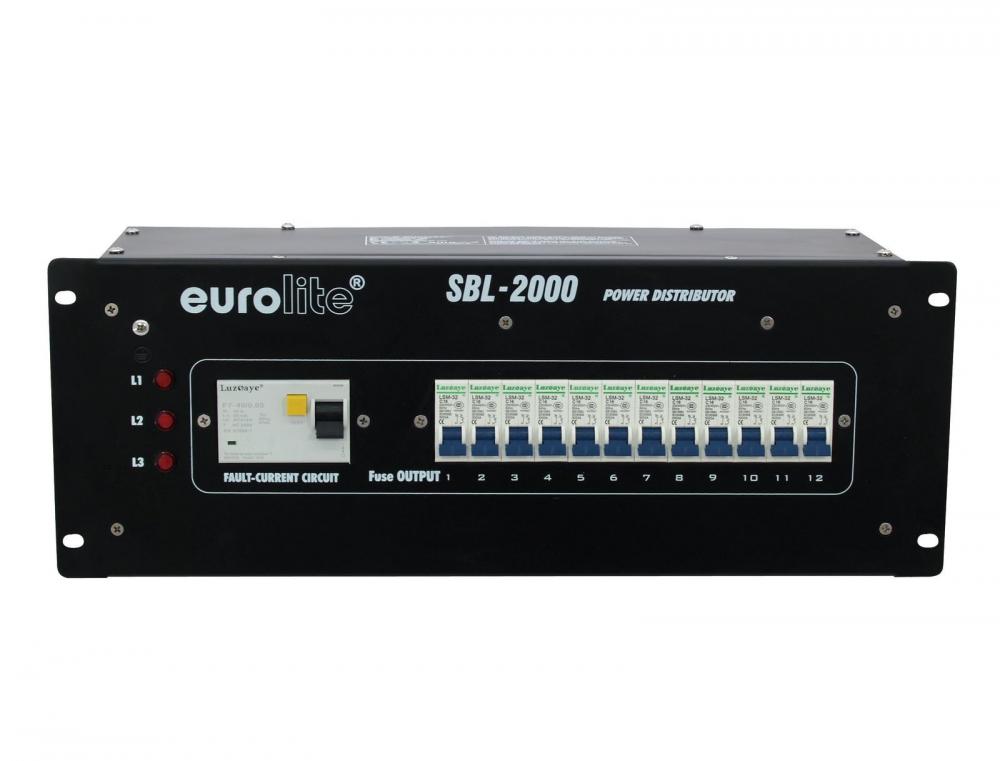

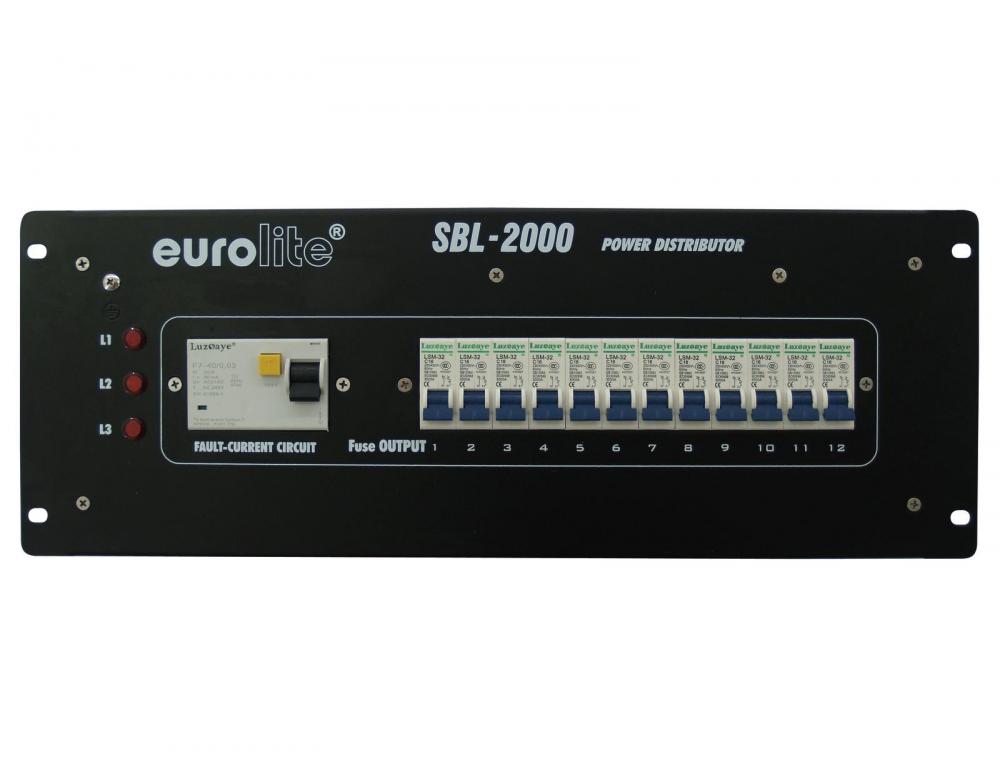

Practical 32 A distributor in 483 mm housing (19") -12 x 2-pin fuse breakers (16 A - disconnects neutral wire) -Specially designed for larger distribution needs -4 U necessary for installation -32 A three phase current input via 5-pin CEE plug -2 x 16-pin multi-connector output -The entire distributor is secured via 30 mA Residual Current Device (RCD) -Control lamps indicate each phase -With earthing screw in order to ground a rigg if necessary -Height unit: 4 U -Housing design: (19") 48,3 cm rack installation -Power connection: Mains Input Socket (M) CEE 32A 5-pol (m) recessed mounting -Power out: 2 x 16-pin multi-pin (f) fitted version fused |
Electrical | |
AC Volts, min |
380 V
|
AC Volts, max |
400 V
|
power consumption amps, max |
32.00 A
|
power consumption watt, max |
22080.00 W
|
Mechanical | |
weight |
6.00 kg
|
width |
483.00 mm
|
height |
178.00 mm
|
length |
210.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00032559.pdf |
