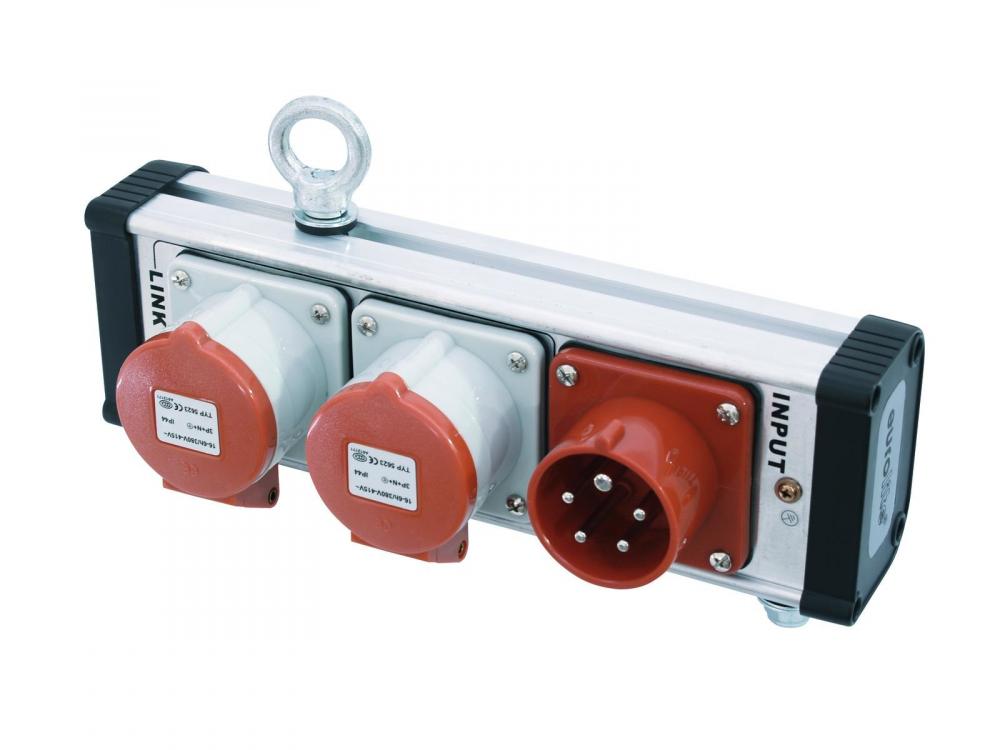

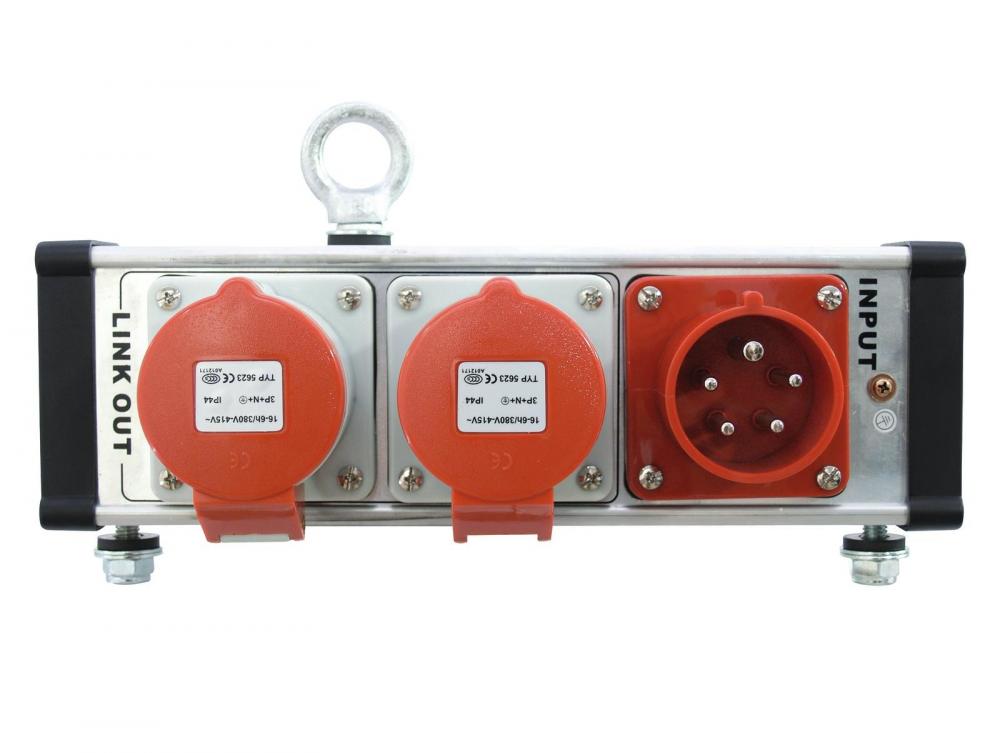

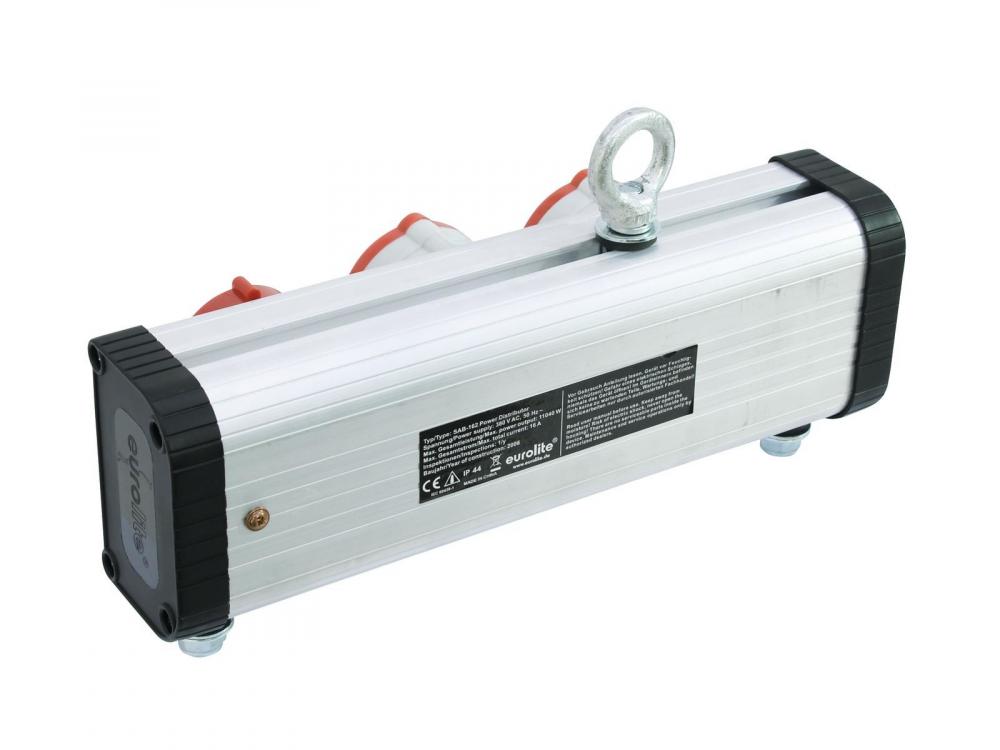

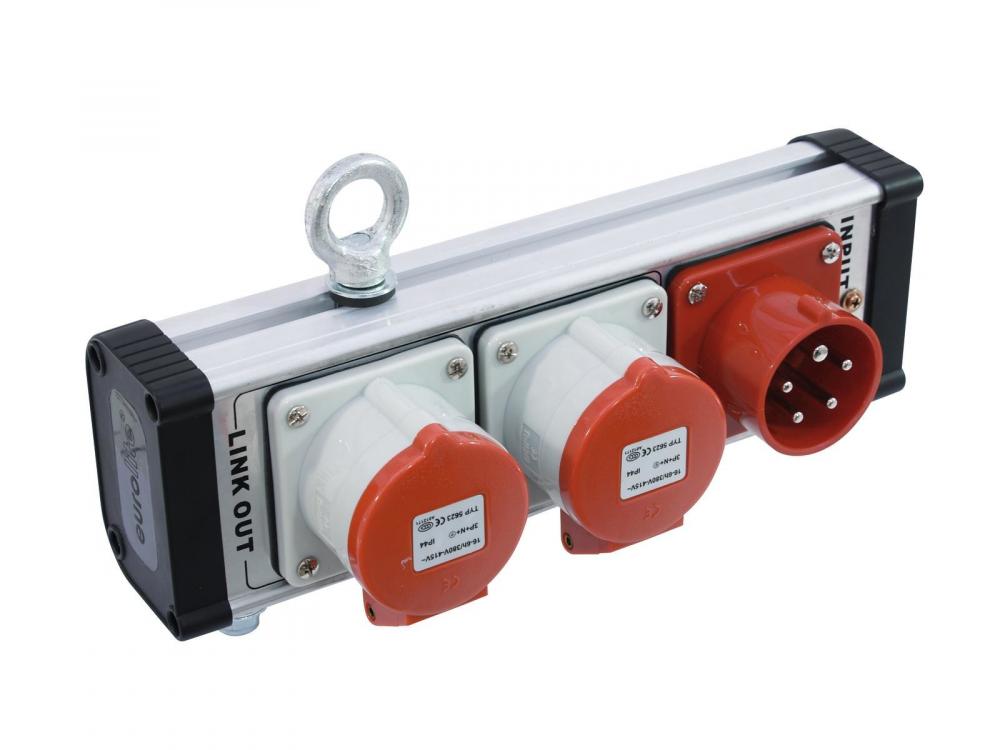

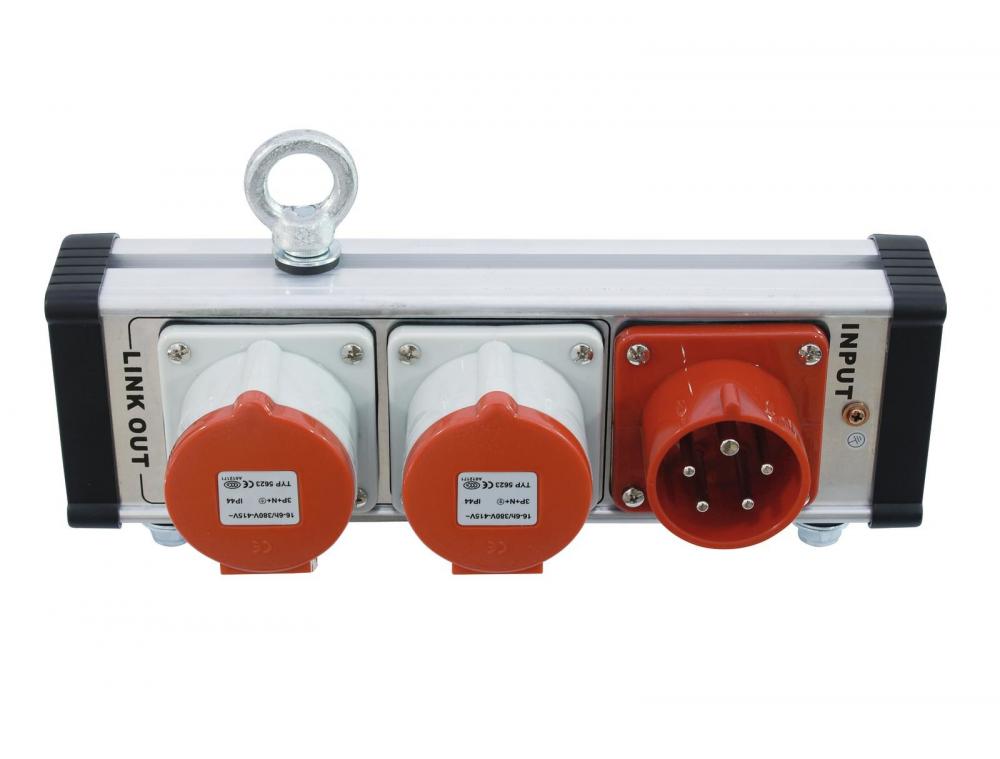

EUROLITE SAB-322 Power Split Box
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE SAB-322 Power Split Box
| Info | |
|---|---|
| order code |
60003737
|
| product link | |
| EAN |
4026397594447
|
| Product Name |
EUROLITE SAB-322 Power Split Box
|
| technical overview |
Power supply: 380 V AC, 50 Hz Max. power: 22080 W Max. power/channel: 11040 W Max. current/channel: 32 A Dimensions (L x W x H): 290 x 150 x 125 mm Weight: 1,59 kg Height: 12,5 cm Width: 15 cm Length: 29 cm Power connection: Mains Input Socket (M) CEE 32A 5-pol (m) recessed mounting |
| main features |
Heavy-duty power split box with CEE input -1 x 5-pin 32 A CEE input -2 x 5-pin 32 A CEE output -Incl. safety eyelet -Robust aluminum profile housing -Power connection: Mains Input Socket (M) CEE 32A 5-pol (m) recessed mounting -Power out: 2 x CEE 32A 5-pol (f) recessed mounting |
| Electrical | |
| AC Volts, min |
380 V
|
| AC Volts, max |
380 V
|
| total power rating per phase/channel, max |
32 A
|
| power consumption amps, max |
32.00 A
|
| power consumption watt, max |
22080.00 W
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| Mechanical | |
| weight |
1.59 kg
|
| width |
150.00 mm
|
| height |
125.00 mm
|
| length |
290.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00120119.pdf |
