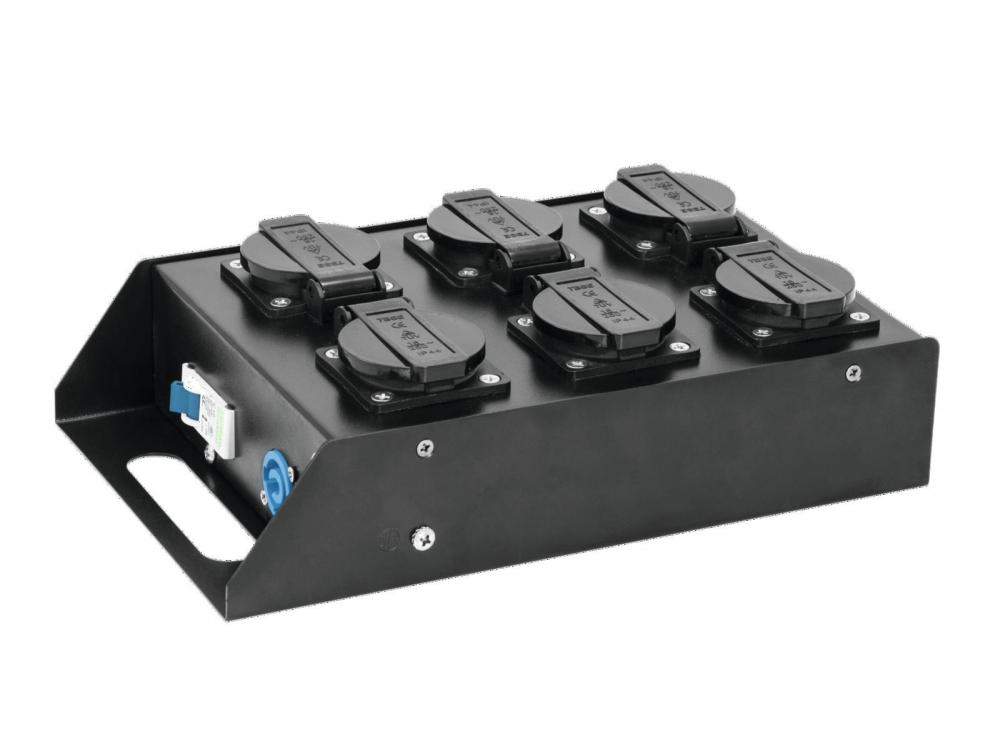

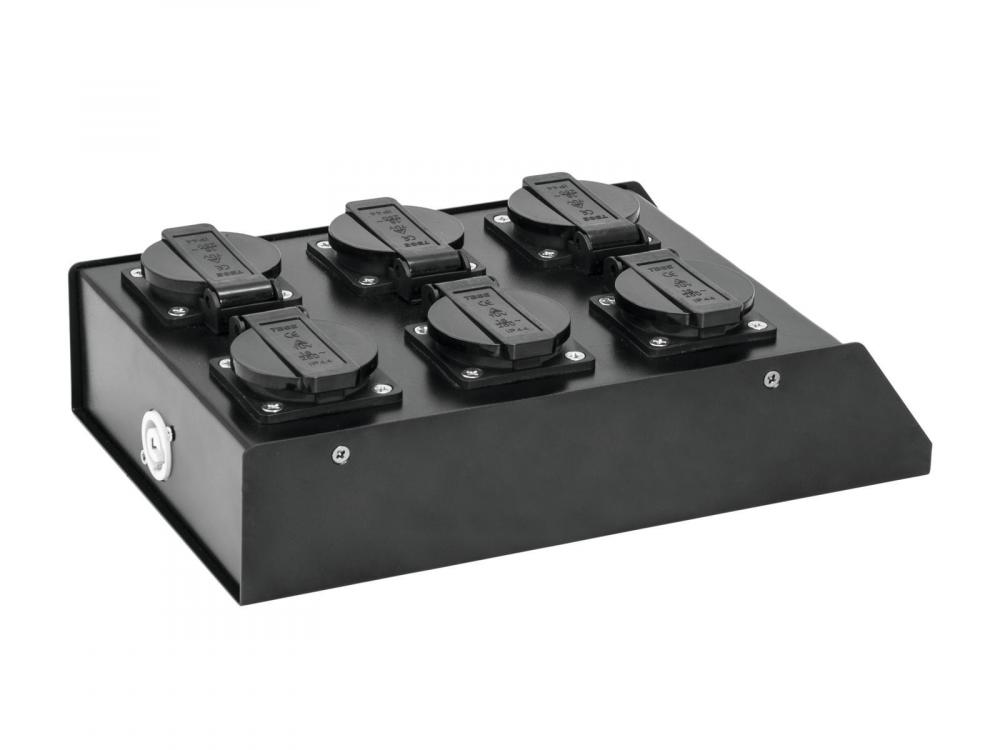

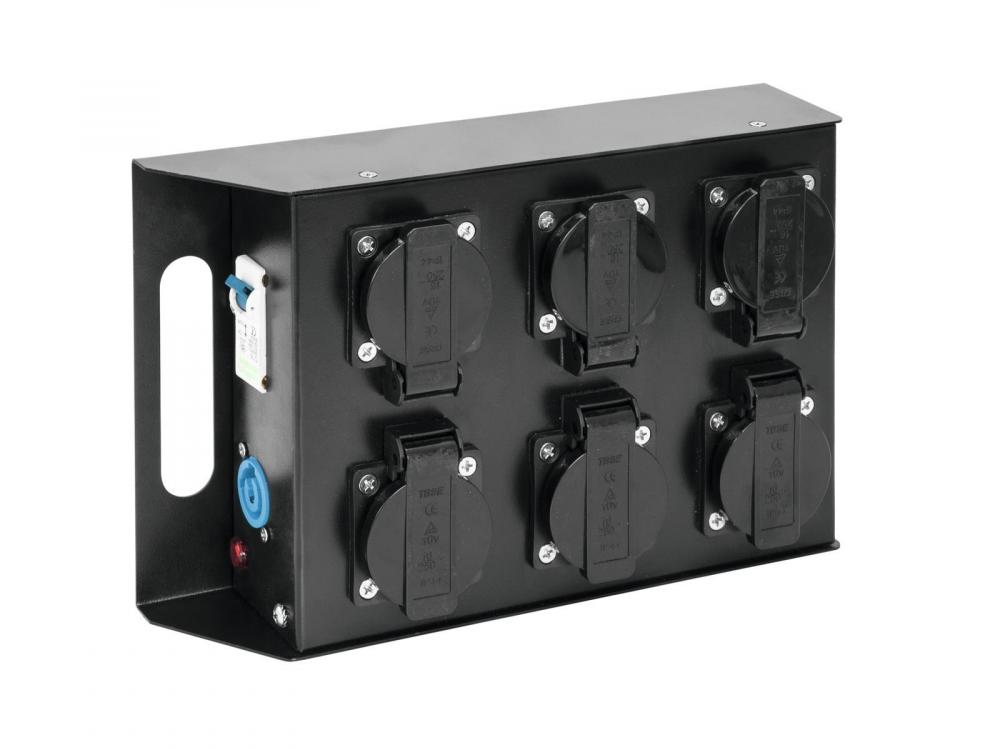

EUROLITE SAB-61 Power Split Box

EUROLITE

1
2
3

Technical specifications, datasheets, descriptions and tender texts for EUROLITE SAB-61 Power Split Box

Info
order code
60003745
product link
EAN
4026397586503
Product Name
EUROLITE SAB-61 Power Split Box
technical overview
Power supply: 230 V AC, 50 Hz
Max. power: 3680 W
Max. current 16 A
Dimensions (L x W x H): 262 x 160 x 75 mm
Weight: 1,4 kg
Height: 7,5 cm
Width: 17 cm
Length: 26,2 cm
Power connection: Mains Input Socket (M) P-Con (Power-In)
Power supply: 230 V AC, 50 Hz
main features
Heavy-duty power split box with P-Con input and output
-1 x P-Con input, 1 x P-Con bypass
-6 flap safety plugs
-Designed for flexible use on stage
-Robust steel housing
-Protection fuse: LS C16 A/230 V
-Power out: 6 x Protective contact (F) hinged lid mounting version fused; 1 x P-Con (Power out) gray, mounting version Bypass
-Power connection: Mains Input Socket (M) P-Con (Power-In)
Electrical
AC Volts, min
230 V
AC Volts, max
230 V
power consumption amps, max
16.00 A
power consumption watt, max
3680.00 W
power input connector
Powercon
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
Mechanical
weight
1.40 kg
width
170.00 mm
height
75.00 mm
length
20.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00102598.pdf
