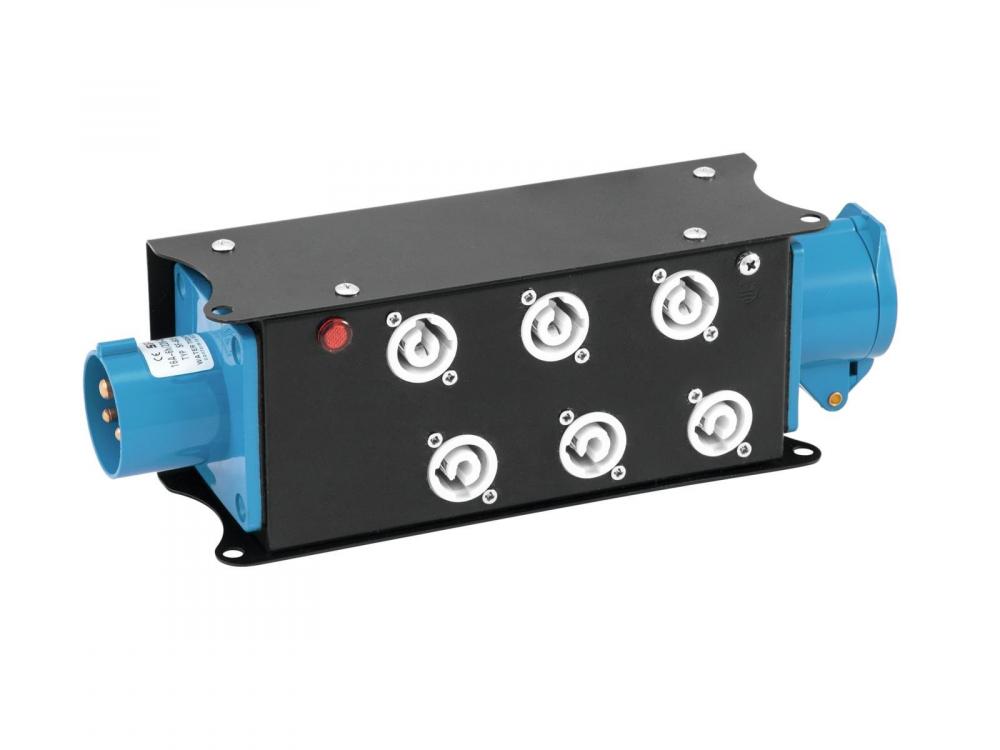

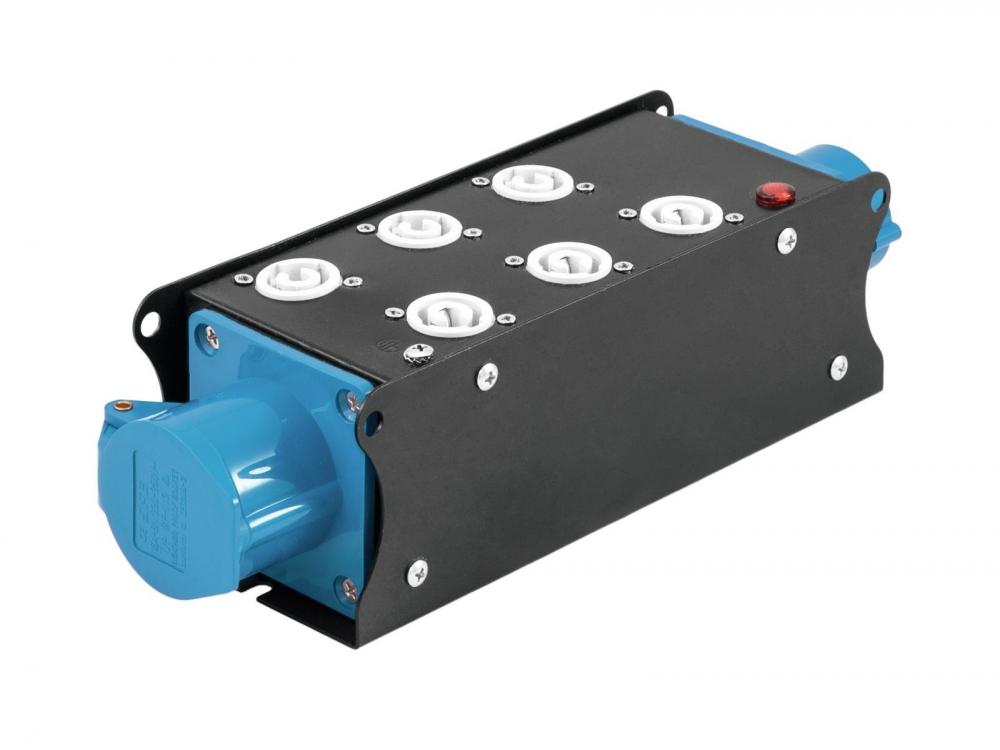

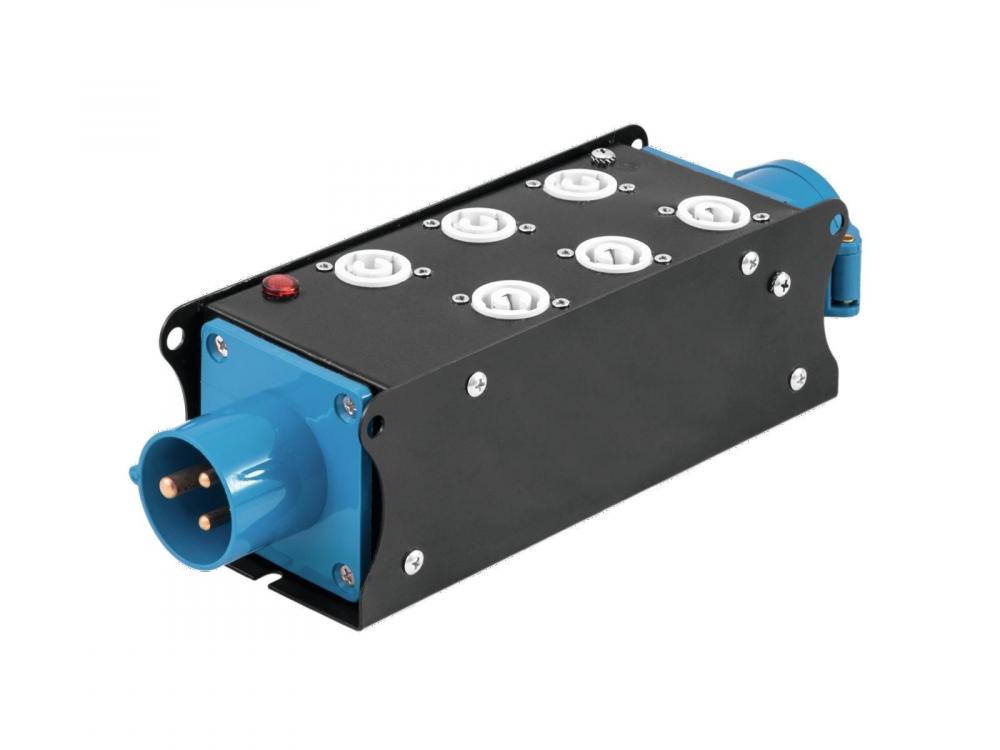

EUROLITE SAB-62X Power Split Box

EUROLITE

1
2
3

Technical specifications, datasheets, descriptions and tender texts for EUROLITE SAB-62X Power Split Box

Info
order code
60003755
product link
EAN
4026397586435
Product Name
EUROLITE SAB-62X Power Split Box
technical overview
Power supply: 230 V AC, 50 Hz
Max. power/channel: 3680 W
Max. current/channel: 16 A
Dimensions (L x W x H): 280 x 90 x 75 mm
Weight: 1 kg
Height: 15 cm
Width: 8 cm
Length: 24 cm
Power connection: Mains Input Socket (M) CEE 16A 3-pol (m) recessed mounting
Power supply: 230 V AC, 50 Hz
main features
Heavy-duty power split box with CEE input and output
-Input: 1 x CEE plug blue 230 V/16 A, 3 poles
-Output: 1 x CEE inline jack blue 230 V/16 A, 3 poles
-6 x P-Con outputs
-Designed for flexible use on stage or rigg
-Truss attachment option (M10 inside thread)
-Robust steel housing
-Power connection: Mains Input Socket (M) CEE 16A 3-pol (m) recessed mounting
-Power out: 6 x Powercon (Power out) gray, mounting version; 1 x CEE 16A 3-pol (f) recessed mounting
Electrical
power consumption amps, max
16.00 A
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
total power rating per phase/channel, max
16 A
Mechanical
weight
1.00 kg
width
90.00 mm
height
75.00 mm
length
280.00 mm
