Info | |
---|---|
order code |
60003760
|
product link | |
EAN |
4026397586374
|
Product Name |

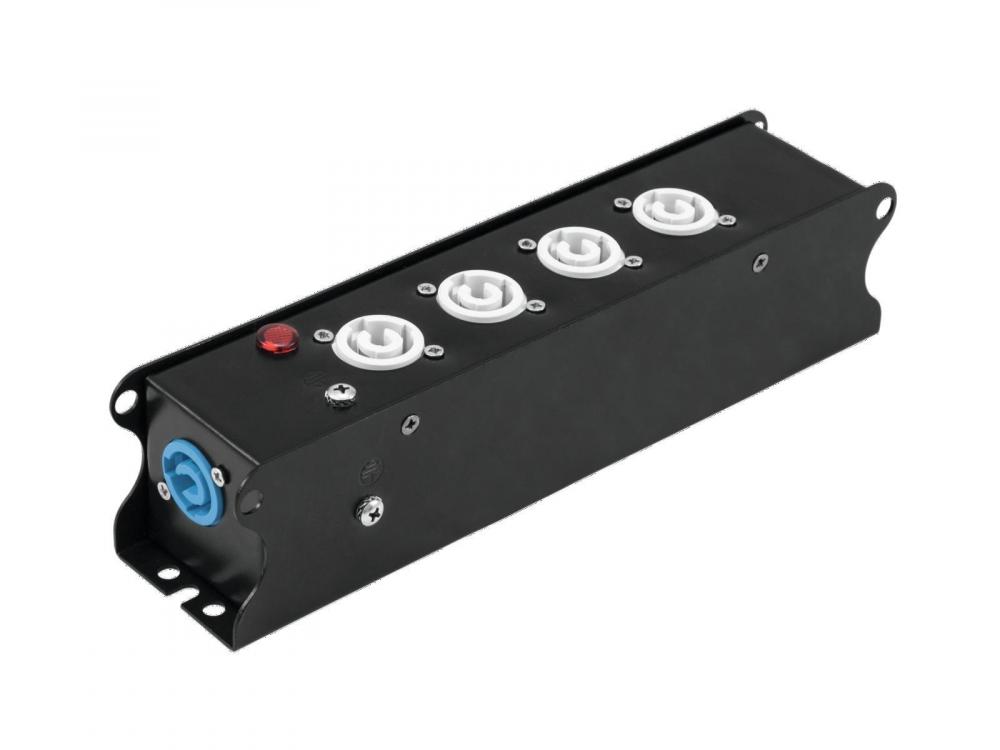

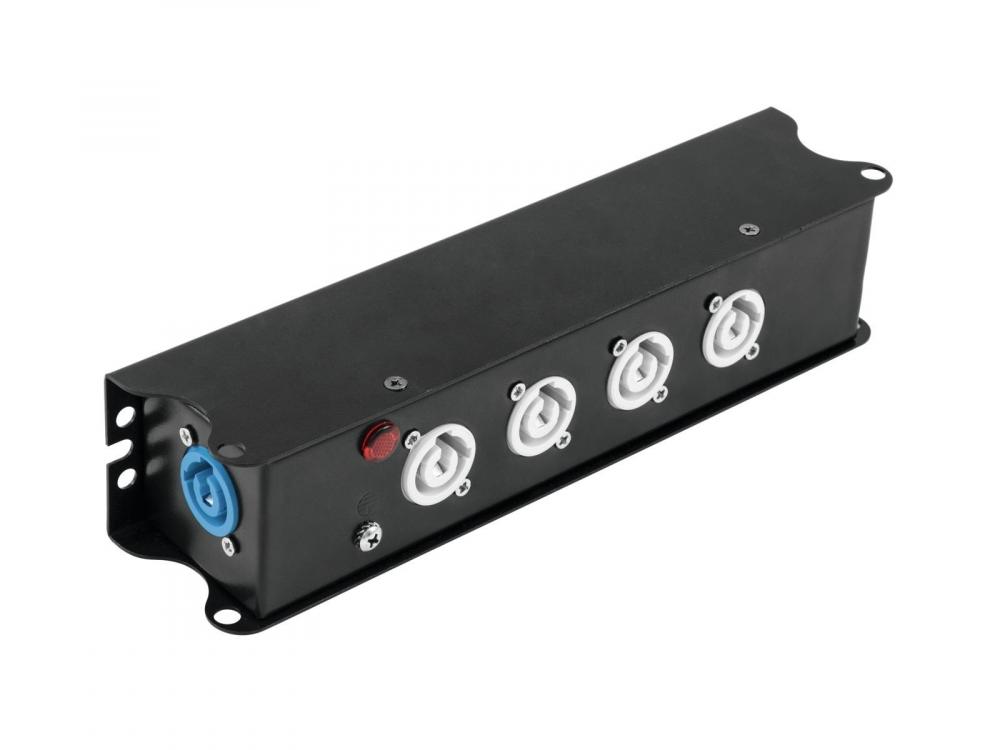

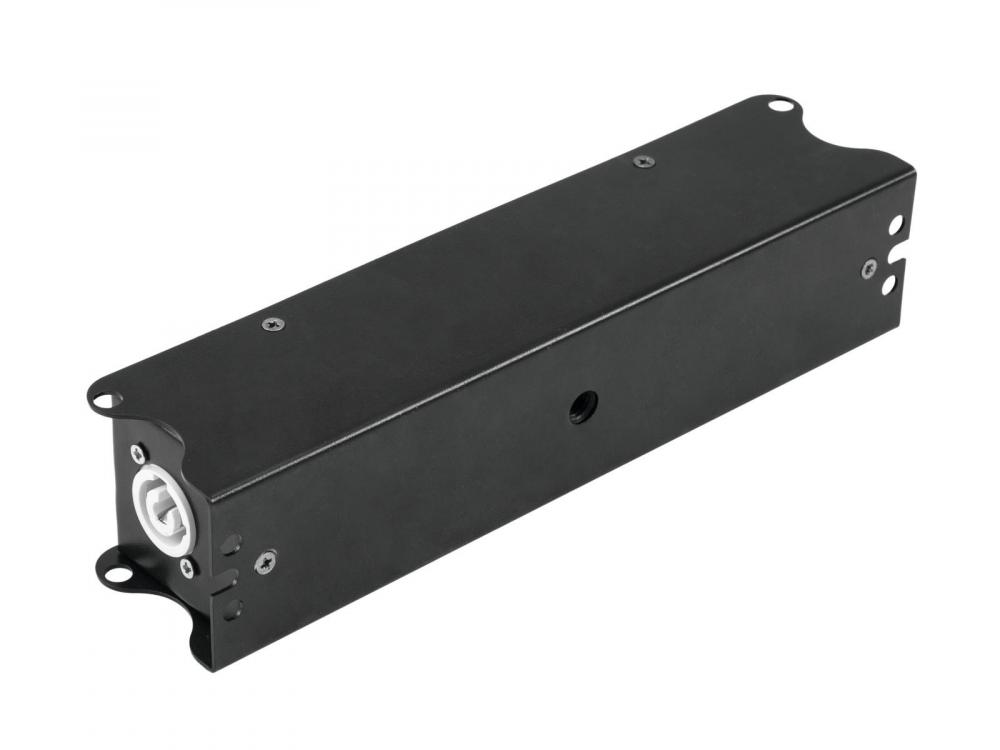

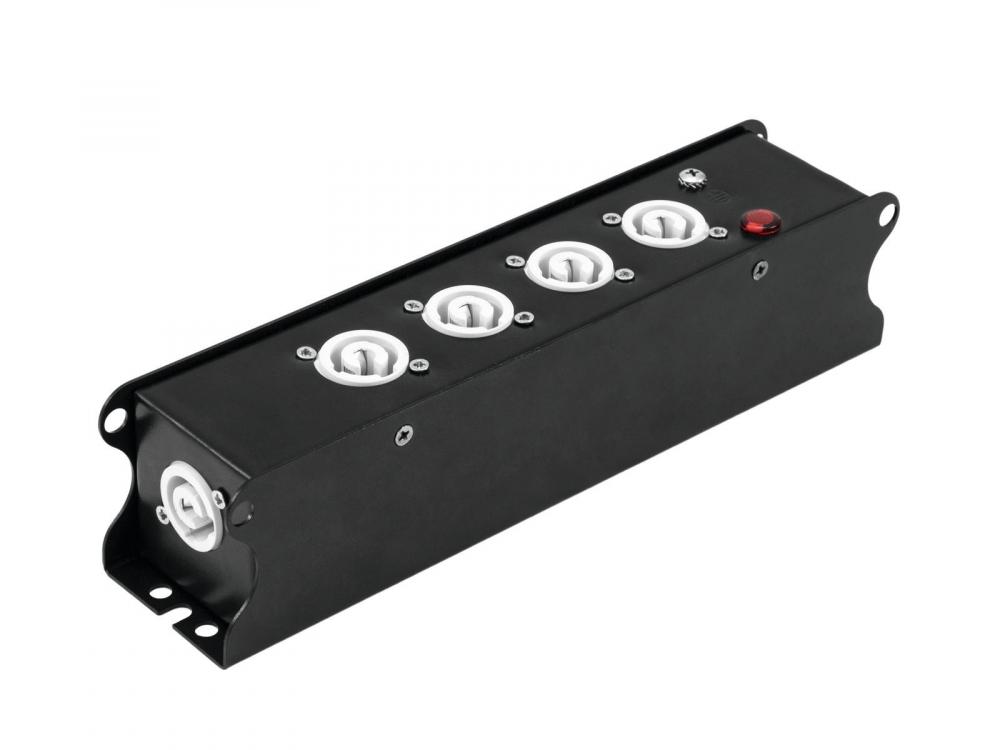

EUROLITE SAB-42X Power Split Box
|
technical overview |
Power supply: 230 V AC, 50 Hz Max. power: 4600 W Max. current: 20 A Dimensions (L x W x H): 205 x 55 x 130 mm Weight: 0,75 kg Height: 13 cm Width: 5,5 cm Length: 20,5 cm Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply: 230 V AC, 50 Hz |
main features |
Heavy-duty power split box with P-Con input and output -1 x P-Con input -5 x P-Con output -Designed for flexible use on stage or rigg -Truss attachment option (M10 inside thread) -Robust steel housing -Power out: 5 x P-Con (Power out) gray, mounting version -Power connection: Mains Input Socket (M) P-Con (Power-In) |
Electrical | |
power consumption amps, max |
20.00 A
|
power consumption watt, max |
4600.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
power input connector |
Powercon
|
Mechanical | |
weight |
0.75 kg
|
width |
55.00 mm
|
height |
130.00 mm
|
length |
50.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00102598.pdf |
