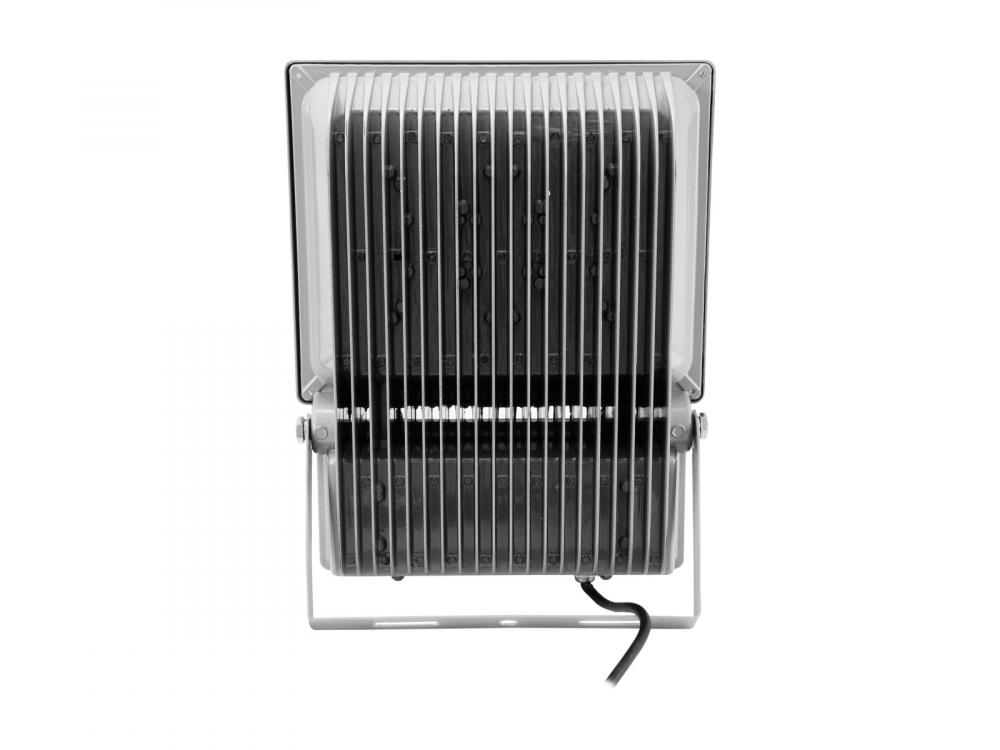

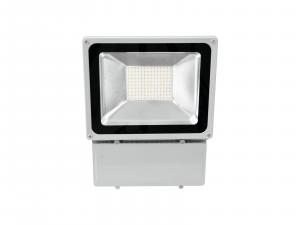

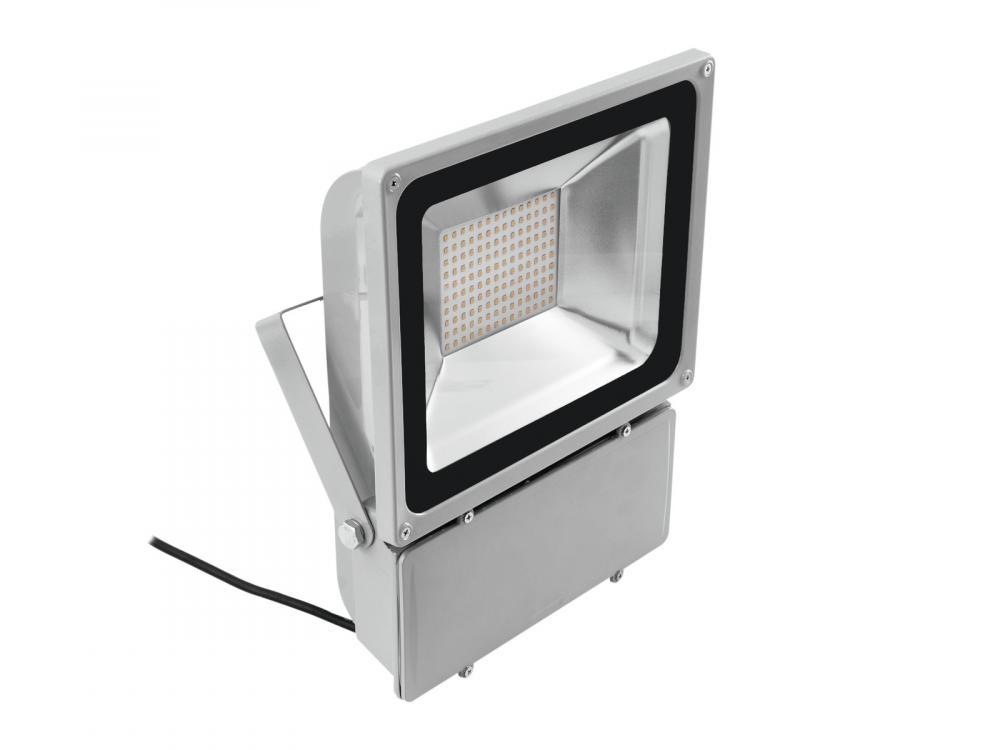

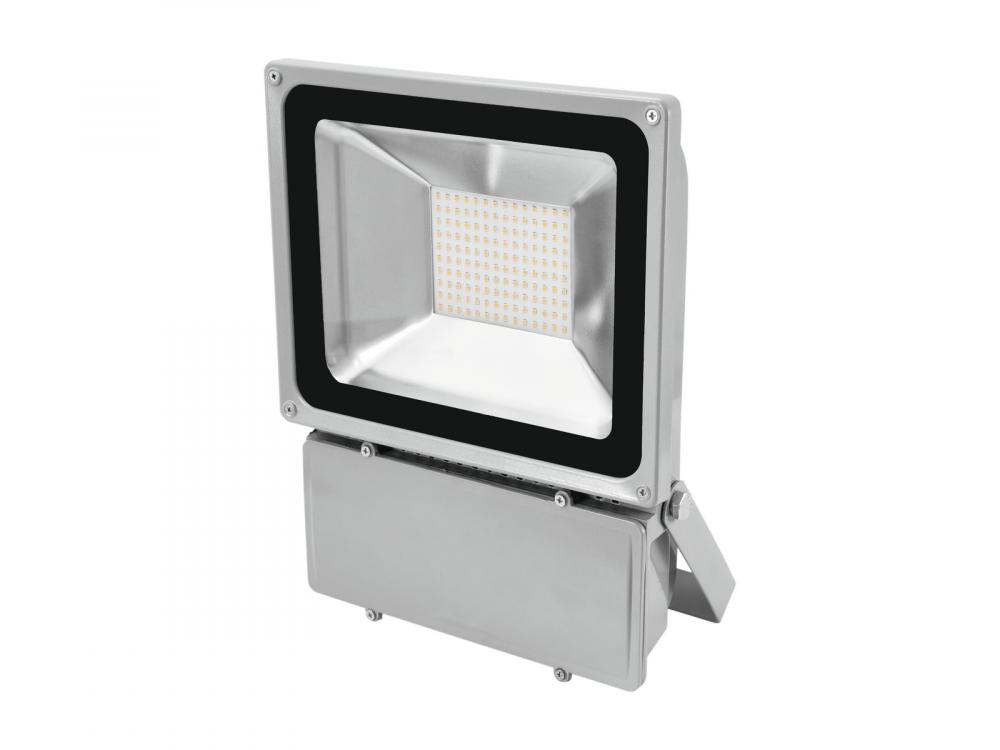

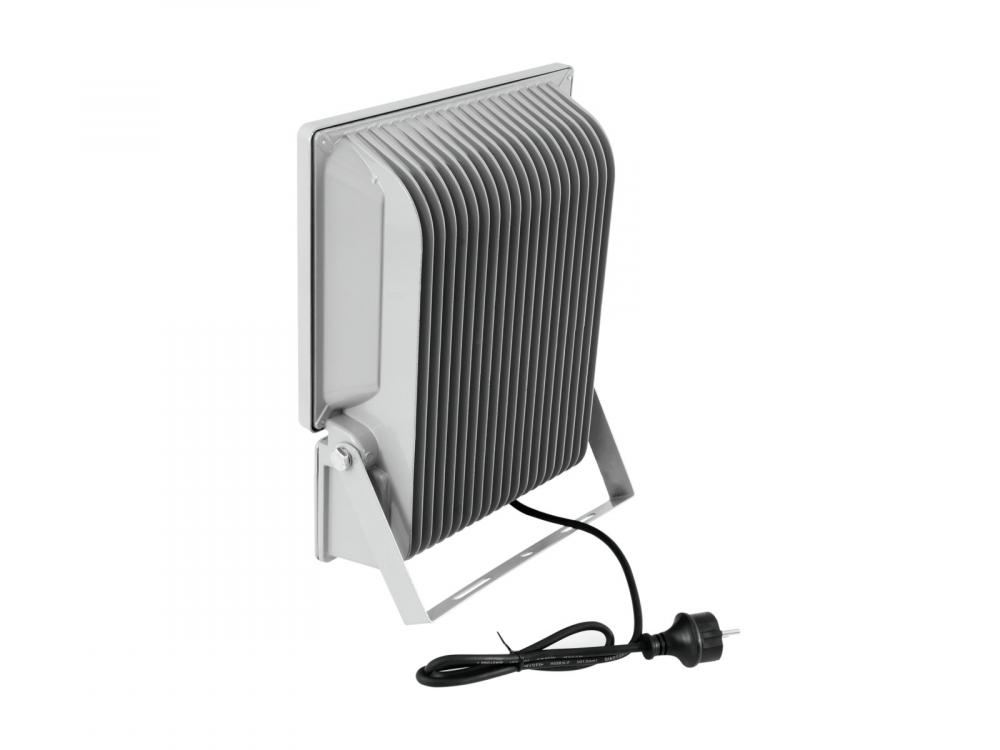

EUROLITE LED IP FL-100 6400K
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED IP FL-100 6400K
| Info | |
|---|---|
| order code |
51914780
|
| product link | |
| EAN |
4026397626117
|
| Product Name |
EUROLITE LED IP FL-100 6400K
|
| technical overview |
Power supply: 230 V AC, 50 Hz Protection grade: IP54 LED type: SMD LED number: 140 Color temperature: 6400 K Dimensions (L x W x H): 90 x 285 x 382 mm Ecodesign regulation: Yes Rated power: 100.00 W Energy consumption: 100.00 kWh/1000h IP classification: IP54 Cooling fan: No, cooling by convection Weight: 4 kg Power consumption: 100 W Lamp type: LED lamp Beam angle: 120° Height: 38,2 cm Depth: 9 cm Width: 28,5 cm Power connection: Fix Power supply cord with safety plug (M) LED: 140 x SMD CW (homogenous color mix) Power supply: 230 V AC, 50 Hz |
| main features |
Flat outdoor spotlight (IP54) with 140 SMD LEDs (cold white) -Add highlights to your house and garden -Equipped with 140 SMD LEDs -Extremely flat housing -Ideal LED luminary for outdoor use -Weather-resistant housing (IP54) -Permanent installation, mounting bracket included -Particularly bright illuminating power of the LEDs -Case color: Silver -Power connection: Fix Power supply cord with safety plug (M) -Control: without -LED: 140 x SMD CW (homogenous color mix) |
| Electrical | |
| power consumption watt, max |
100.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| IP rating |
54
|
| power input connector |
fixed
|
| cooling |
passive
|
| Mechanical | |
| weight |
4.00 kg
|
| width |
285.00 mm
|
| height |
382.00 mm
|
| length |
90.00 mm
|
| Optical | |
| beam angle/zoom, min |
120.00 °
|
| beam angle/zoom, max |
120.00 °
|
| light source |
LED
|
| light source color temperature |
6400 K
|
| color temperature, min |
6400 K
|
| color temperature, max |
6400 K
|
| Number of light sources |
140 pcs
|
