EUROLITE LED PFE-250 3000K Profile Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED PFE-250 3000K Profile Spot

Info
order code
40001970
product link
EAN
4026397610277
Product Name
EUROLITE LED PFE-250 3000K Profile Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 3
DMX connection: 3-pin XLR
LED type: 250 W COB, warm white
LED number: 1
Color temperature: 3000 K
Beam angle: 14-41°
Dimensions (L x W x H): 645 x 270 x 375 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 12,6 kg
IP classification: IP20
Power consumption: 250 W
Lamp type: LED lamp
Beam angle: 14 - 41°
Height: 37,5 cm
Width: 27 cm
Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
Length: 64,5 cm
DMX channels: 3
LED: 1 x COB (chip-on-board) 250 W WW (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
PRO profile spotlight, 250 W warm white LED, zoom, shutter blades, CRI >90
-Equipped with 1 x 250 W COB LED in warm white
-Ideal for theatres and stages
-Operable in stand-alone mode or via DMX
-DMX512 control possible via any commercial DMX controller (occupies 3 channels)
-Comfortable addressing and setting via control board with LCD display and four operating buttons
-Master/Slave function
-Strobe effect
-Dimmer
-Dimmer speeds (step response) adjustable via DMX
-CRI of >90

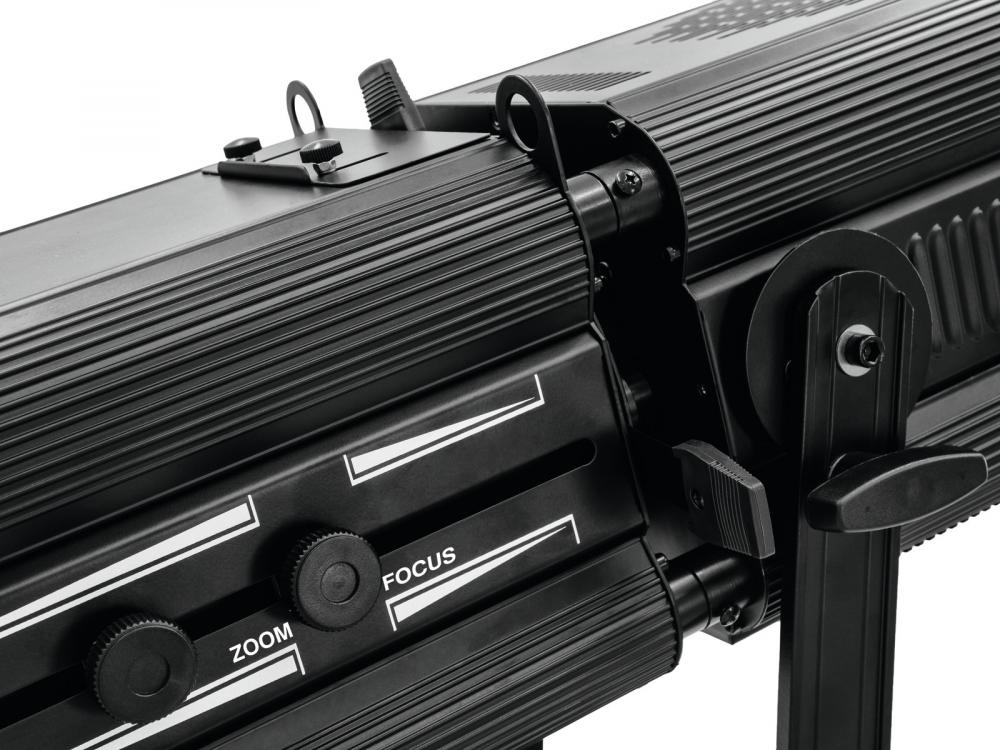

-Focus manually adjustable
-Manually adjustable zoom
-Color filter frame and 4 shutter blades included in delivery
-Locking possibility at the mounting bracket
-Power connection via P-Con jack and included power cable with safety plug
-Switch-mode power supply for operation between 100 and 240 Volts
-Feed-through output allows to power up to 8 devices
-After every 8 LED Profile Spots the fixtures must have a renewed connection with the power mains
-Case color: Black
-Color rendering index (CRI) more than: 90 Ra

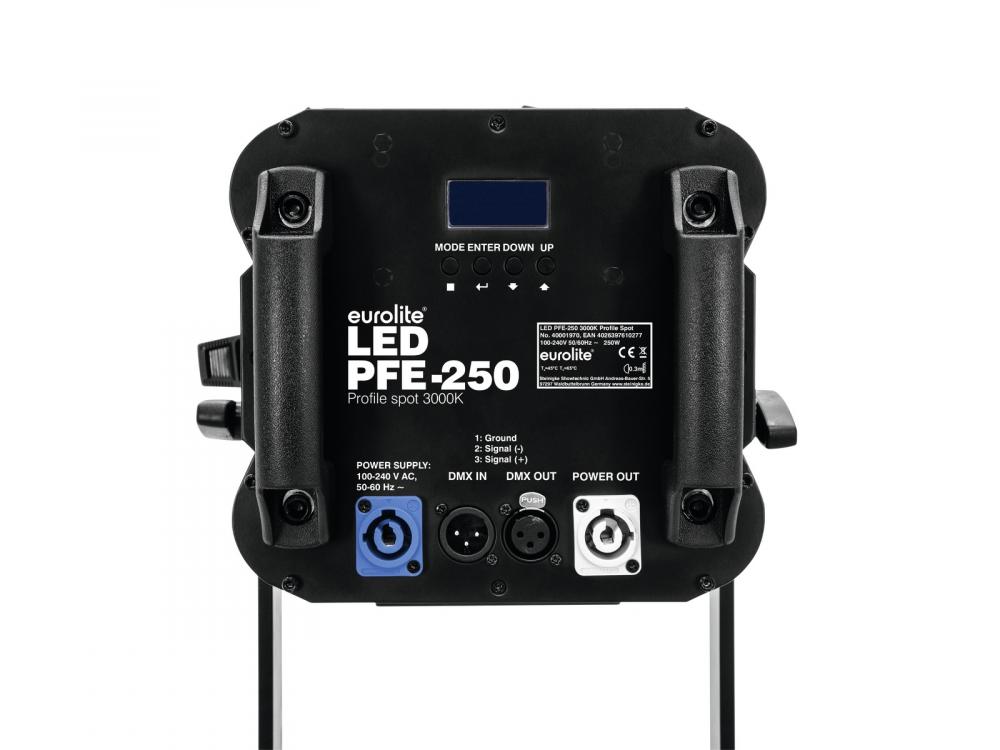

-Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
-Power out: 1 x Powercon (Power out) gray, mounting version
-Control: Stand-alone; DMX
-LED: 1 x COB (chip-on-board) 250 W WW (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
3 ch
control channels, max
3 ch
Electrical
power consumption watt, max
250.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
Mechanical
weight
12.60 kg
width
270.00 mm
height
375.00 mm
length
645.00 mm
Optical
beam angle/zoom, min
41.00 °
beam angle/zoom, max
14.00 °
light source
LED
light source color temperature
3000 K
color temperature, min
3000 K
color temperature, max
3000 K
Number of light sources
1 pcs
wattage per light source
250.00 W
WARM WHITE LED source
yes

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00108943.pdf
