Info | |
---|---|
order code |
41604019
|
product link | |
EAN |
4026397582543
|
Product Name |

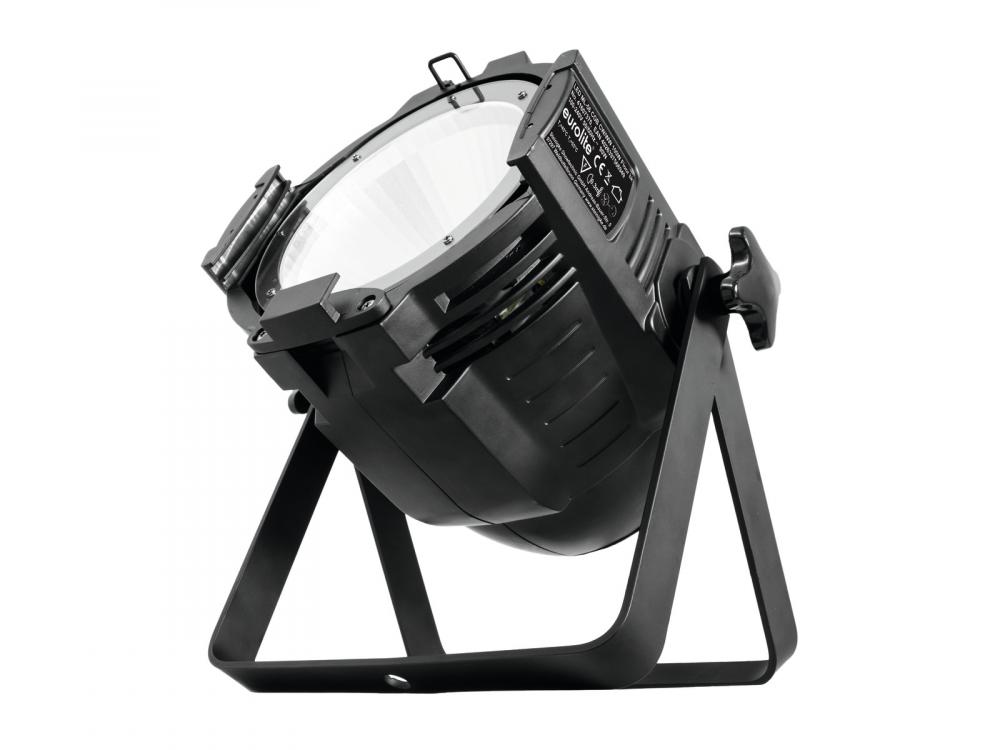

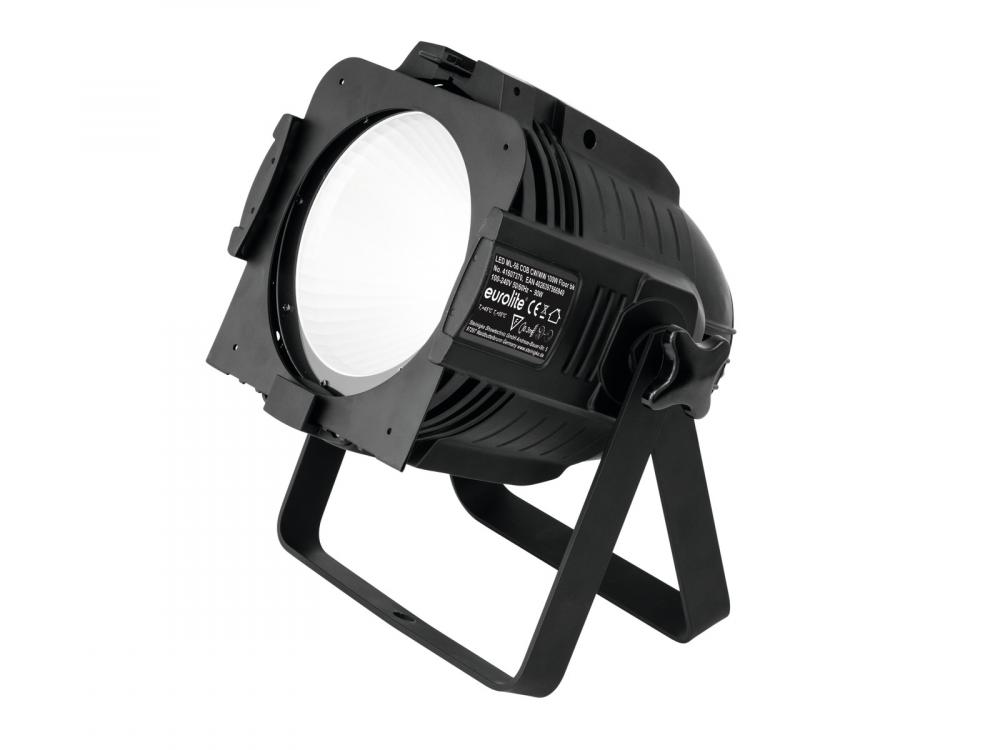

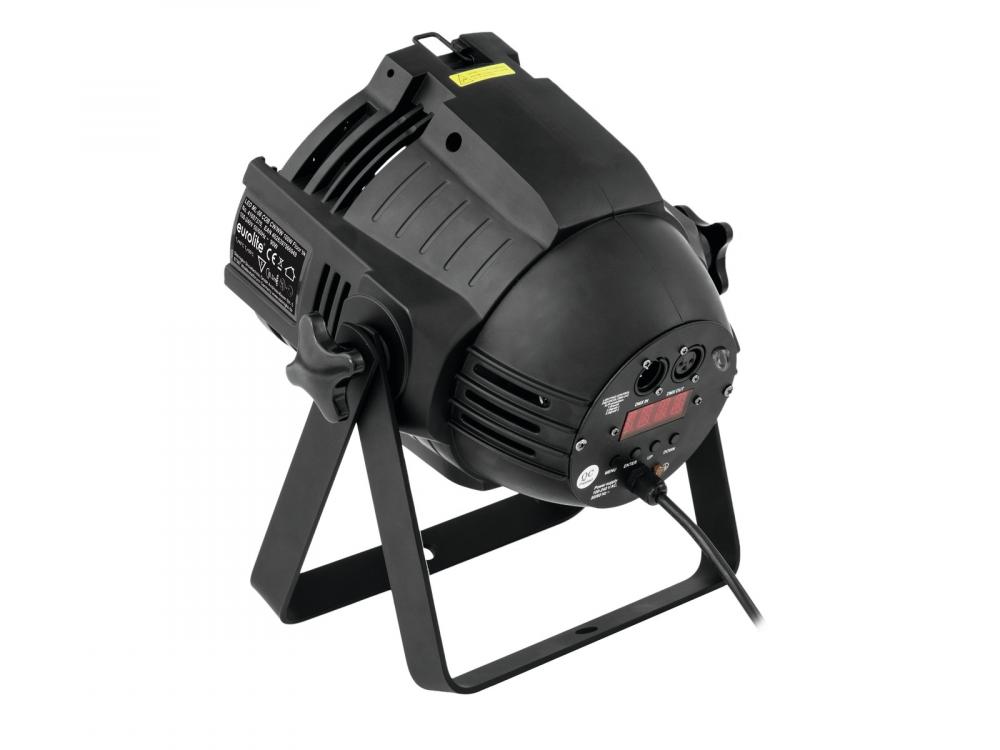

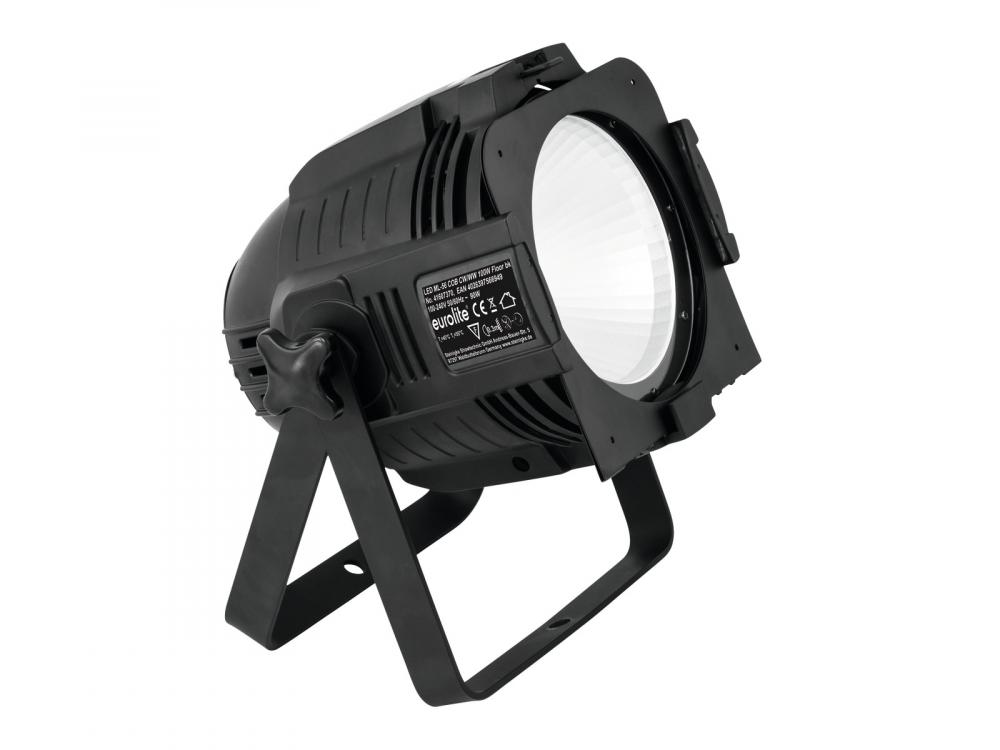

EUROLITE LED ML-56 COB 5600K 100W Floor bk
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 1/3 DMX connection: 3-pin XLR Flash-rate: 17 Hz LED number: 1 LED type: COB 100W Color temperature: 5600 K Beam angle: 35° Dimensions (L x W x H): 250 x 290 x 315 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Beam angle: 35° IP classification: IP20 Weight: 3 kg Lamp type: LED lamp Power consumption: 90 W Height: 25 cm Depth: 31,5 cm Width: 29 cm Power connection: Fix Power supply cord with safety plug (M) DMX channels: 1; 3 LED: 1 x COB (chip-on-board) 100 W CW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |

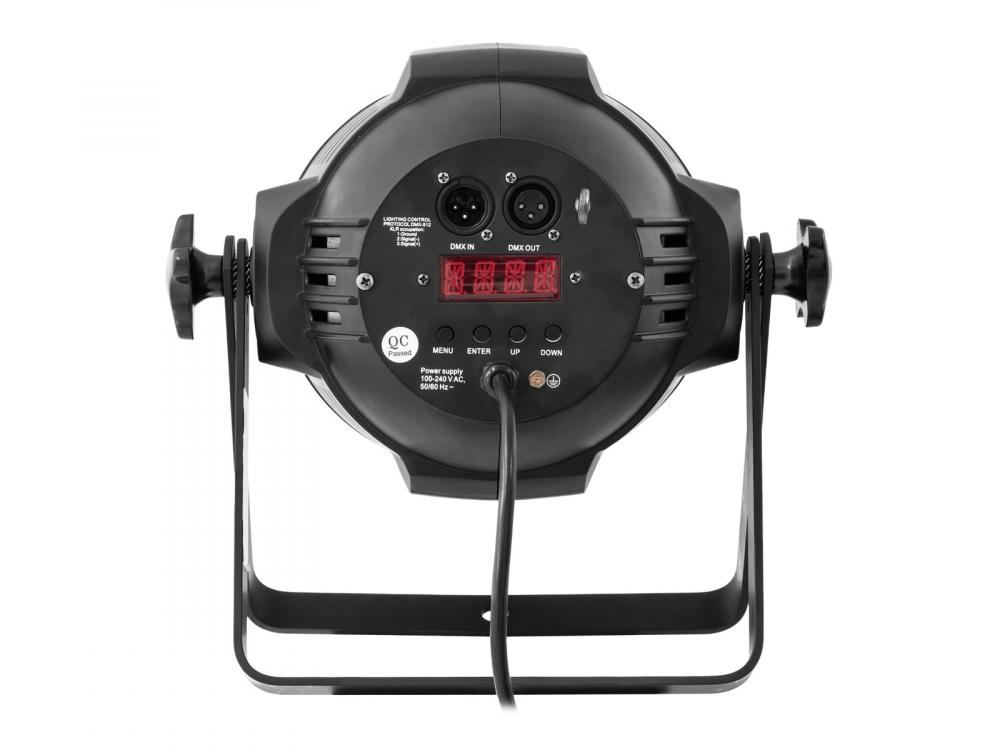

ML spot with 100 W COB LED in cold white -Equipped with one COB 100 W LED -Fan-cooled -Functions: dimmer, strobe effect, Master/Slave operation, different dimmer curves/dimmer speed (step response) -DMX-controlled operation or stand-alone operation with Master/Slave function -1 or 3 DMX channels selectable -Strobe effect with adjustable speed -Beam angle approximately 35° -Comfortable addressing and setting via Control Board with LED display and four operating buttons -Ideal as floor spot via additional bracket -Locking possibility at the brackets -Ideal for theatres, large stages as pre-stage spot and mobile use -With color filter frame, optional barndoors available -Ready for connection with power cord and safety plug -Switch-mode power supply for operation between 100 and 240 Volts -DMX512 control possible via any commercial DMX controller -Available in silver or in black -Case color: Black -Effect: Strobe effect -Projection: flicker-free -Power connection: Fix Power supply cord with safety plug (M) -Control: Stand-alone; DMX -LED: 1 x COB (chip-on-board) 100 W CW (homogenous color mix) |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
1 ch
|
control channels, max |
3 ch
|
Electrical | |
power consumption watt, max |
100.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
fixed
|
Mechanical | |
weight |
3.00 kg
|
width |
290.00 mm
|
height |
315.00 mm
|
length |
315.00 mm
|
Optical | |
beam angle/zoom, min |
35.00 °
|
beam angle/zoom, max |
35.00 °
|
light source |
LED
|
light source color temperature |
5600 K
|
color temperature, min |
5600 K
|
color temperature, max |
5600 K
|
Number of light sources |
1 pcs
|
wattage per light source |
100.00 W
|
shutter/strobe frequency, max |
17 Hz
|
