EUROLITE LED KKL-12 Floodlight 3200K silver

EUROLITE

1
2

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED KKL-12 Floodlight 3200K silver

Info
order code
41600461
product link
EAN
4026397606638
Product Name
EUROLITE LED KKL-12 Floodlight 3200K silver
technical overview
Power supply: 100-240 V AC, 50/60 Hz
LED number: 12
LED type: 1 W
Color temperature: 3200 K
Beam angle: 60°
Cable length: 1.3 m
Dimensions (L x W x H): 120 x 130 x 450 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Beam angle: 60°
Weight: 0,6 kg
Cooling fan: No, cooling by convection
Lamp type: LED lamp
Power consumption: 12 W
Depth: 12 cm
Width: 13 cm
Length: 45 cm
Power connection: Fix Power supply cord with safety plug (M)

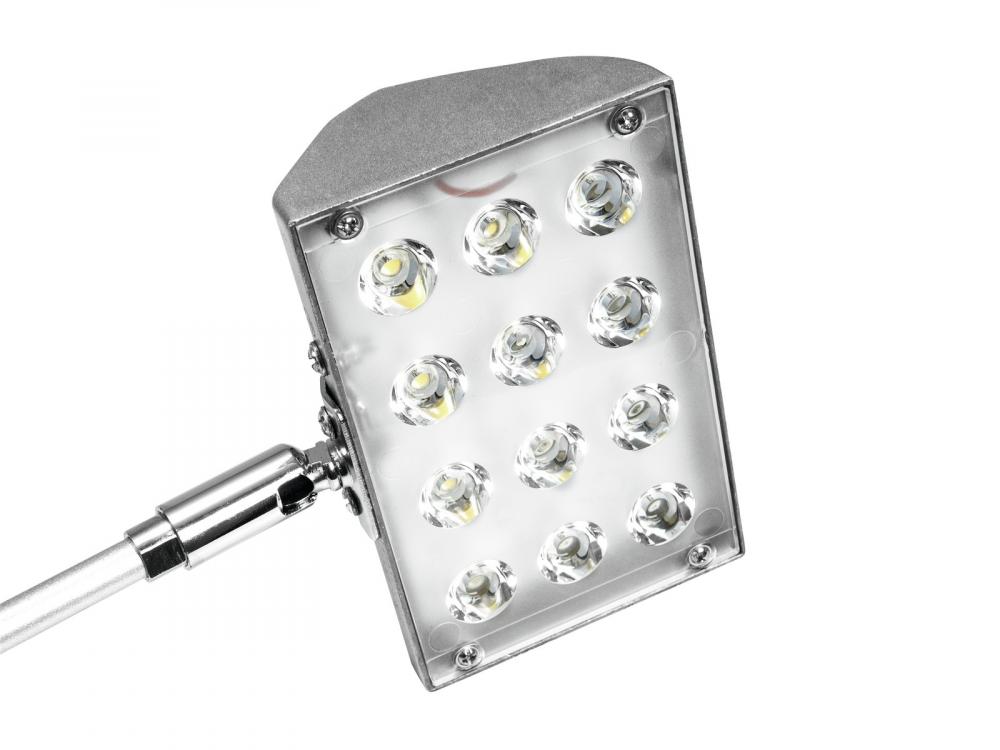

LED: 12 x high-power 1 W WW (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features

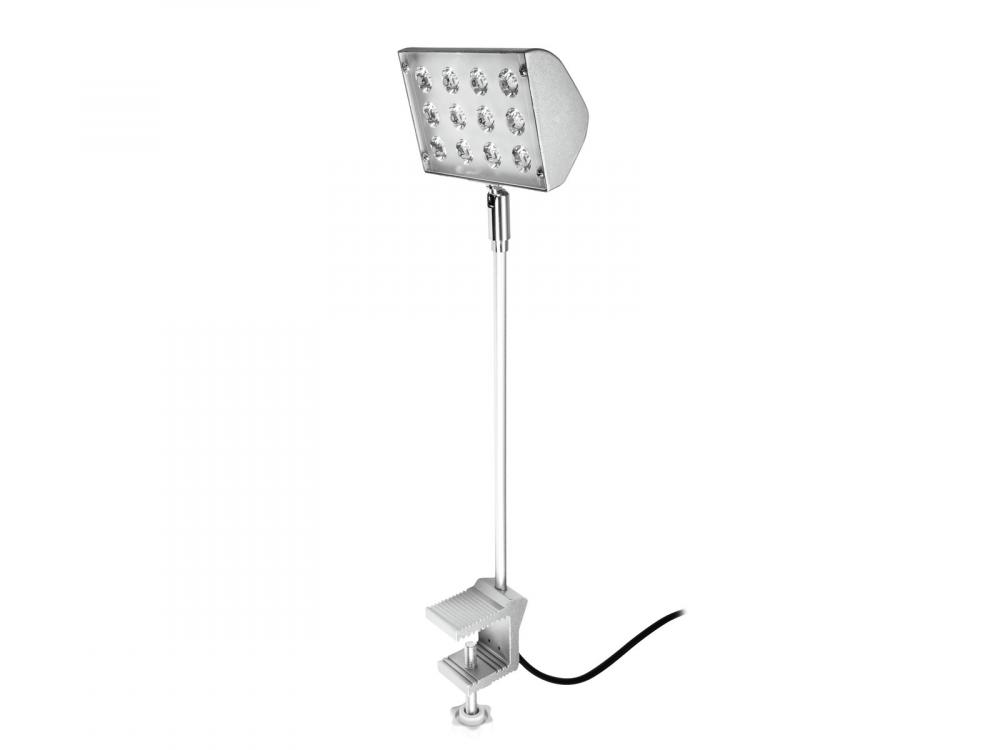

Warm white 12 W LED light on the extension arm with clamp holder
-Equipped with 12 x 1 W LED, 3200 K
-Perfect as wall lighting for shop windows, booth lighting at trade exhibitions, etc.
-Inclination-angle of the device head: horizontally approx. 320°, vertically approx. 85°
-Unique design
-Easy mounting
-Ready for connection with power cord and safety power plug
-Switch-mode power supply for operation between 100 and 240 volts
-Available in three housing colors: silver, black, white
-Case color: Silver
-Power connection: Fix Power supply cord with safety plug (M)
-Control: without
-LED: 12 x high-power 1 W WW (homogenous color mix)
Electrical
power consumption watt, max
12.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
fixed
cooling
passive
Mechanical
weight
0.60 kg
width
130.00 mm
height
450.00 mm
length
120.00 mm
Optical
beam angle/zoom, min
60.00 °
beam angle/zoom, max
60.00 °
light source
LED
light source color temperature
3200 K
color temperature, min
3200 K
color temperature, max
3200 K
Number of light sources
12 pcs
wattage per light source
1.00 W
WARM WHITE LED source
yes

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00107494.pdf
