| Info | |
|---|---|
| order code |
41600463
|
| product link | |
| EAN |
4026397606676
|
| Product Name |

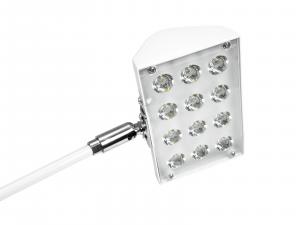

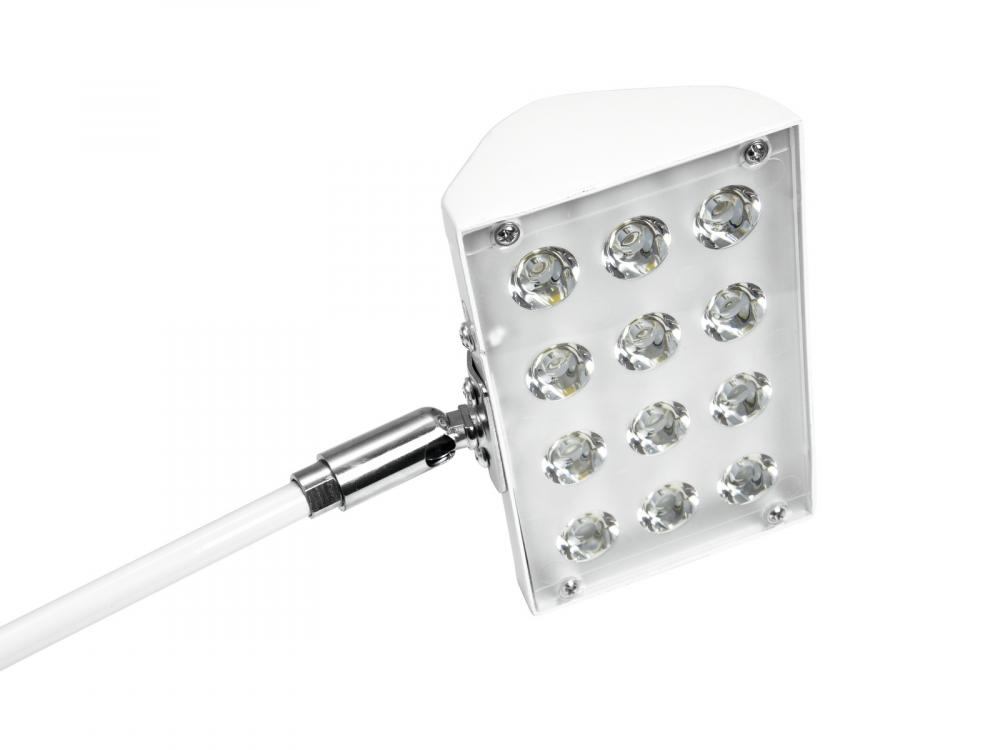

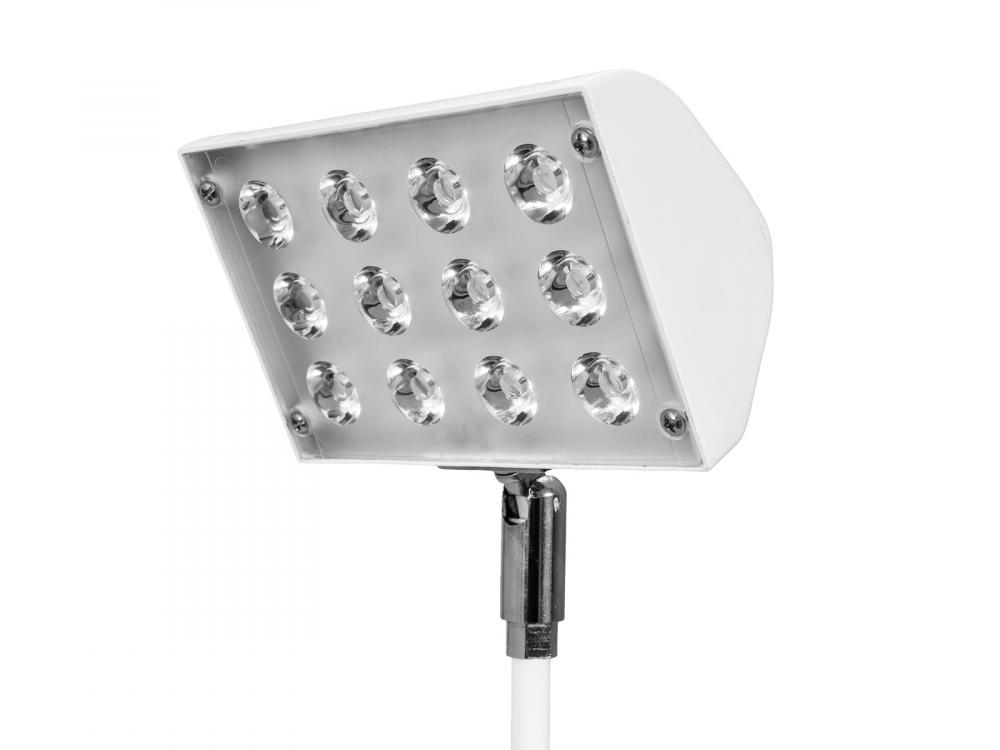

EUROLITE LED KKL-12 Floodlight 3200K white
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz LED number: 12 LED type: 1 W Color temperature: 3200 K Beam angle: 60° Cable length: 1.3 m Dimensions (L x W x H): 120 x 130 x 450 mm Ecodesign regulation: Yes Rated power: 12.00 W Energy consumption: 12.00 kWh/1000h IP classification: IP20 Beam angle: 60° Weight: 0,6 kg Cooling fan: No, cooling by convection Lamp type: LED lamp Power consumption: 12 W Depth: 12 cm Width: 13 cm Length: 45 cm Power connection: Fix Power supply cord with safety plug (M) LED: 12 x high-power 1 W WW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
| main features |

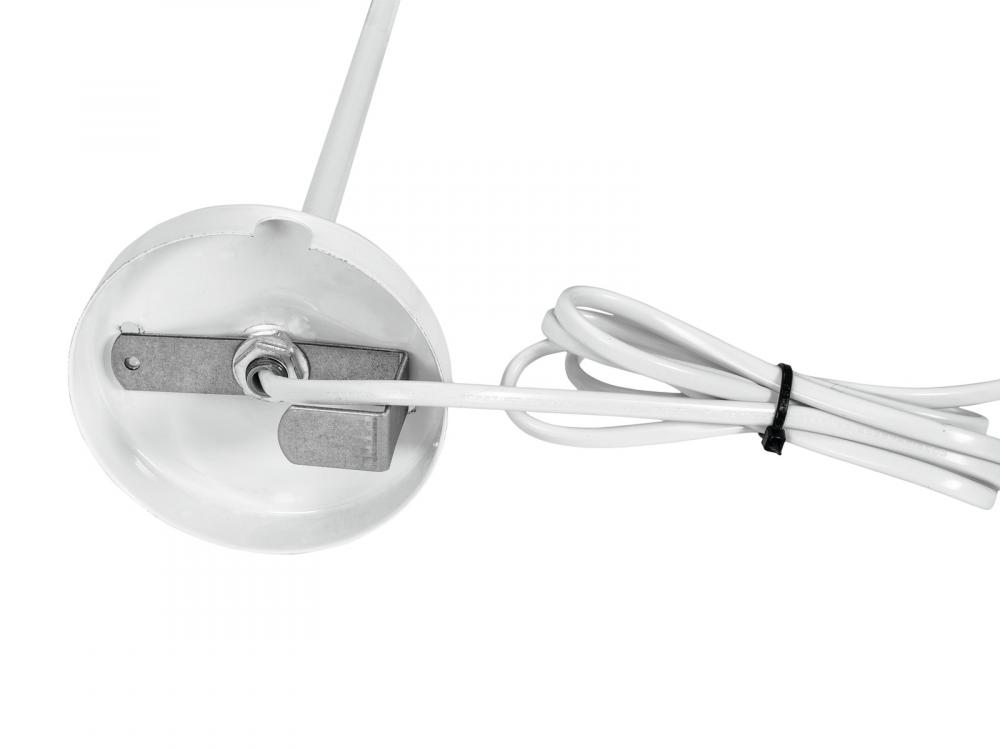

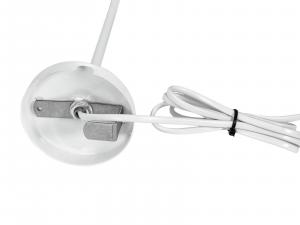

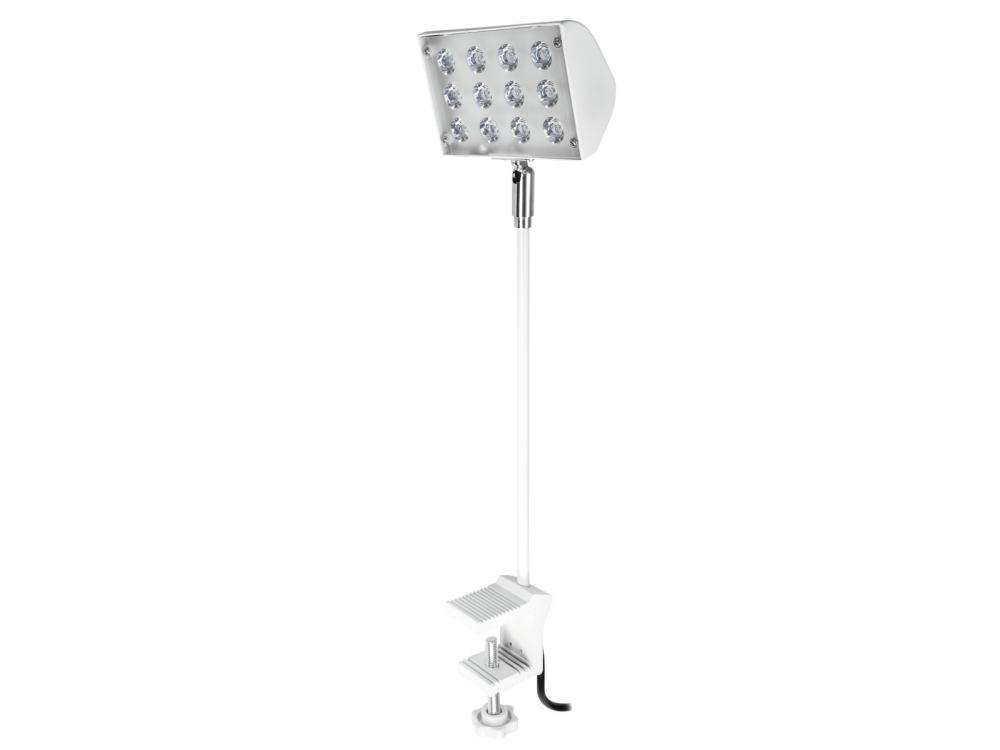

Warm white 12 W LED light on the extension arm with clamp holder -Equipped with 12 x 1 W LED, 3200 K -Perfect as wall lighting for shop windows, booth lighting at trade exhibitions, etc. -Inclination-angle of the device head: horizontally approx. 320°, vertically approx. 85° -Unique design -Easy mounting -Ready for connection with power cord and safety power plug -Switch-mode power supply for operation between 100 and 240 volts -Available in three housing colors: silver, black, white -Case color: White -Color temperature: 3200 K -Power connection: Fix Power supply cord with safety plug (M) -Control: without -LED: 12 x high-power 1 W WW (homogenous color mix) |
| Electrical | |
| power consumption watt, max |
12.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| power input connector |
fixed
|
| cooling |
passive
|
| Mechanical | |
| weight |
0.60 kg
|
| width |
130.00 mm
|
| height |
450.00 mm
|
| length |
120.00 mm
|
| Optical | |
| beam angle/zoom, min |
60.00 °
|
| beam angle/zoom, max |
60.00 °
|
| light source |
LED
|
| light source color temperature |
3200 K
|
| color temperature, min |
3200 K
|
| color temperature, max |
3200 K
|
| Number of light sources |
12 pcs
|
| wattage per light source |
1.00 W
|
| WARM WHITE LED source |
yes
|
