Info | |
---|---|
order code |
41600467
|
product link | |
EAN |
4026397646894
|
Product Name |

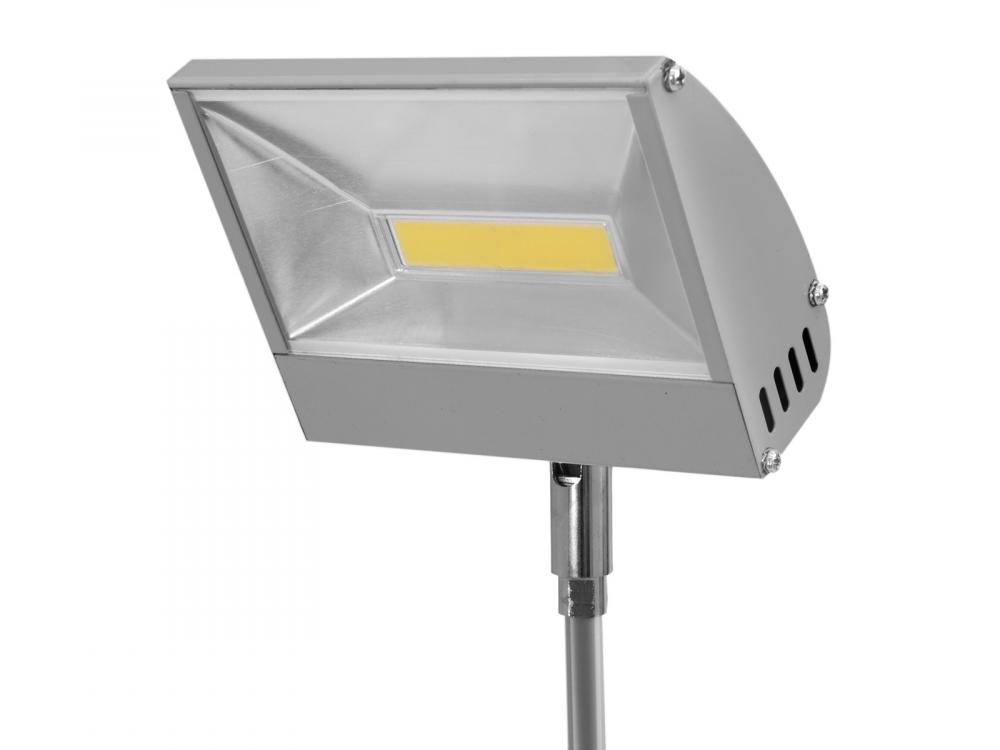

EUROLITE LED KKL-30 Floodlight 4100K silver
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Power consumption: 30 W LED number: 1 LED type: 30 W COB Color temperature: 4100 K Beam angle: 59° Cable length: 0.9 m Dimensions (L x W x H): 620 x 135 x 85 mm Ecodesign regulation: Yes IP classification: IP20 Beam angle: 59° Weight: 0,86 kg Cooling fan: No, cooling by convection Lamp type: LED lamp Width: 13,5 cm Power connection: Fix Power supply cord with safety plug (M) Length: 62 cm Depth: 8,5 cm LED: 1 x COB (chip-on-board) 30 W NW Power supply: 110-240 V AC, 50/60 Hz |
main features |

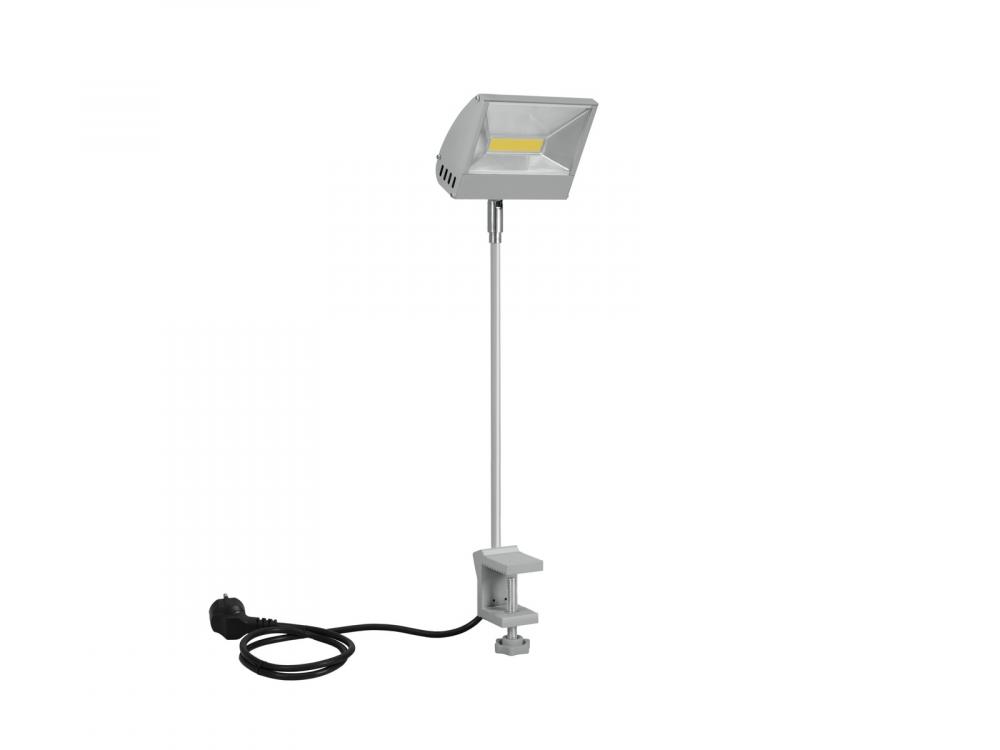

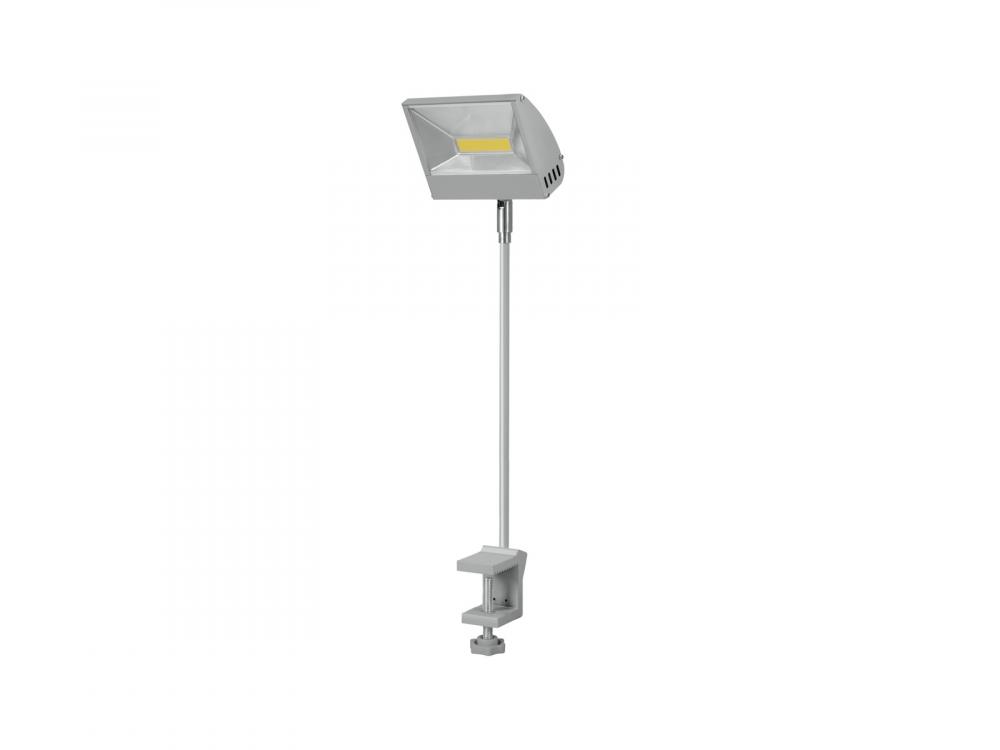

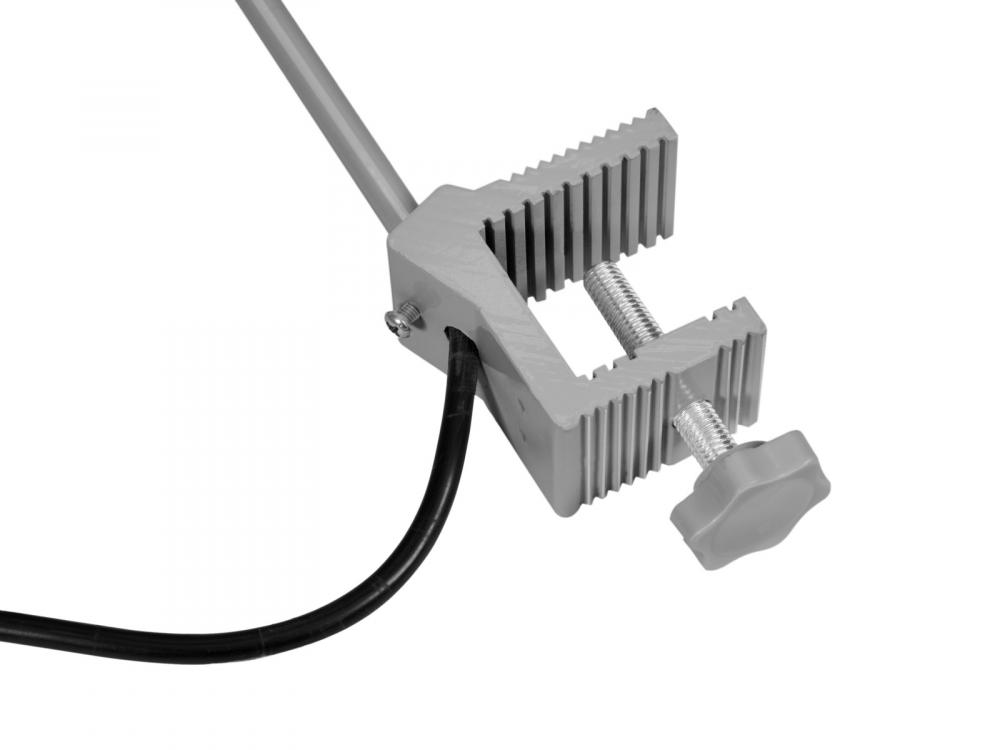

30 W LED floodlight with extension arm and screw clamp for fixation -Equipped with one 30 W COB LED, 4100 K -Perfect illumination for shop windows, booth lighting at trade exhibitions, etc. -Head tiltable 90° -Unique design -Easy mounting via screw clamp -For tabletops with up to 40 mm strength -Ready for connection with power cord and safety power plug -Switch-mode power supply for operation between 100 and 240 volts -Available in three housing colors: silver, black, white -Case color: Silver -Power connection: Fix Power supply cord with safety plug (M) -Control: without -LED: 1 x COB (chip-on-board) 30 W NW |
Electrical | |
power consumption watt, max |
30.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
fixed
|
cooling |
passive
|
Mechanical | |
weight |
0.86 kg
|
width |
135.00 mm
|
height |
85.00 mm
|
length |
620.00 mm
|
Optical | |
beam angle/zoom, min |
59.00 °
|
beam angle/zoom, max |
59.00 °
|
light source |
LED
|
light source color temperature |
4100 K
|
color temperature, min |
4100 K
|
color temperature, max |
4100 K
|
Number of light sources |
1 pcs
|
wattage per light source |
30.00 W
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00118369.pdf |
