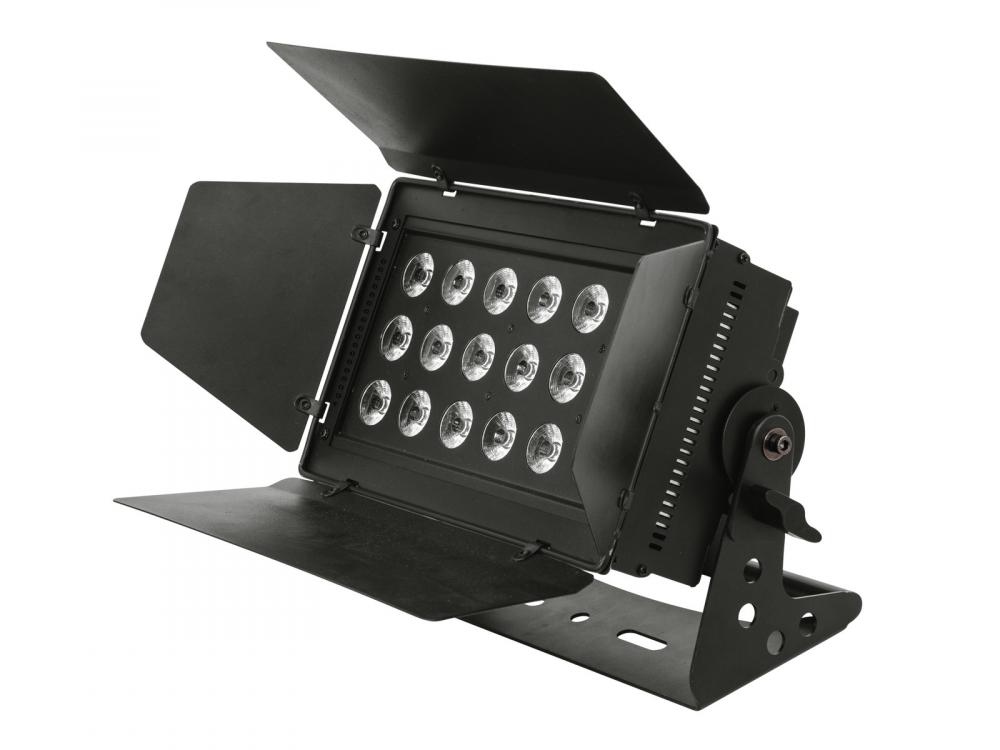

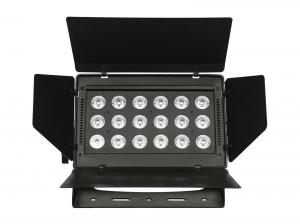

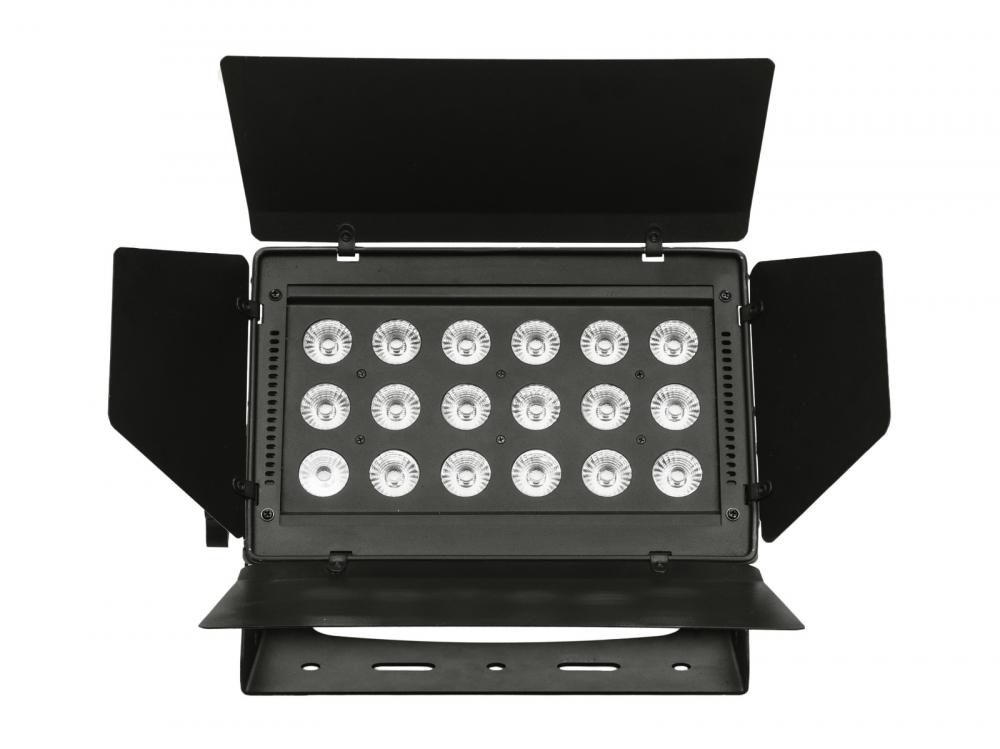

EUROLITE LED CLS-20 HCL Flood Light

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED CLS-20 HCL Flood Light

Info
order code
51913887
product link
EAN
4026397531107
Product Name
EUROLITE LED CLS-20 HCL Flood Light
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 1/3/2x4/5/6/8/9/18/22
DMX connection: 5-pin and 3-pin XLR
Sound-control: via built-in microphone
LED type: 12 W HCL
LED number: 18
Beam angle: 22°
Dimensions (L x W x H): 395 x 165 x 245 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Beam angle: 22°
Weight: 7,4 kg
Cooling fan: Yes
Lamp type: LED lamp
Power consumption: 135 W
Laser class: Without laser
Height: 24,5 cm
Depth: 16,5 cm
Width: 39,5 cm
Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
DMX channels: 1; 3; 5; 6; 8; 9; 18; 22; 4
LED: 18 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
LED flood light with HCL LEDs

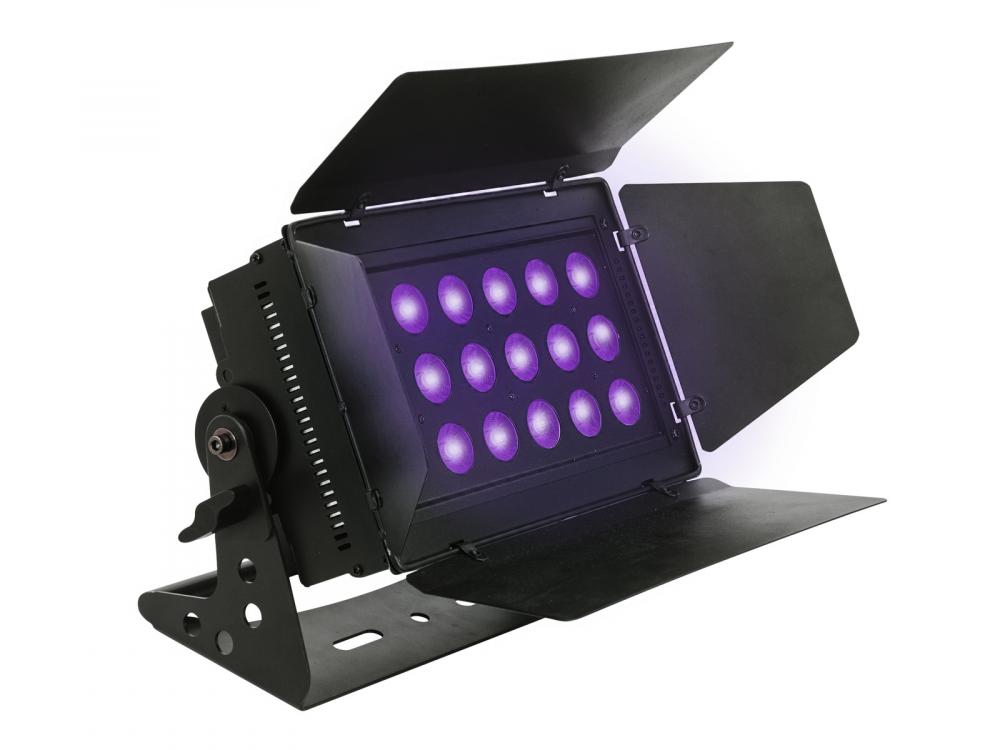

-Equipped with 18 x 6in1 hexacolor LED in the colors red, green, blue, white, amber and UV
-Functions: static colors, RGBAW+UV color mixture, automatic color change, built-in programs, dimmer, strobe effect, Master/Slave operation
-Supports RDM (Remote Device Management)
-Dimmer speed (step response) adjustable
-Adjustable white balance
-1, 3, 2 x 4, 5, 6, 8, 9, 18 or 22 DMX channels selectable
-Extremely compact housing in a beautiful design
-Ideal as floor spot
-Mounting bracket for installations on a stand or a crossbeam
-Locking possibility at the mounting bracket
-DMX-controlled operation or stand-alone operation
-Sound-control via built-in microphone; adjustable sensitivity via Control Board
-DMX512 control via any commercial DMX-controller
-Barndoors included in the delivery

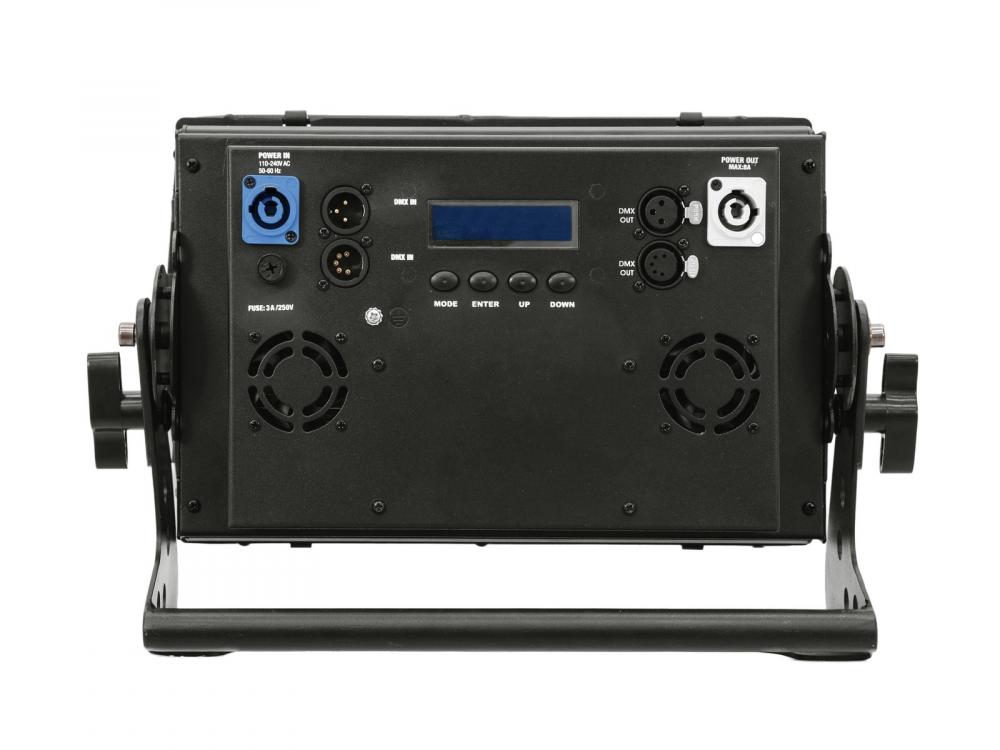

-Comfortable addressing and setting via control panel with LC display and four operating buttons
-Switch-mode power supply for operation between 100 and 240 Volts
-Power connection via Neutrik PowerCon jack and included power cable
-Feed-through output allows to power up to 8 devices
-Case color: Black
-Effect: UV
-Projection: flicker-free
-Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
-Power out: 1 x Powercon (Power-Out)
-Control: Stand-alone; DMX
-LED: 18 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix)
Connectors
DMX connector types
both 3/5pin
Control
control channels, min
1 ch
control channels, max
4 ch
Electrical
power consumption watt, max
135.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
cooling
active
Mechanical
weight
7.40 kg
width
165.00 mm
height
245.00 mm
length
395.00 mm
Optical
beam angle/zoom, min
22.00 °
beam angle/zoom, max
22.00 °
light source
LED
Number of light sources
18 pcs
wattage per light source
12.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
UV light source
yes
AMBER light source
yes
