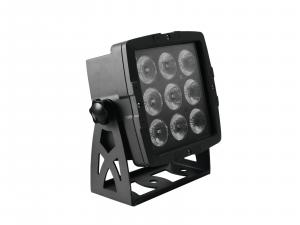

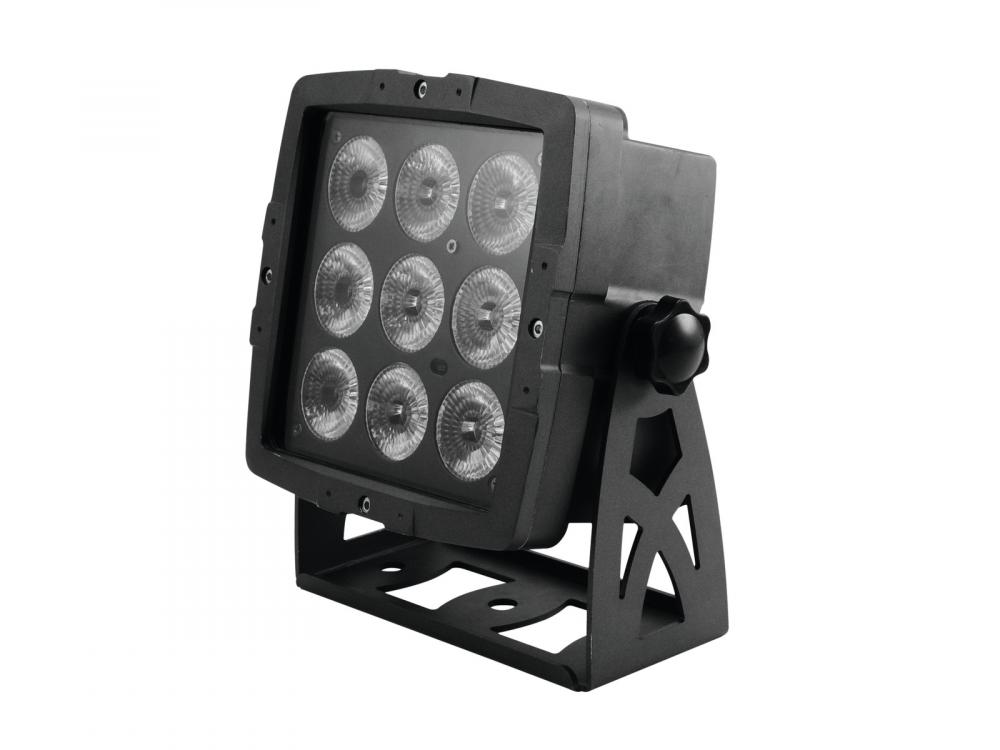

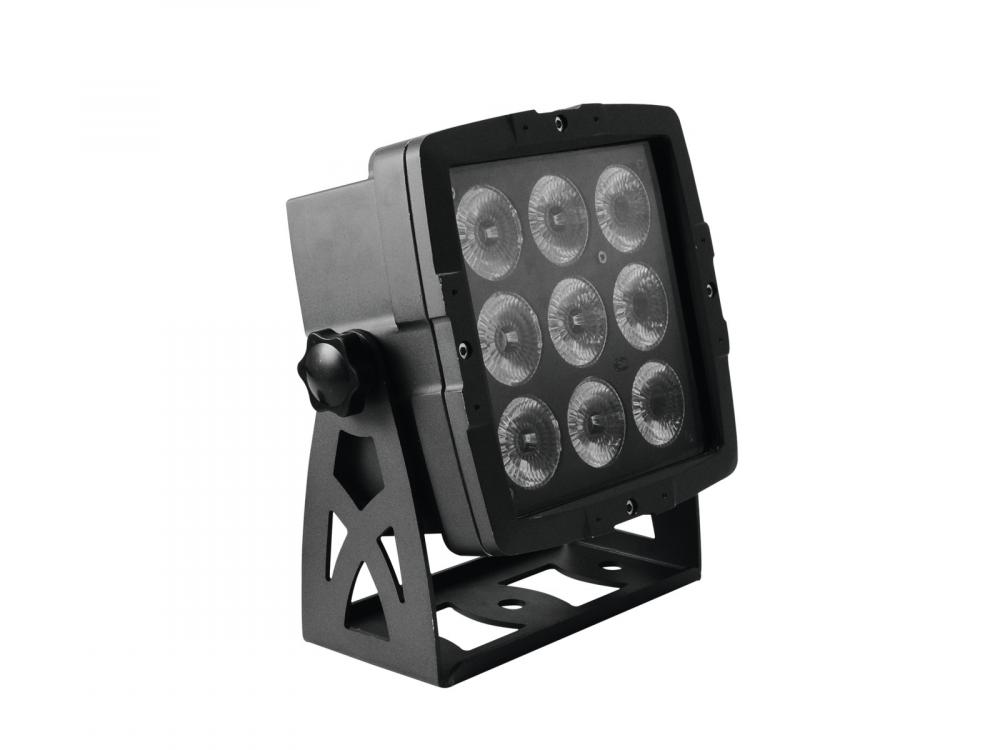

EUROLITE LED IP PAD 9x8W QCL

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED IP PAD 9x8W QCL

Info
order code
51914158
product link
EAN
4026397483024
Product Name
EUROLITE LED IP PAD 9x8W QCL
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Protection grade: IP65
DMX channels: 4/6/7
DMX connection: 3-pin screw connector
LED number: 9
LED type: 8 W RGBW (4in1)
Beam angle: 15°
Dimensions (L x W x H): 120 x 205 x 223 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Cooling fan: No, cooling by convection
Beam angle: 15°
Power consumption: 65 W
IP classification: IP65
Weight: 4,25 kg
Lamp type: LED lamp
Laser class: Without laser
Height: 22,3 cm
Depth: 12 cm
Width: 20,5 cm
Power connection: Mains Input Socket (M) 3-pin screw plug connector (M) IP Power supply cord with safety plug (M)
DMX channels: 4; 6; 7
LED: 9 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features

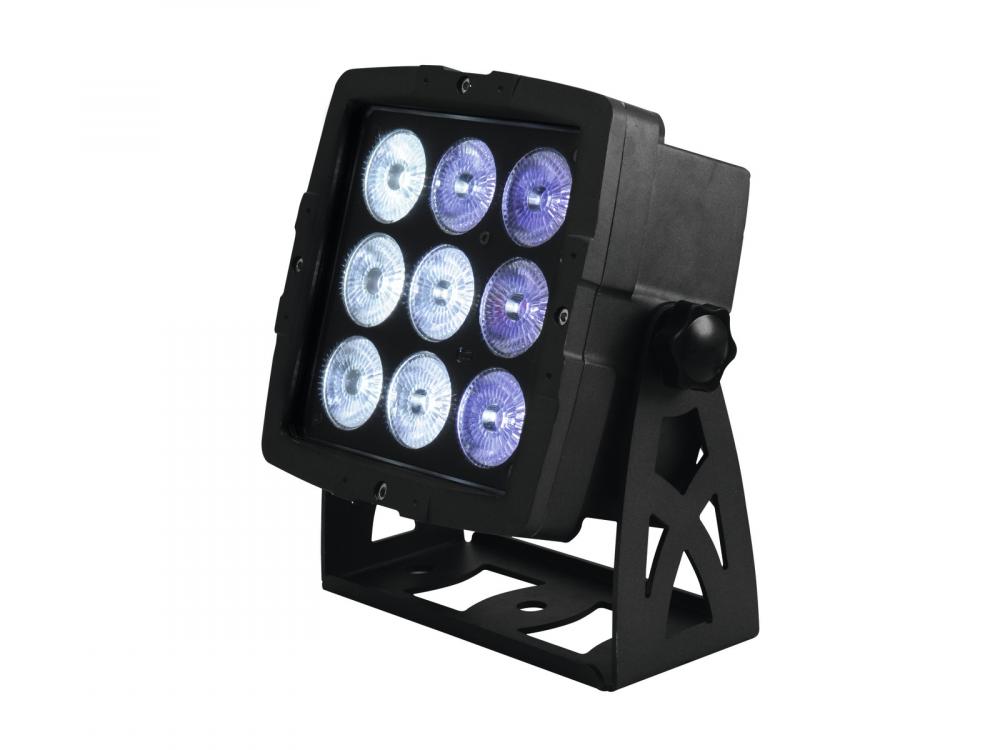

Weather-proof DMX spot (IP65) with 9 x 8 W 4in1 LED (RGBW)
-4, 6 or 7 DMX channels selectable for numerous applications
-Equipped with 9 x 8 W 4in1 LED in the colors red, green, blue and white
-For architectural lighting
-Suitable for external use (IP65)
-Compact, matt grey housing
-Convection cooling via cooling ribs
-Functions: Static colors, RGBW color mixture, built-in programs, dimmer, strobe effect, Master/Slave operation
-Programmable color change speed and strobe effect
-DMX-controlled operation or stand-alone operation with Master/Slave function

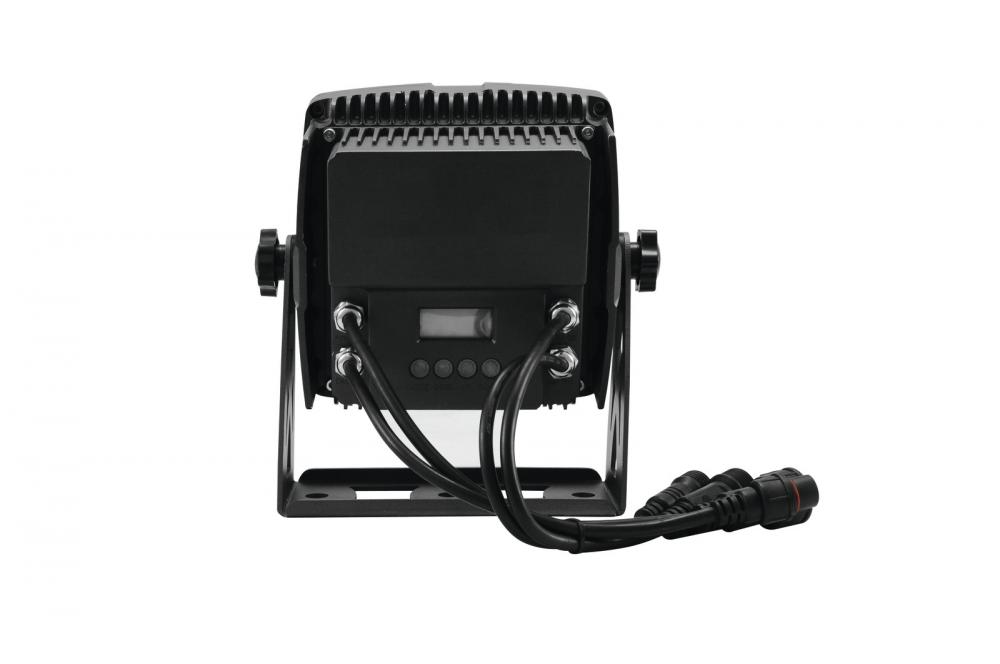

-Comfortable addressing and setting via Control Board with LC display and four operating buttons
-Infrared remote control in credit card format included in delivery
-Switch-mode power supply, automatic power supply adaption between 100 and 240 volts
-Feed-through output allows to power another device
-After every 8 devices the fixtures must have a renewed connection with the power mains
-DMX512 control via any comercial DMX-controller
-Case color: Grey

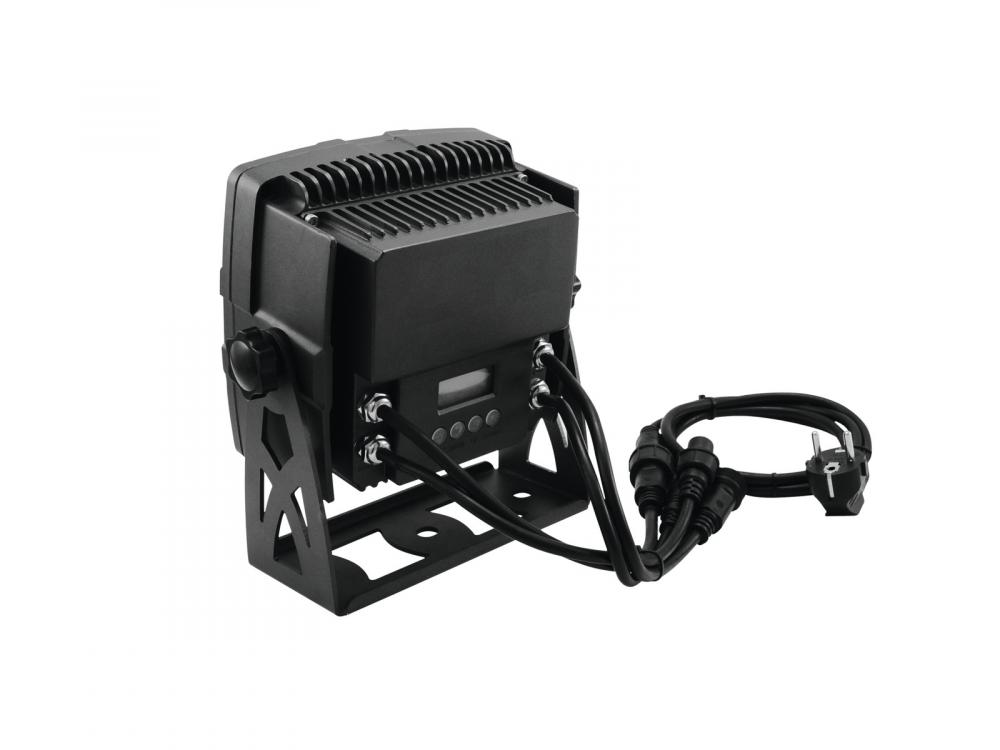

-Power connection: Mains Input Socket (M) 3-pin screw plug connector (M) IP Power supply cord with safety plug (M) (provided)
-Power out: 1 x 3-pin screw plug connector (F) IP
-Control: Stand-alone; IR remote control (provided); DMX
-LED: 9 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Connectors
DMX connector types
other
Control
control channels, min
4 ch
control channels, max
7 ch
Electrical
power consumption watt, max
8.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
65
cooling
passive
Mechanical
weight
4.25 kg
width
205.00 mm
height
223.00 mm
length
120.00 mm
Optical
beam angle/zoom, min
15.00 °
beam angle/zoom, max
15.00 °
light source
LED
Number of light sources
9 pcs
wattage per light source
8.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
