EUROLITE LED IP PAD 60x3W CW/WW

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED IP PAD 60x3W CW/WW

Info
order code
51914164
product link
EAN
4026397461688
Product Name
EUROLITE LED IP PAD 60x3W CW/WW
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Protection grade: IP65
DMX channels: 2/5
DMX connection: 3-pin screw connector
LED type: 3 W
LED number: 60 (24 x WW; 36 x CW)
Beam angle: 45°
Dimensions (W x D x H): 344 x 140 x 326 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP65
DMX channels: 2
Weight: 8 kg
Cooling fan: No, cooling by convection
Power consumption: 160 W
Flash rate: 1 - 30 Hz
Beam angle: 45°
Lamp type: LED lamp
Laser class: Without laser
Height: 32,6 cm
Depth: 14 cm
Width: 34,4 cm
Power connection: Mains Input Socket (M) 3-pin screw plug connector (M) IP Power supply cord with safety plug (M)
LED: 60 x high-power 3 W 2in1 BCL WA (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Weather-proof DMX spot (IP65) with 40 x 3 W LED (cold and warm white)
-Equipped with 60 x 3 W LED: 24 x warm white, 36 x cold white
-2 or 5 DMX channels selectable for numerous applications
-For architectural lighting
-Suitable for external use (IP65)
-Color temperature steplessly adjustable between 3000 K and 7000 K
-17 preset color temperatures
-Strobe effect
-Dimmer
-Master/Slave function
-Compact, matt grey housing
-Convection cooling via cooling ribs
-Programmable color change speed and strobe effect
-DMX-controlled operation or stand-alone operation with Master/Slave function
-Comfortable addressing and setting via Control Board with LC display and four operating buttons
-Infrared remote control in credit card format included in delivery
-Switch-mode power supply, automatic power supply adaption between 100 and 240 volts without power selector
-Feed-through output allows to power another device
-After every 8 devices the fixtures must have a renewed connection with the power mains
-DMX512 control via any standard DMX-controller
-Case color: Grey

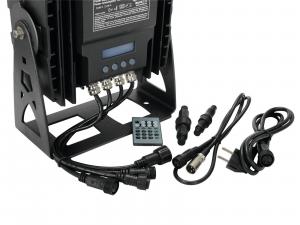

-Power connection: Mains Input Socket (M) 3-pin screw plug connector (M) IP Power supply cord with safety plug (M) (provided)
-Power out: 1 x 3-pin screw plug connector (F) IP
-Control: Stand-alone; IR remote control (provided); DMX
-LED: 60 x high-power 3 W 2in1 BCL WA (homogenous color mix)
Connectors
DMX connector types
other
Control
control channels, min
2 ch
control channels, max
2 ch
Electrical
power consumption watt, max
3.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
65
cooling
passive
Mechanical
weight
8.00 kg
width
344.00 mm
height
326.00 mm
length
140.00 mm
Optical
beam angle/zoom, min
45.00 °
beam angle/zoom, max
45.00 °
Number of light sources
60 pcs
wattage per light source
3.00 W
multichip LED
yes
COLD WHITE LED source
yes
shutter/strobe frequency, max
30 Hz
