Info | |
---|---|
order code |
50800360
|
product link | |
EAN |
4026397398809
|
Product Name |

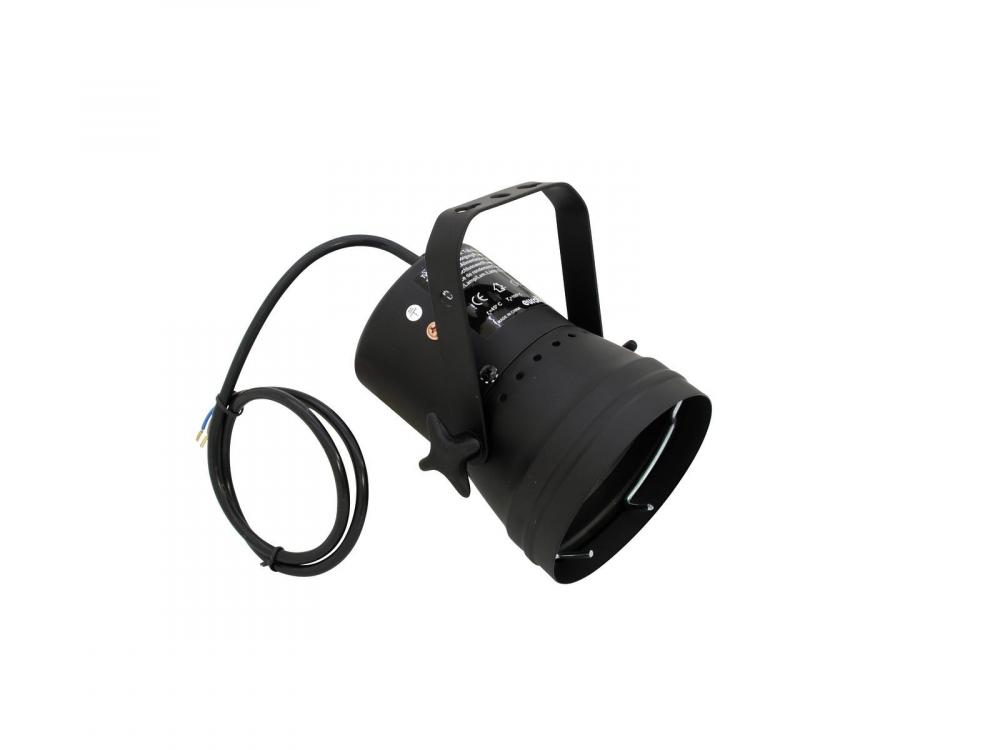

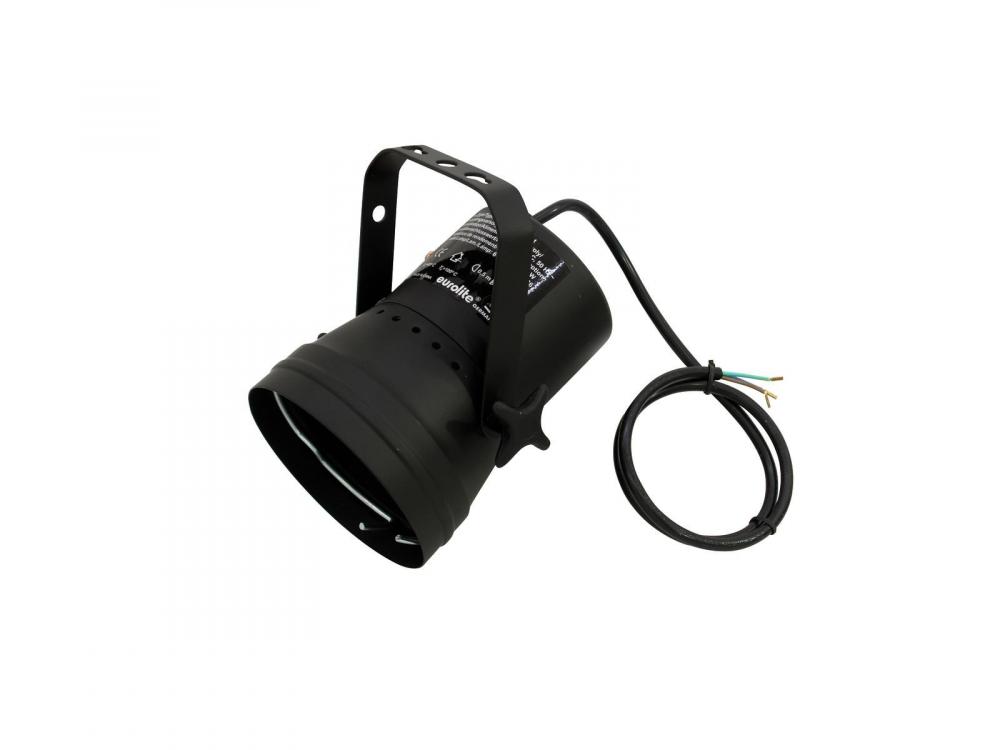

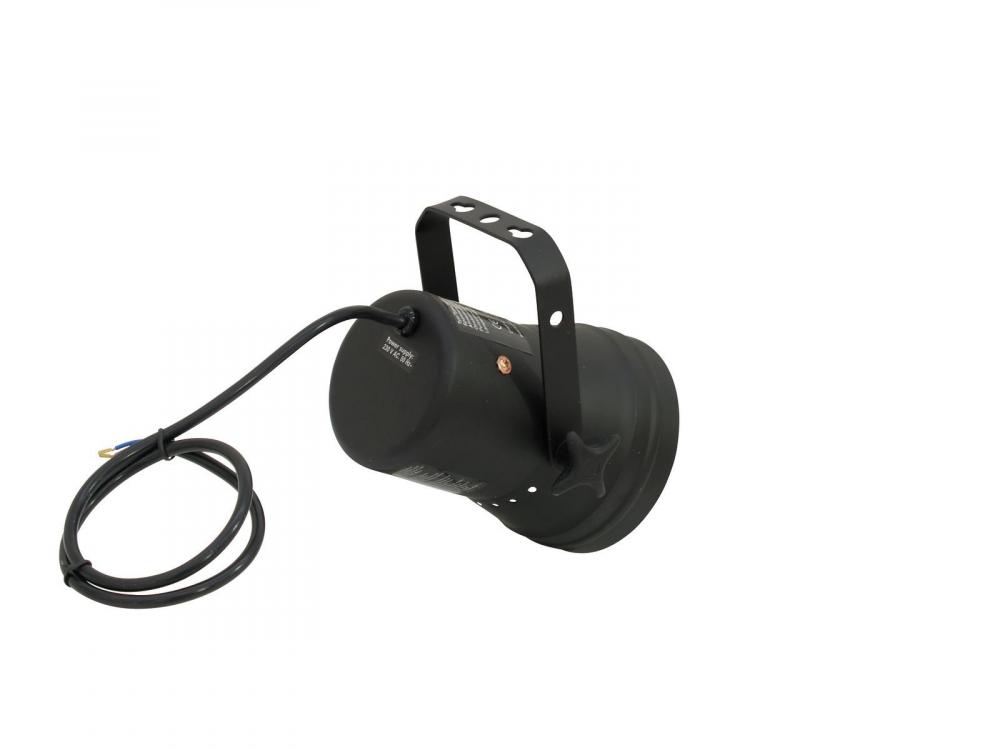

EUROLITE T-36 Pinspot with Cable, black
|
technical overview |
Power supply: 230 V AC, 50 Hz Dimensions: 160 x 150 x 170 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 1 kg Cooling fan: No, cooling by convection IP classification: IP20 Power consumption: 30,00 W Lamp type: Halogen lamp Width: 11,2 cm Depth: 16 cm Height: 17 cm Diameter: 11,2 cm Power connection: Fix Main input cable with open wires Power supply: 230 V AC, 50 Hz |
main features |
Pinspot for PAR-36 6 V/30 W lamp -Very narrow illumination angle -At a distance of 4 m there is projected a light circle with a diameter of 30 cm -Connection cable included -Power plug has to be ordered separately -Separately capsuled transformator chamber -Locking possibility at the mounting bracket -Color caps or color foils can be arranged in front -For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination -Interesting price levels for purchase of larger quantities -Available in silver or in black -Low power consumption -Case color: Black -Power connection: Fix Main input cable with open wires |
Electrical | |
power consumption watt, max |
30.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
cooling |
passive
|
Mechanical | |
weight |
1.00 kg
|
width |
150.00 mm
|
height |
170.00 mm
|
length |
160.00 mm
|
outer diameter |
112 mm
|
Optical | |
light source |
Halogen
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00092277.pdf |
