EUROLITE TP-36 Rotatable Spot

EUROLITE

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for EUROLITE TP-36 Rotatable Spot

Info
order code
50900480
product link
EAN
4026397389913
Product Name
EUROLITE TP-36 Rotatable Spot
technical overview
Power supply: 230 V AC, 50 Hz
Dimensions (L x W x H): 160 x 160 x 290 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 1,5 kg
Cooling fan: No, cooling by convection
IP classification: IP20
Power consumption: 30,00 W
Lamp type: Halogen lamp
Height: 29 cm
Depth: 16 cm
Width: 16 cm
Power connection: Fix Main input cable with open wires
Power supply: 230 V AC, 50 Hz
main features

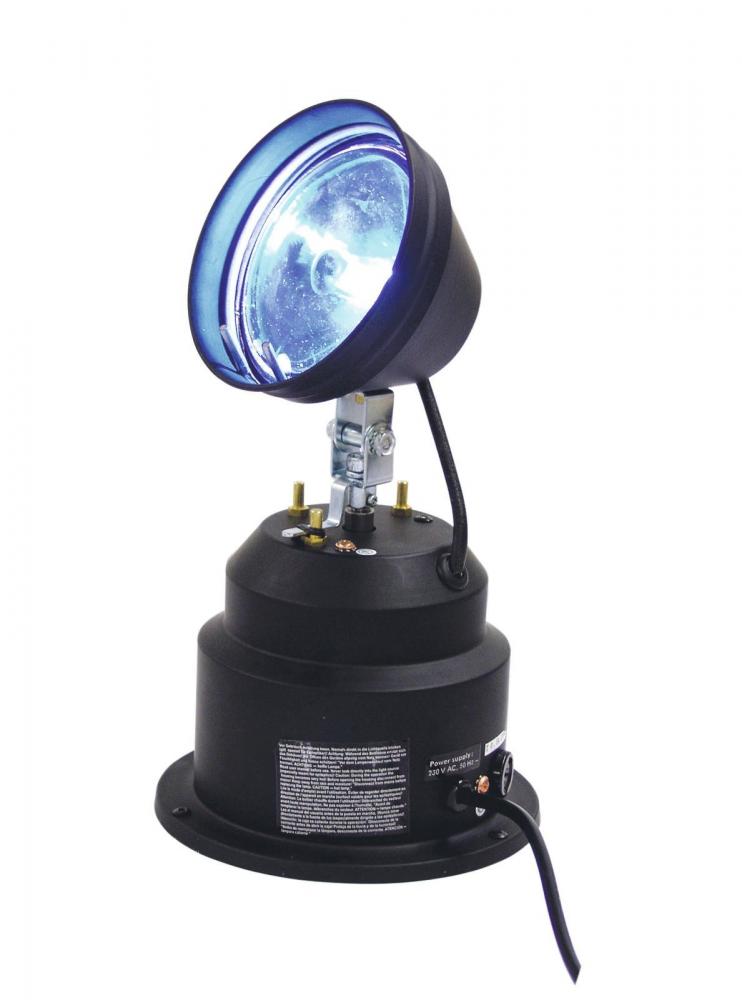

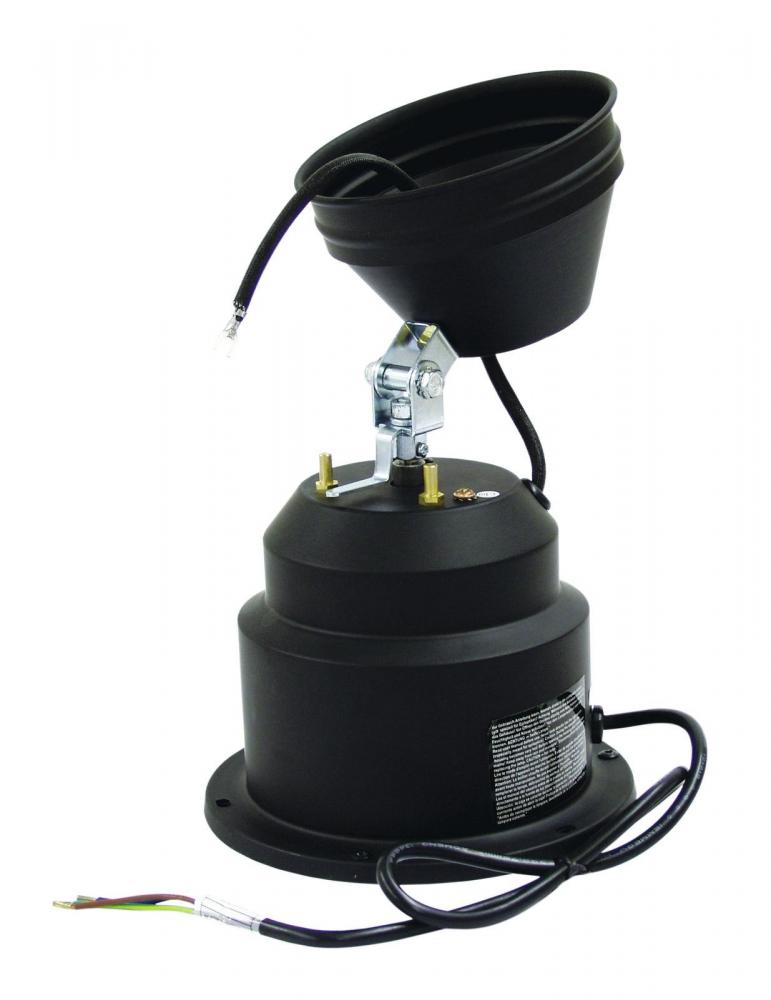

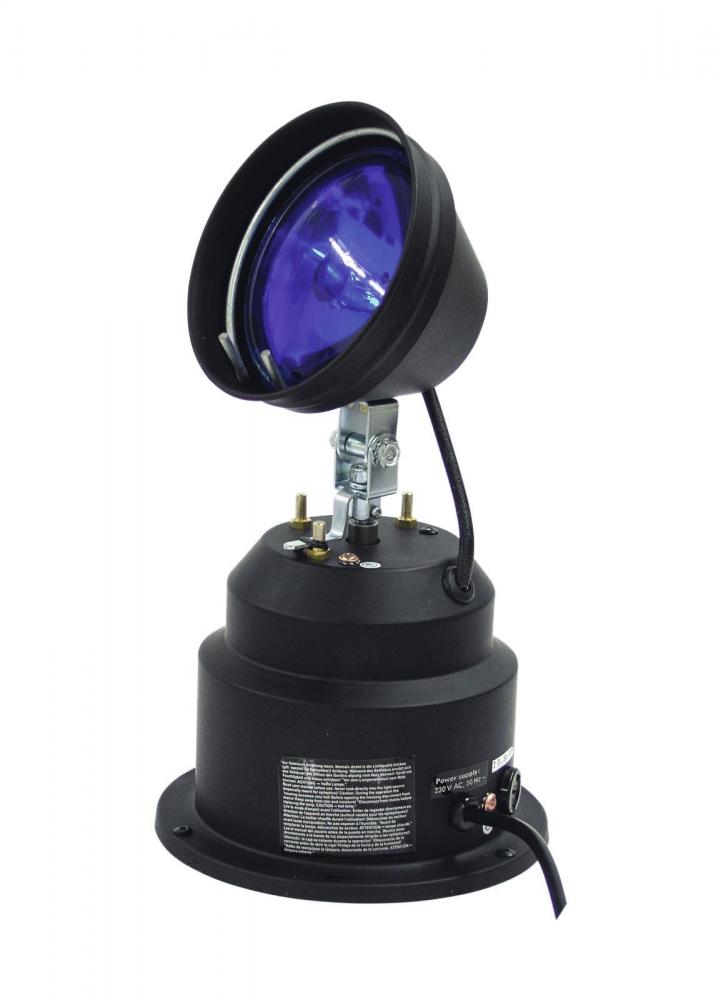

Rotatable pinspot for 6 V/30 W PAR-36 lamp
-Adjustable rotation angle (90°, 180°, 270°)
-In the adjusted rotation angle, the lamp head moves to the left and to the right
-The inclination angle of the lamp head can be adjusted
-Color-caps and color-foils can be attached
-With built-in transformer
-Low power consumption
-For 6 V/30 W PAR-36 lamp
-Power plug has to be ordered separately
-Case color: Black
-Power connection: Fix Main input cable with open wires
-Control: without
Electrical
power consumption watt, max
30.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
cooling
passive
Mechanical
weight
1.50 kg
width
160.00 mm
height
290.00 mm
length
160.00 mm
Optical
light source
Halogen

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00052623.pdf
