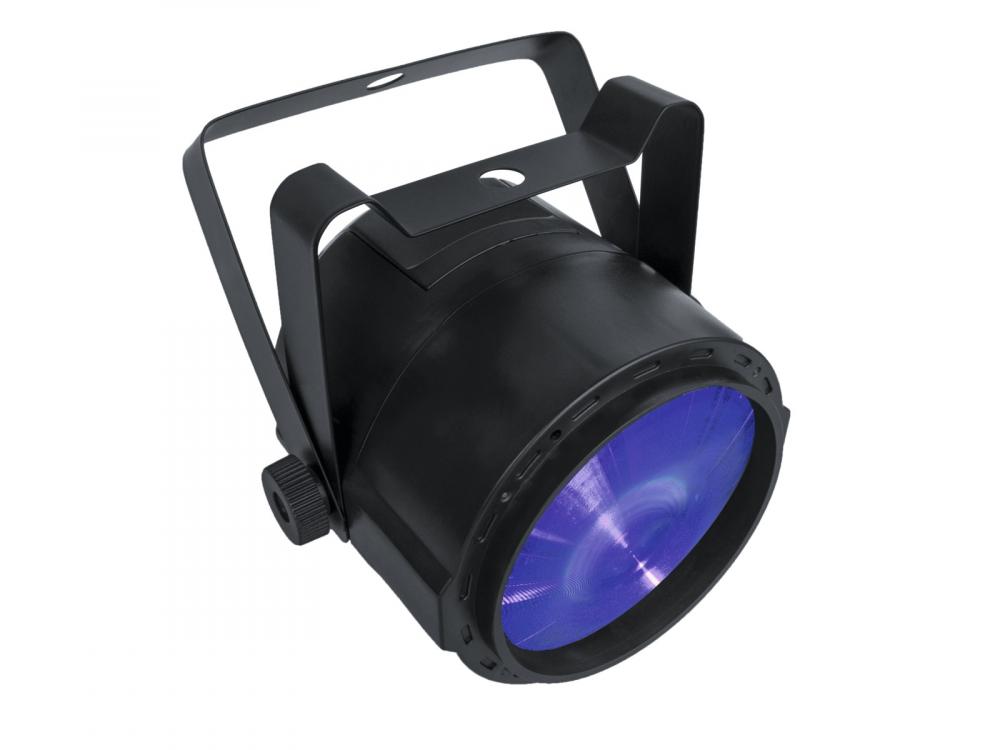

EUROLITE AKKU Mini PST-10 QCL Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE AKKU Mini PST-10 QCL Spot

Info
order code
51916155
product link
EAN
4026397613971
Product Name
EUROLITE AKKU Mini PST-10 QCL Spot
technical overview
Power supply: 5 V

main features
Pinspot with 10 W 4in1 LED in RGBW with DMX
-Equipped with one 8 W QCL LED in RGBW
-Small and compact, easy to transport, ideal for mobile use
-Operation via built-in rechargeable lithium-ion battery with min. 3 hours operating time
-Auto, music, master/slave and DMX mode
-Built-in auto and music show programs
-Functions: static colors, RGBW color blend, internal programs, color change with diverse settings, dimmer and strobe settings

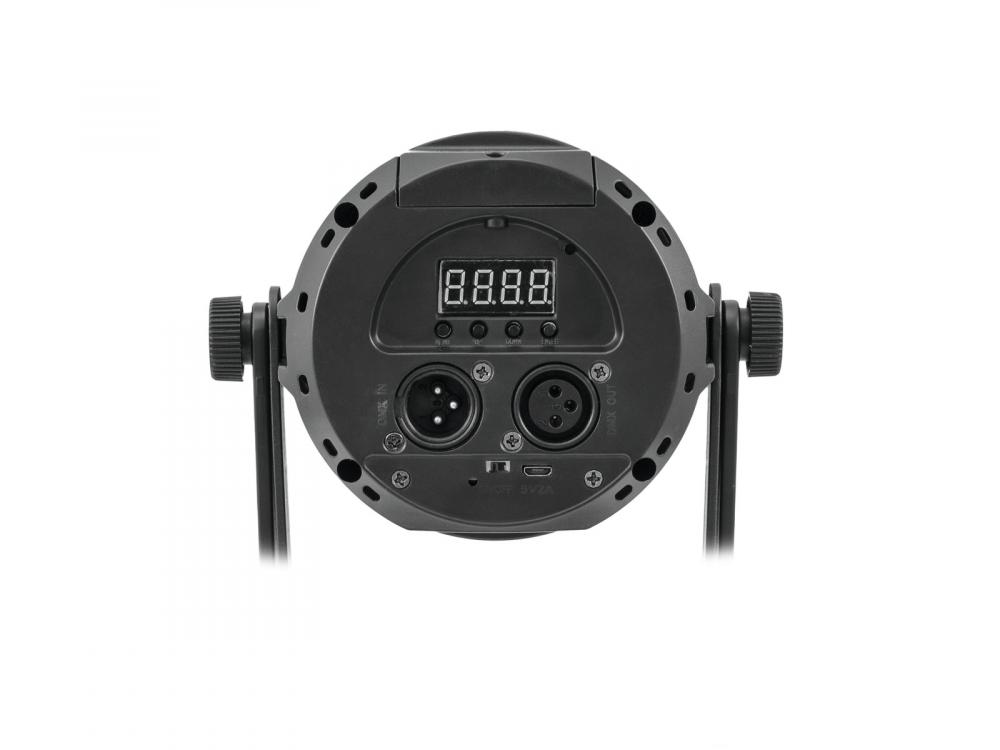

-Addressing via control panel with 4-digit LED display

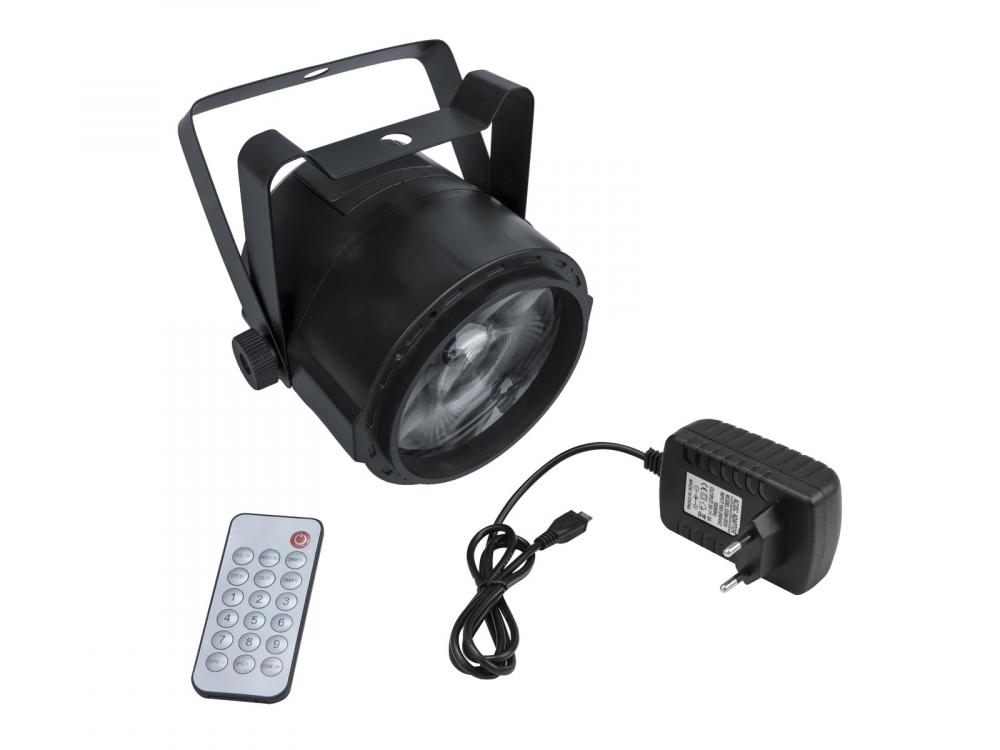

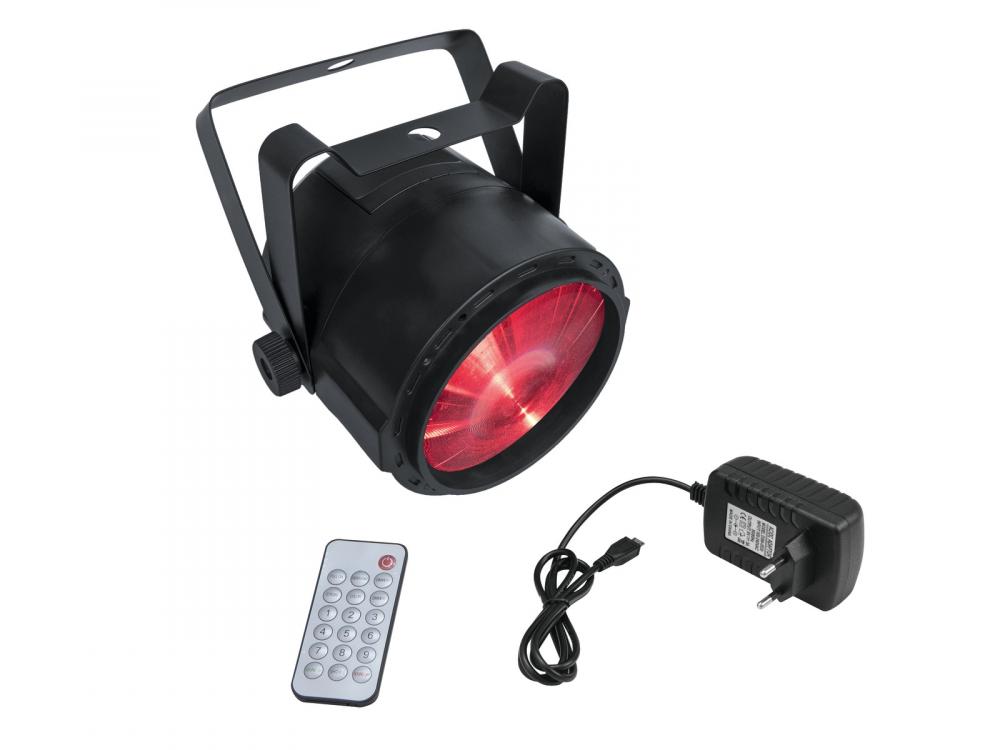

-Additional controlling possibility via EUROLITE IR-25 remote control; included in delivery
-Sound-control via built-in microphone
-Built-in charging function via included USB charger
-Can also be charged via USB power banks
-Mounting bracket for ceiling or wall mounting
-Additional bracket for floor use
-Switch-mode power supply for operation between 100 and 240 volts
-Case color: Black
-Effect: Strobe effect
-Power connection: Battery/battery pack; Mains Input Socket (M) Micro USB (F) mounting version Power supply cord with AC adapter (m) (provided)
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 1 x high-power 10 W 4in1 QCL RGBW
Connectors
DMX connector types
3pin
Control
control channels, min
6 ch
control channels, max
6 ch
Electrical
power consumption watt, max
10.00 W
IP rating
20
cooling
active
Battery recharge time (max)
3.00 h
external PSU
yes
Mechanical
weight
0.60 kg
width
162.00 mm
height
156.00 mm
length
117.00 mm
Optical
light source
LED
Number of light sources
1 pcs
wattage per light source
10.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00110225.pdf
