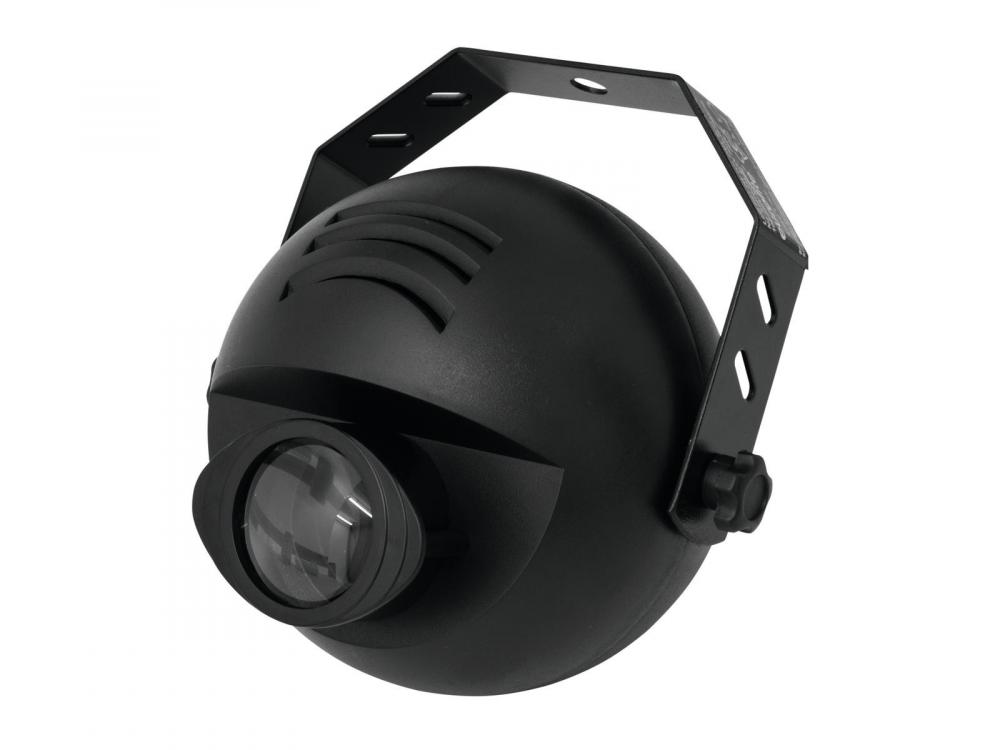

EUROLITE LED PST-9W TCL DMX Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED PST-9W TCL DMX Spot

Info
order code
51916200
product link
EAN
4026397403718
Product Name
EUROLITE LED PST-9W TCL DMX Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 5
DMX connection: 3.5 mm stereo jack plug
LED number: 1
LED type: 9 W RGB (3in1)
Beam angle: 6°
Dimensions: 135 x 165 x 170 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
DMX channels: 5
Beam angle: 6°
Weight: 0,67 kg
Power consumption: 9 W
IP classification: IP20
Lamp type: LED lamp
Height: 17 cm
Depth: 13,5 cm
Width: 16,5 cm
Power connection: Fix Power supply cord with safety plug (M)
LED: 1 x high-power 9 W 3in1 TCL RGB (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Narrow-beam pinspot with 9 W 3in1 LED in RGB and DMX
-DMX512 control via regular DMX controller (occupies 5 channels)
-DMX connection via optional 3.5 mm adapter cable
-1.3 m jack-jack cable with 3.5 mm stereo jack plugs for connecting one spot with another included in the delivery
-Dimmer and strobe settings via DMX
-Internal programs, color change speed and strobe effect adjustable via DIP switches
-Master/Slave function
-Fixed installation is recommended
-Ready for connection via power cord with safety-plug
-Switch-mode power supply for operation between 100 and 240 volts
-Case color: Black
-Effect: Strobe effect
-Power connection: Fix Power supply cord with safety plug (M)
-Control: Stand-alone; DMX
-LED: 1 x high-power 9 W 3in1 TCL RGB (homogenous color mix)
Control
control channels, min
5 ch
control channels, max
5 ch
Electrical
power consumption watt, max
9.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
fixed
Mechanical
weight
0.67 kg
width
165.00 mm
height
170.00 mm
length
135.00 mm
Optical
beam angle/zoom, min
6.00 °
beam angle/zoom, max
6.00 °
Number of light sources
1 pcs
wattage per light source
9.00 W
multichip LED
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
