EUROLITE LED THA-100F Theatre-Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED THA-100F Theatre-Spot

Info
order code
41602125
product link
EAN
4026397473674
Product Name
EUROLITE LED THA-100F Theatre-Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 1/3
DMX connection: 5-pin and 3-pin XLR
LED type: 100 W, warm white
LED number: 1
Color temperature: 3200 K
Beam angle: 10-50°
Dimensions (L x W x H): 370 x 265 x 335 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Cooling fan: Yes, temperature-controlled
IP classification: IP20
Beam angle: 10 - 50°
Power consumption: 120,00 W
Weight: 6,30 kg
Lamp type: LED lamp
Width: 33,5 cm
Length: 37 cm
Height: 26,5 cm
Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
DMX channels: 1; 3
LED: 1 x COB (chip-on-board) 100 W WW
Power supply: 110-240 V AC, 50/60 Hz
main features

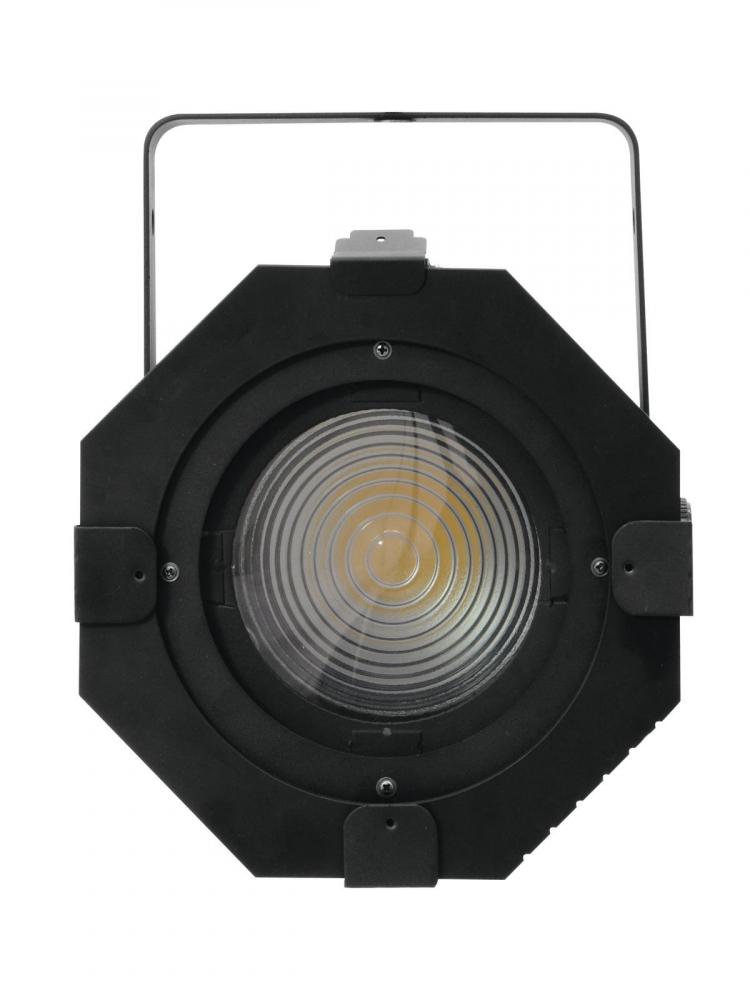

Fresnel spot (fresnel lens), 100 W warm white LED, extremely quiet, DMX
-Light impression of a conventional 750 W lamp
-Operable in stand-alone mode or via DMX interface
-DMX512 control possible via any commercial DMX controller (occupies 3 channels: brightness, flash-rate and dimmer curve settings)
-Comfortable addressing and setting via control panel with LCD display and four operating buttons
-Functions: dimmer, strobe effect, Master/Slave operation
-Dimming intensity and dimmer curves adjustable via control panel
-Manually adjustable zoom
-Feed-through output allows to power another device
-After every 8 devices, the fixtures must have a renewed connection with the power mains
-Compact housing in a striking design

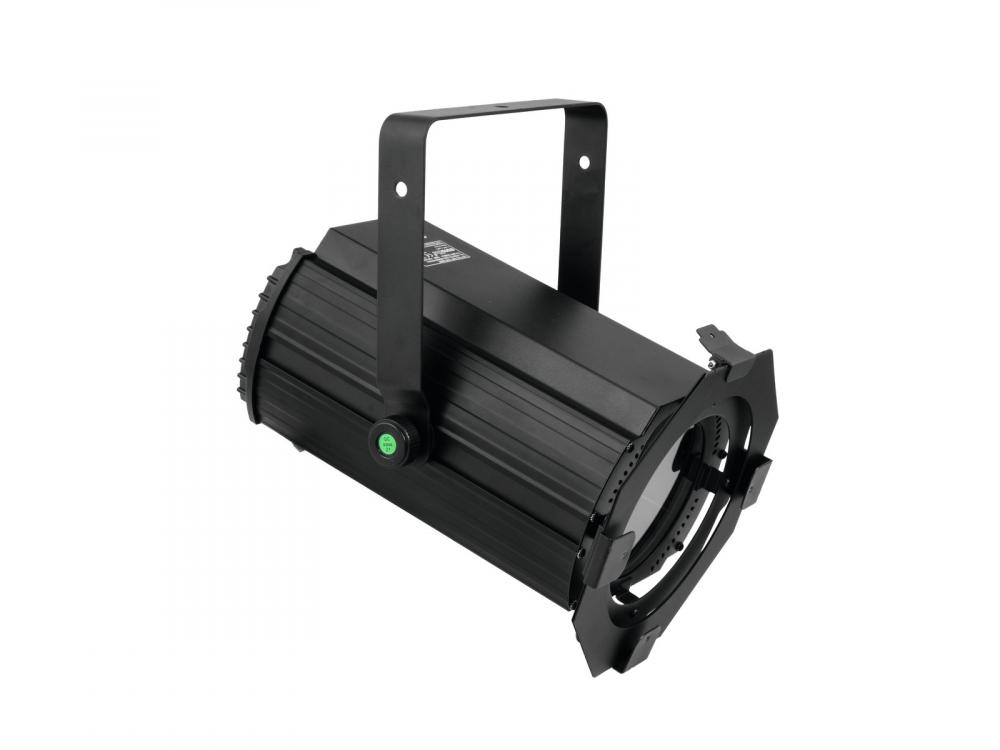

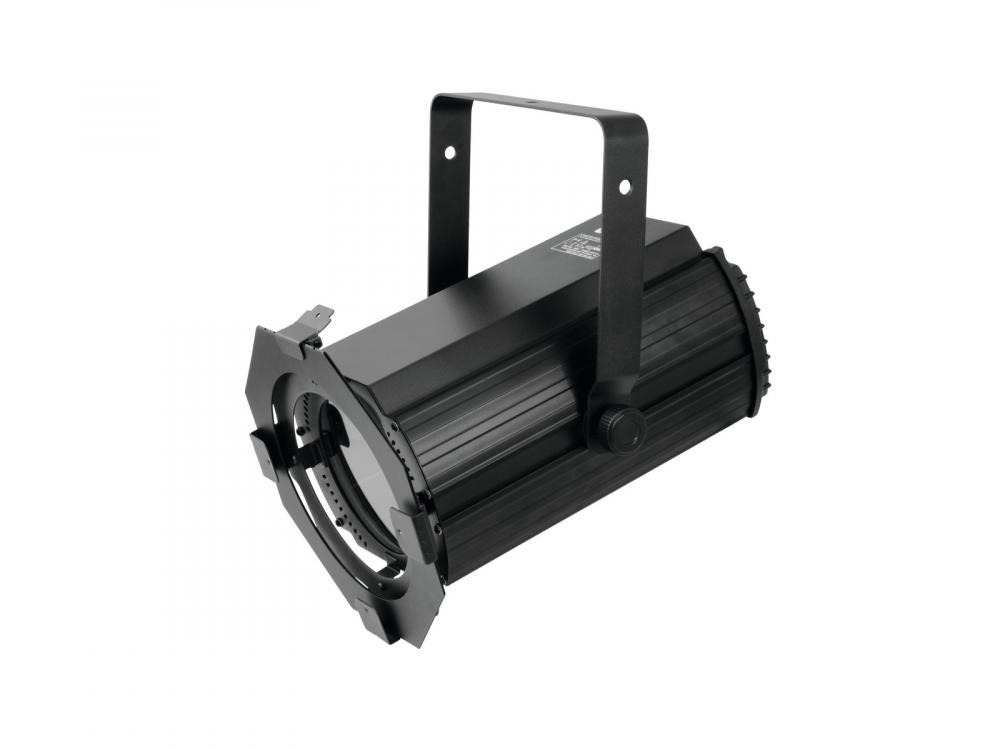

-Mounting bracket for installation on a stand or a crossbeam

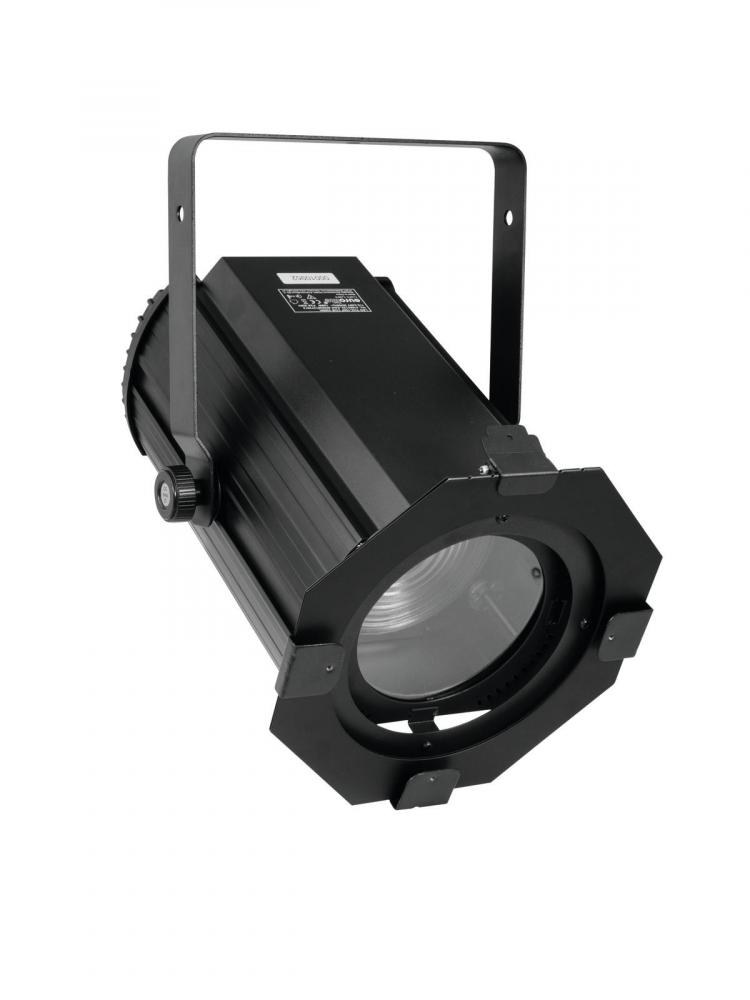

-With color filter frame
-Optional barndoors available
-Color temperature 3200 K
-Fan-cooled

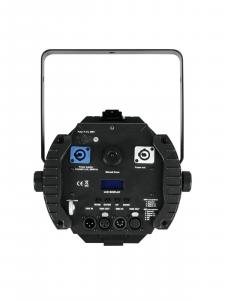

-Power connection via Neutrik PowerCon jack and included power cable with safety plug
-Switch-mode power supply
-Automatic power supply adaption between 110 and 240 volts without power selector
-Case color: Black
-Projection: flicker-free
-Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
-Power out: 1 x Powercon (Power out) gray, mounting version
-Control: Stand-alone; DMX
-LED: 1 x COB (chip-on-board) 100 W WW
Connectors
DMX connector types
both 3/5pin
Control
control channels, min
1 ch
control channels, max
3 ch
Electrical
power consumption watt, max
100.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
cooling
active
Mechanical
weight
6.30 kg
width
335.00 mm
height
265.00 mm
length
370.00 mm
Optical
beam angle/zoom, min
50.00 °
beam angle/zoom, max
10.00 °
light source
LED
light source color temperature
3200 K
color temperature, min
3200 K
color temperature, max
3200 K
Number of light sources
1 pcs
wattage per light source
100.00 W
WARM WHITE LED source
yes
