| Info | |
|---|---|
| order code |
41602140
|
| product link | |
| EAN |
4026397553468
|
| Product Name |

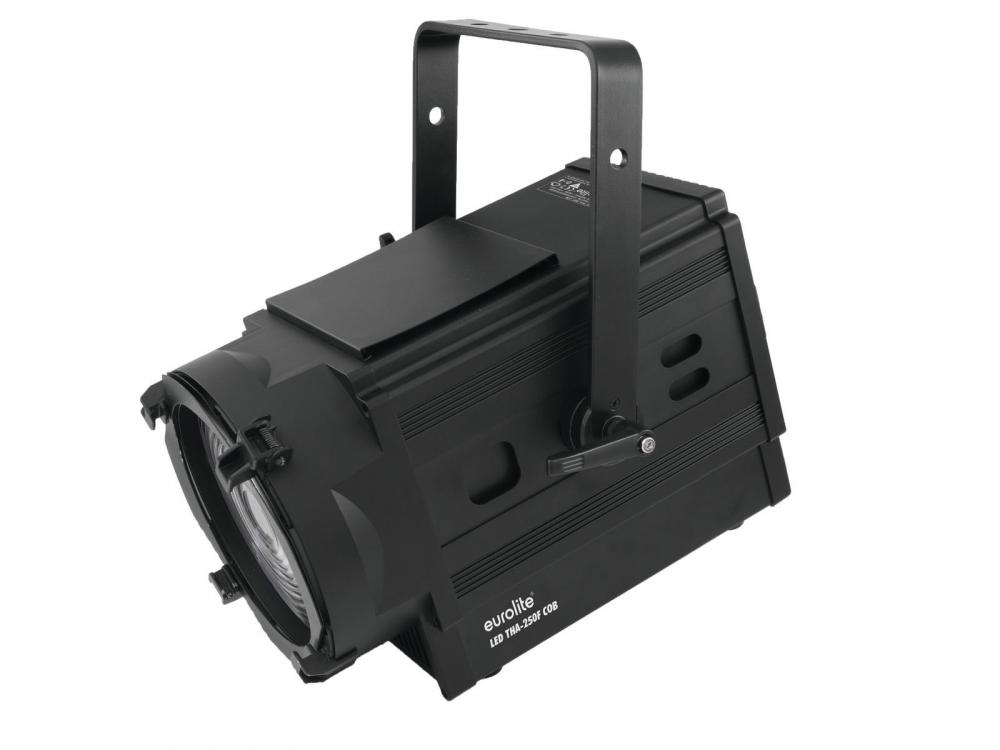

EUROLITE LED THA-250F Theater-Spot
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 3 DMX connection: 5-pin and 3-pin XLR LED type: COB 200 W, white LED number: 1 Color temperature: 2800 K Beam angle: 13-45° Dimensions (L x W x H): 457 x 336 x 399 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Cooling fan: Yes, temperature-controlled IP classification: IP20 Weight: 9,35 kg Power consumption: 265 W Lamp type: LED lamp Beam angle: 13 - 45° Width: 33,6 cm Length: 45,7 cm Equipment: Zoom motor-driven Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) DMX channels: 3 Height: 39,9 cm LED: 1 x COB (chip-on-board) 200 W WW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
| main features |

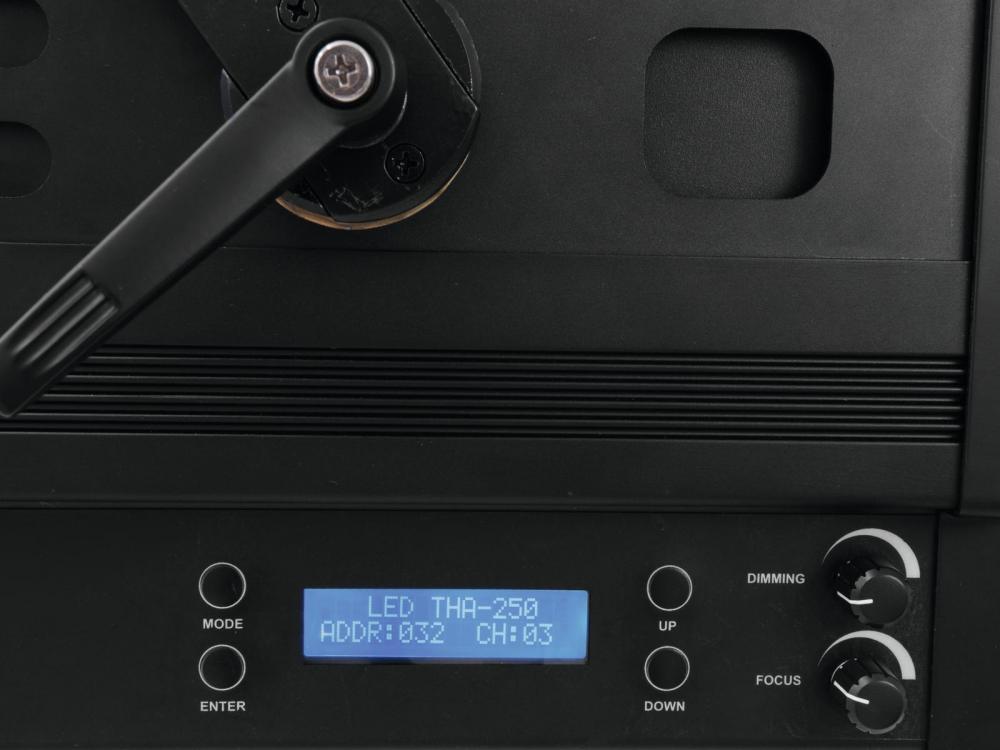

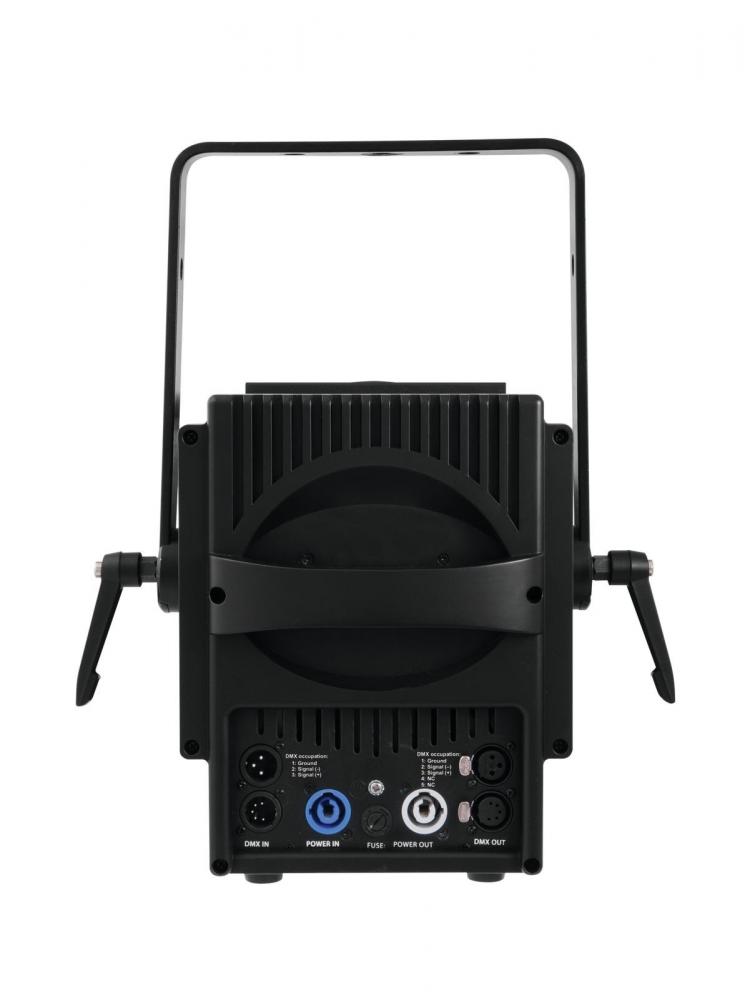

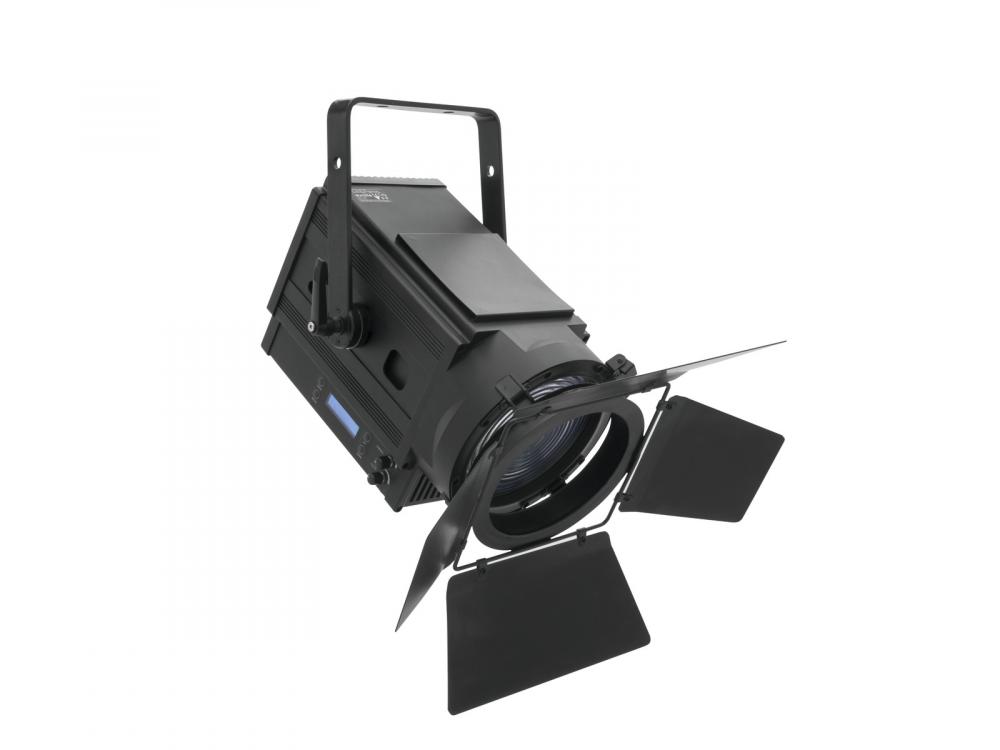

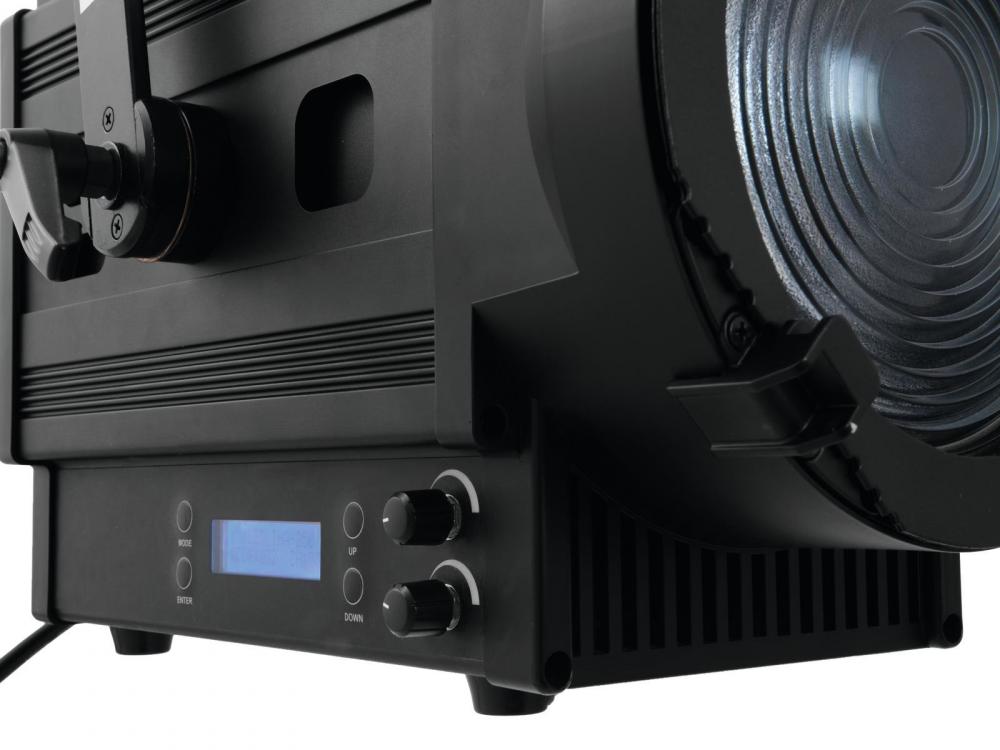

Fresnel spot (fresnel lens), 200 W warm white LED, CRI >90, quiet, DMX -DMX512 control possible via any commercial DMX controller (occupies 3 channels) -Comfortable addressing and setting via control panel with LC display and four operating buttons -Functions: dimmer, strobe effect, focus -Various dimmer curves adjustable via control panel -Motorized zoom adjustable via DMX or manually on the device -Equipped with a warm white COB LED (200 W) -CRI of >90 -Mounting bracket for installation on a stand or a crossbeam -Temperature-protected handle -Additional rubber feet when the spot shall be positioned on the floor -Barndoors included in delivery -Supports RDM (Remote Device Management) -Fan-cooled -Power connection via Neutrik PowerCon jack and included power cable with safety plug -Switch-mode power supply for operation between 100 and 240 volts -Feed-through output allows to power up to 8 devices -Color rendering index (CRI) more than: 90 Ra -Case color: Black -Projection: flicker-free -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Power out: 1 x Powercon (Power out) gray, mounting version -Control: RDM; Stand-alone; DMX -LED: 1 x COB (chip-on-board) 200 W WW (homogenous color mix) |
| Connectors | |
| DMX connector types |
both 3/5pin
|
| Control | |
| control channels, min |
3 ch
|
| control channels, max |
3 ch
|
| Electrical | |
| power consumption watt, max |
200.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| power input connector |
Powercon
|
| cooling |
active
|
| Mechanical | |
| weight |
9.35 kg
|
| width |
336.00 mm
|
| height |
399.00 mm
|
| length |
70.00 mm
|
| Optical | |
| beam angle/zoom, min |
45.00 °
|
| beam angle/zoom, max |
13.00 °
|
| light source |
LED
|
| light source color temperature |
2800 K
|
| color temperature, min |
2800 K
|
| color temperature, max |
2800 K
|
| Number of light sources |
1 pcs
|
| wattage per light source |
200.00 W
|
| WARM WHITE LED source |
yes
|
