| Info | |
|---|---|
| order code |
41602080
|
| product link | |
| EAN |
4026397565218
|
| Product Name |
EUROLITE LED THA-40PC Theater-Spot bk
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 1/2 DMX connection: 3-pin XLR LED type: 57 W, warm white LED number: 1 Color temperature: 3100 K Beam angle: 11-37° Dimensions (L x W x H): 275 x 205 x 250 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 3,6 kg Cooling fan: No, cooling by convection IP classification: IP20 Power consumption: 40 W Beam angle: 11 - 37° Depth: 25 cm Width: 20,5 cm Length: 27,5 cm Power connection: Fix Power supply cord with safety plug (M) DMX channels: 1; 2 LED: 1 x COB (chip-on-board) 57 W WW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
| main features |

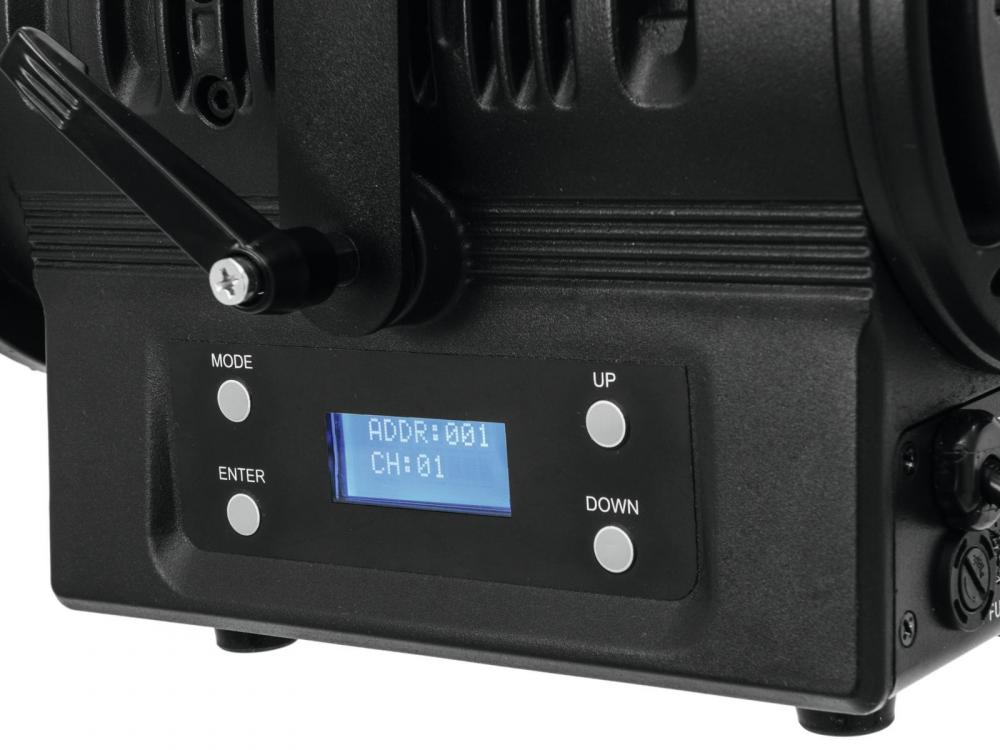

Fanless PC spot (DMX), 57 W LED in warm white, color rendering index (CRI) >90 -DMX-controlled operation or stand-alone operation with Master/Slave function -DMX512 control possible via any commercial DMX controller (occupies 2 channels) -1 or 2 DMX channels selectable -Comfortable addressing and setting via control panel with LC display and four operating buttons -Functions: dimmer, strobe effects -Different dimmer curves and dimmer speed (step response) adjustable -Equipped with one 57 W WW LED -CRI of >90 -Color temperature 3100 Kelvin -With a plano-convex lens -Supports RDM (Remote Device Management) -Manual, stepless zoom -Metal housing in black or white -Mounting bracket for installation on a stand or a crossbeam -Locking possibility at the bracket -Additional rubber feet when the spot shall be positioned on the floor -Rotatable barn doors and color filter frame included in the delivery -Ready for connection via power cord with safety-plug -Switch-mode power supply for operation between 100 and 240 volts -Color rendering index (CRI) more than: 90 Ra -Case color: Black -Projection: flicker-free -Power connection: Fix Power supply cord with safety plug (M) -Control: RDM; Stand-alone; DMX -LED: 1 x COB (chip-on-board) 57 W WW (homogenous color mix) |
| Connectors | |
| DMX connector types |
3pin
|
| Control | |
| control channels, min |
1 ch
|
| control channels, max |
2 ch
|
| Electrical | |
| power consumption watt, max |
57.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| power input connector |
fixed
|
| cooling |
passive
|
| Mechanical | |
| weight |
3.60 kg
|
| width |
205.00 mm
|
| height |
250.00 mm
|
| length |
50.00 mm
|
| Optical | |
| beam angle/zoom, min |
37.00 °
|
| beam angle/zoom, max |
11.00 °
|
| light source color temperature |
3100 K
|
| color temperature, min |
3100 K
|
| color temperature, max |
3100 K
|
| Number of light sources |
1 pcs
|
| wattage per light source |
57.00 W
|
| WARM WHITE LED source |
yes
|
