Info | |
---|---|
order code |
41602082
|
product link | |
EAN |
4026397621631
|
Product Name |

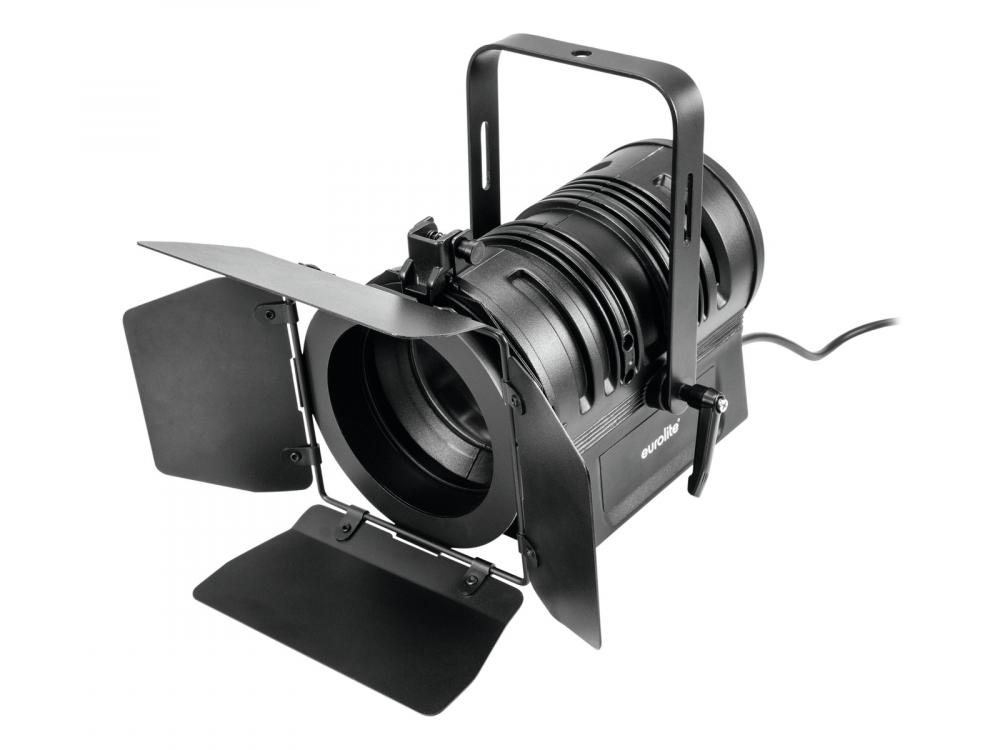

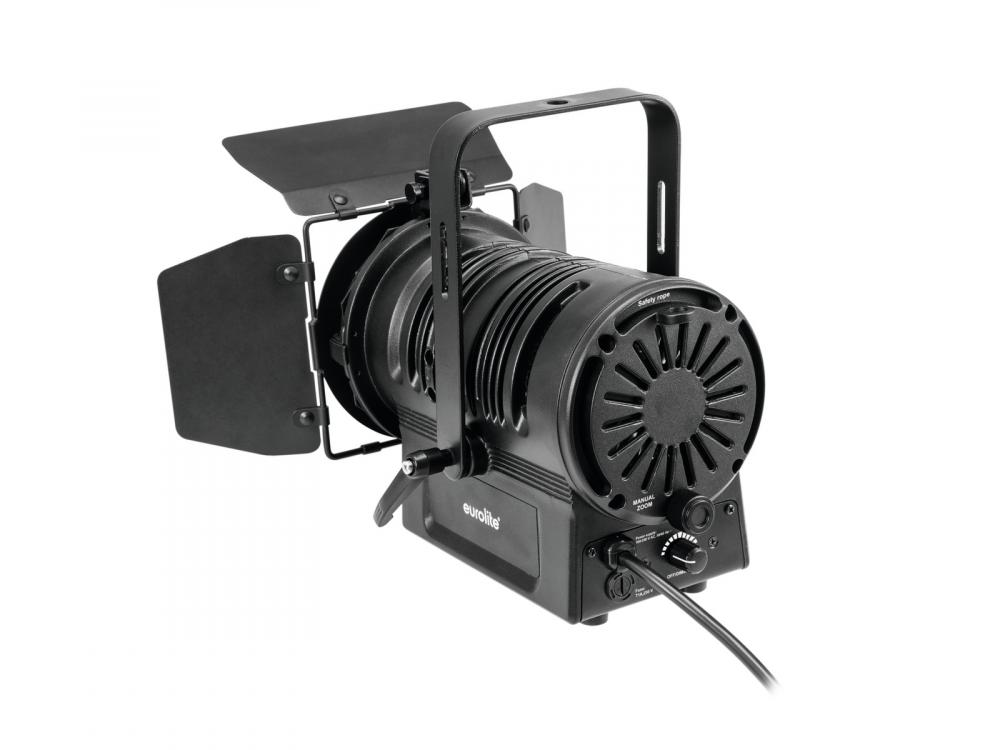

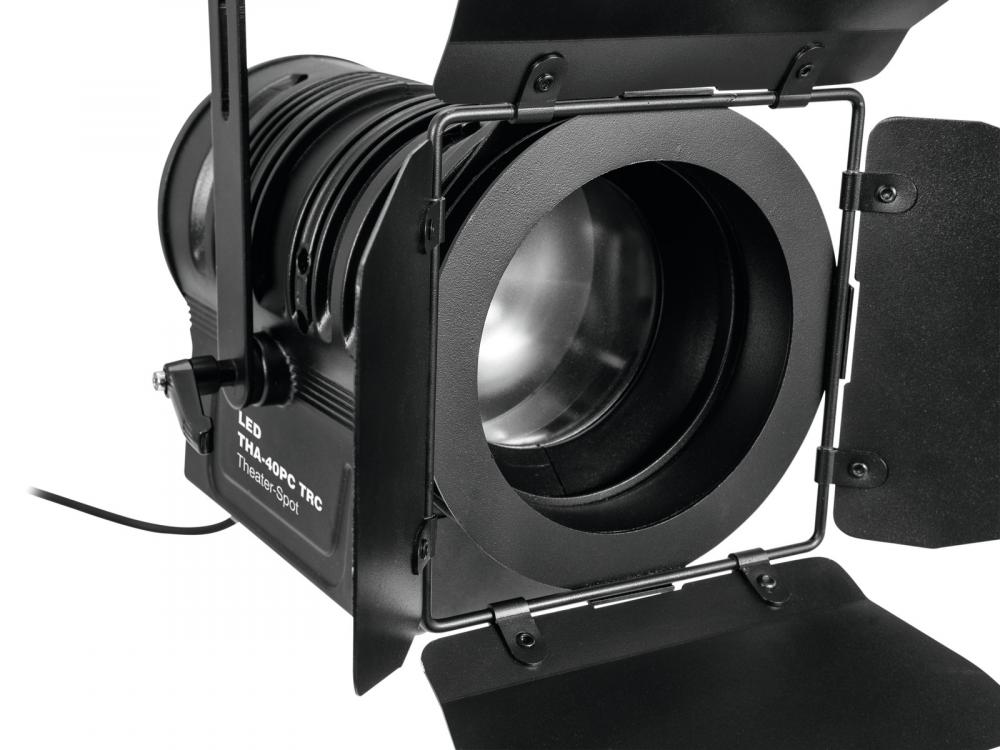

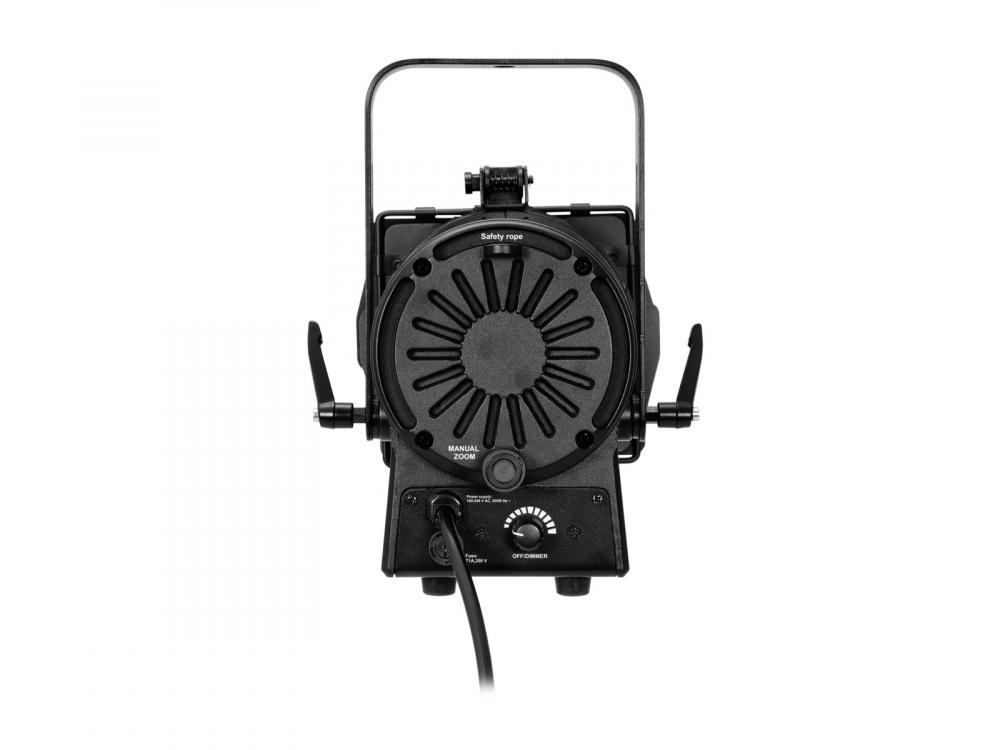

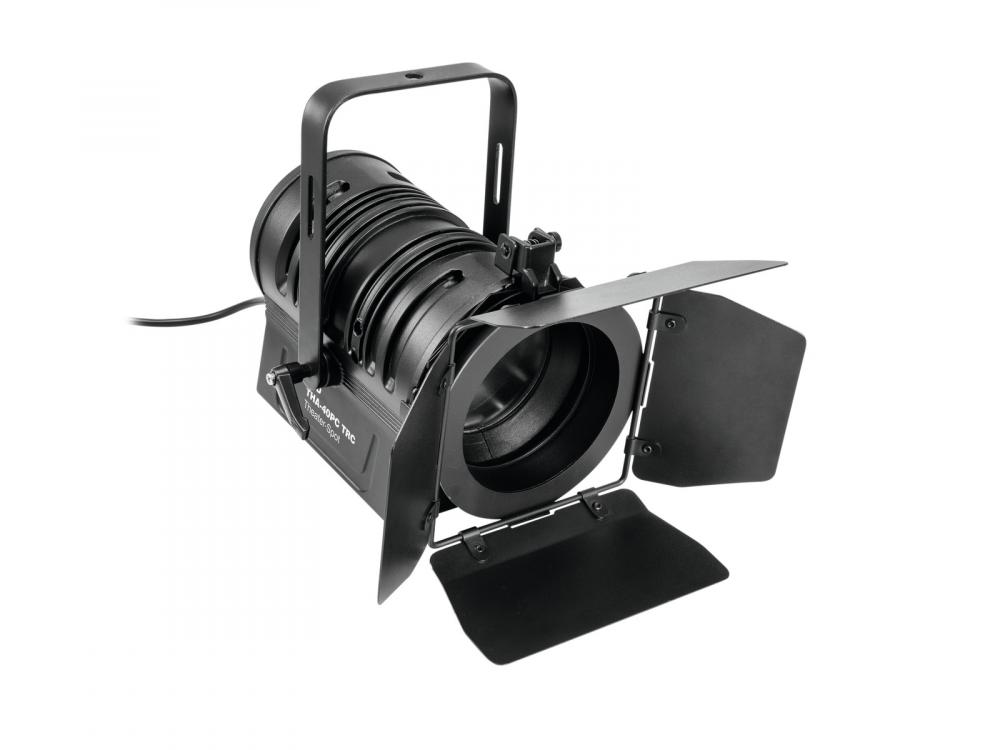

EUROLITE LED THA-40PC TRC Theater-Spot bk
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz LED type: 57 W, warm white Number of LEDs: 1 Color temperature: 3100 K Beam angle: 12-36° Dimensions (L x W x H): 260 x 200 x 250 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 3,7 kg Cooling fan: No, cooling by convection IP classification: IP20 Power consumption: 40 W Beam angle: 12 - 36° Depth: 25 cm Width: 20 cm Length: 26 cm Power connection: Fix Power supply cord with safety plug (M) LED: 1 x COB (chip-on-board) 57 W WW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
Fanless PC spot with 57 W white light LED, color rendering index (CRI) >90 -Perfect white light for trade fairs, exhibitions and shop lighting -Equipped with one high-power warm white 17 W LED -CRI of >90 -Color temperature: 3100 K -Stepless brightness regulation direct on the device -Dimming via external dimmer possible -Metal housing -Mounting bracket for installation on a stand or a crossbeam -Locking possibility at the bracket -Manual, stepless zoom from 12-36° -Additional rubber feet protect the device when positioned on the floor -Rotatable barn doors and color filter frame included in the delivery -Ready for connection via power cord with safety-plug -Switch-mode power supply for operation between 100 and 240 volts -Color rendering index (CRI) more than: 90 Ra -Case color: Black -Projection: flicker-free -Power connection: Fix Power supply cord with safety plug (M) -Control: Stand-alone -LED: 1 x COB (chip-on-board) 57 W WW (homogenous color mix) |
Electrical | |
power consumption watt, max |
57.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
fixed
|
cooling |
passive
|
Mechanical | |
weight |
3.70 kg
|
width |
200.00 mm
|
height |
250.00 mm
|
length |
260.00 mm
|
Optical | |
beam angle/zoom, min |
36.00 °
|
beam angle/zoom, max |
12.00 °
|
light source color temperature |
3100 K
|
color temperature, min |
3100 K
|
color temperature, max |
3100 K
|
Number of light sources |
1 pcs
|
wattage per light source |
57.00 W
|
WARM WHITE LED source |
yes
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00122169.pdf |
